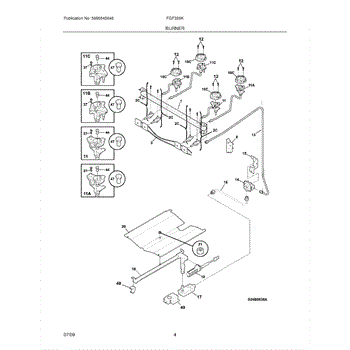

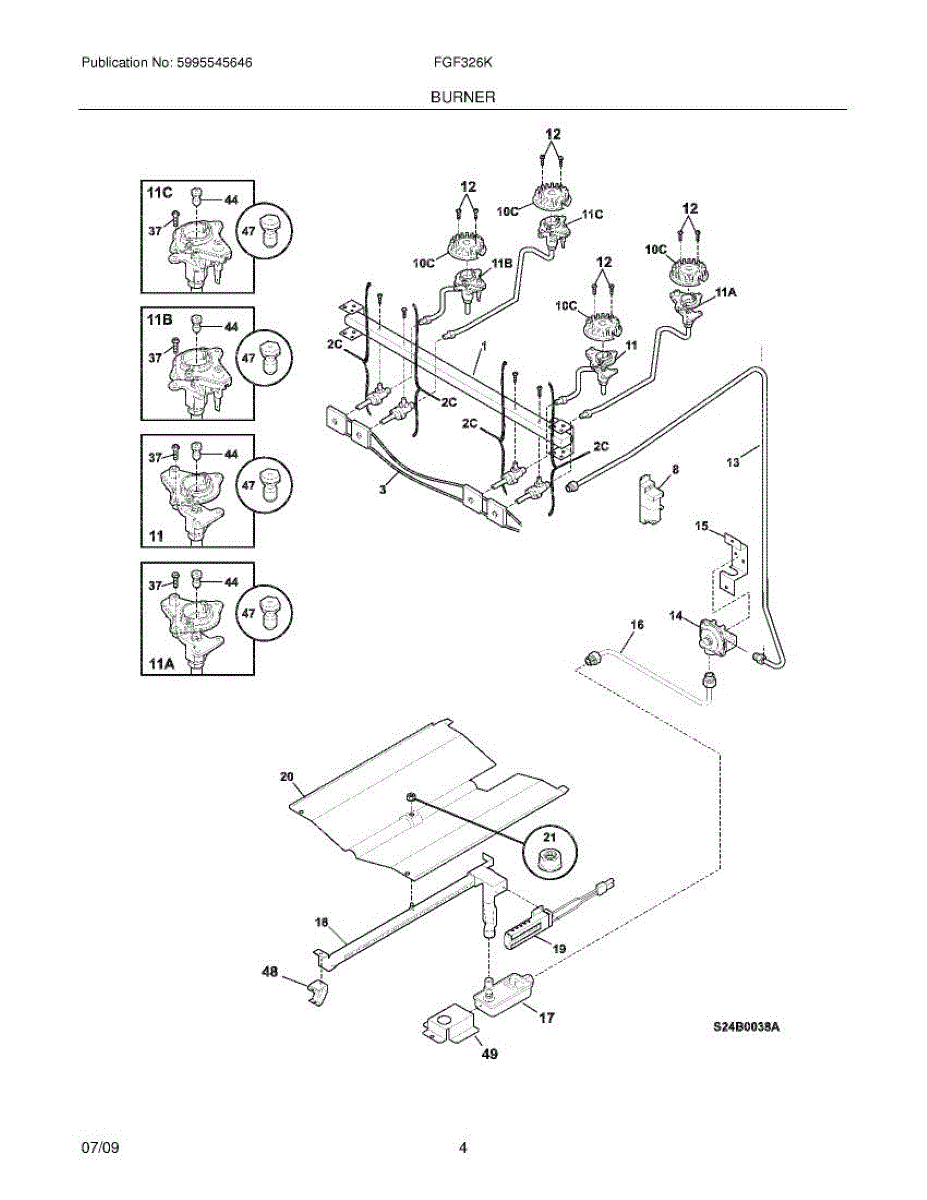

Parts for Frigidaire FGF326KSB: 05 - Burner Parts

This manifold pipe routes gas from the valve to your range burners. Replace yours if it's cracked, corroded, or leaking to restore safe fuel distribution.

Replace a gas range burner valve that's broken, stuck open, or causing hard-to-adjust flames. Moderate DIY repair requires raising the stovetop.

This wiring harness routes power and control signals between key components inside your range or wall oven. Replace a damaged harness to restore safe, reliable operation and prevent intermittent heat, shorts, or non-working burners and oven functions.

• Distributes electrical power and signals between controls, switches, heating elements/igniters, and safety components
• Maintains correct connector orientation and wire routing for dependable operation
• Typical symptoms: no heat in oven or on surface burners, intermittent operation, breaker tripping, or visible burnt/melted wiring
• Restores stable connections to reduce arcing and overheating

• Disconnect power at the circuit breaker; for gas ranges, also shut off the gas supply
• Label or photograph all connections and transfer one wire at a time to avoid miswiring
• Route the harness exactly as original; keep away from sharp edges and hot surfaces; secure with existing clips/ties
• If connectors don't match or any terminals are heat-damaged, stop and inspect mating components.

Gas burners won't ignite? A faulty spark module may be the issue. This part sends electrical current to igniters. DIY-friendly, takes minutes.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

Burner orifice meters gas flow to your range burner. Replace if clogged, damaged, or wrong size for fuel type conversion between natural gas and propane.

Burner orifice meters gas flow to your range burner. Replace if clogged, damaged, or wrong size for fuel type conversion between natural gas and propane.

Integrated ignitor and orifice assembly for gas range burners. Replace when ignitor electrodes are damaged, orifice threads are stripped, or mounting holes are worn.

Integrated ignitor and orifice assembly for gas range burners. Replace when ignitor electrodes are damaged, orifice threads are stripped, or mounting holes are worn.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Gas supply tube that connects the gas valve to the burner assembly on your range. Replace if cracked, corroded, or leaking to restore safe gas flow.

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

This is a replacement refrigerant/line connection tube that links the service valve to the regulator line, restoring a sealed pathway for proper cooling system operation. It fits systems using a 3/8" tube connection. What it does:

• Connects the service/stop valve to the regulator/line, maintaining a sealed refrigerant path
• Restores proper flow and pressure routing when the original tube is damaged, cracked, or leaking
• Commonly replaced for visible leaks, hissing at the valve area, or loss of cooling tied to a line break
• Works as a direct, single-piece tubing connector where a 3/8" connection is specified

• One tube to valve connector (3/8" tube)

• Installation requires appliance access and basic refrigeration line handling; tighten fittings to OEM torque specs and verify leak-free with an appropriate leak detector
• Wear safety glasses and gloves; avoid breathing refrigerant vapors and follow manufacturer service documentation

Oven won't light even with glowing igniter? Safety valve controls gas flow to burner. Moderately easy repair with gas line disconnect required.

Oven burner distributes gas and air mixture for even baking flames. Replace if rusted, corroded, or producing uneven flame patterns in your range.

Oven won't light or takes forever to heat? A weak igniter is usually the culprit. Moderately easy DIY repair—most complete it in 15-30 minutes.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Replacement instruction manual for your gas range. Includes operating procedures, care guidelines, and maintenance information for safe use.

Convert your gas range from natural gas to liquid propane with this LP conversion kit. Includes all necessary orifices for burners when switching fuel types.

Mounting bracket for gas ranges. Secures components inside your range. Replace if bent, broken, or missing to restore proper structural support.

Size: 8-18ab x 0.5 inch.

Secures and stabilizes internal components in your gas range. Replace this mounting bracket if cracked, bent, or worn to restore proper alignment.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate
