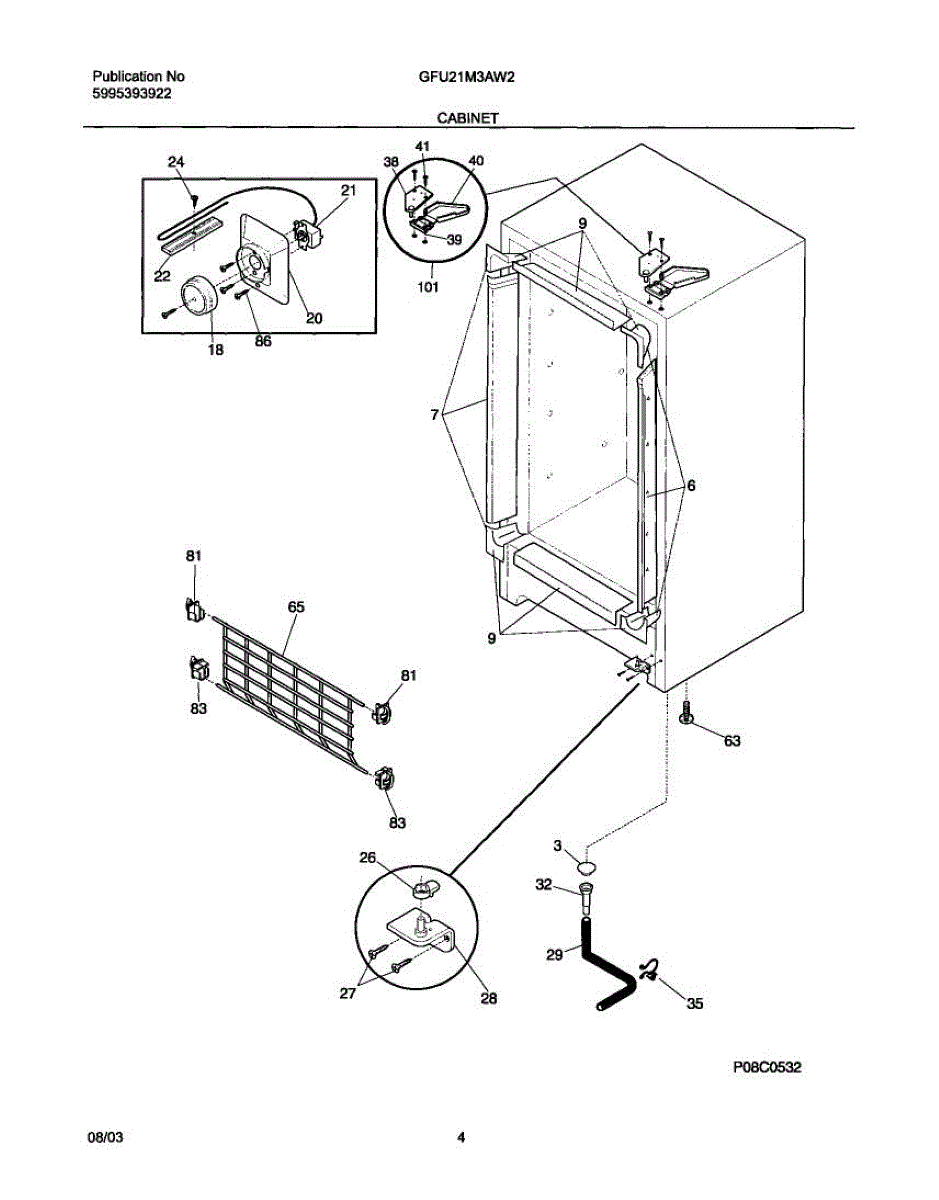

Parts for Gibson GFU21M3AW2: 05 - Cabinet Parts

A removable cap that covers the freezer's defrost drain hole, typically located at the bottom rear of the freezer compartment. Replace when water pools in the freezer, the cap is missing, or ice blocks the drainage system.

This kit provides structural support and sealing for freezer compartments, including corner reinforcements to maintain proper door alignment. Replace it if you notice air leaks around the freezer door, frost buildup, or if the door doesn't close properly.

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

Replacement control housing cover for freezers. Snaps over the control panel assembly. Replace if cracked, broken, or missing to restore appearance.

Freezer running constantly or not cold enough? This temperature control thermostat cycles the compressor to maintain proper temperature. DIY fix in 1 hour.

Secures the temperature sensing tube to the thermostat for accurate temperature control. Replace if loose, missing, or damaged to prevent erratic cooling.

Drain hose that channels wastewater from your freezer to the household drain. Replace if cracked, clogged, or leaking to restore proper drainage.

Alignment sleeve bushing maintains smooth part movement in freezers and refrigerators. Replace when worn to eliminate play and restore operation.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Protective cover that snaps over your freezer's door hinge. Replace if cracked, broken, or missing to restore a finished look and shield the hinge.

Replacement mounting screw for securing brackets, trims, covers, and components inside your refrigerator. Replace missing, stripped, or lost hardware.

Adjustable leveling foot installs at the bottom of your appliance to ensure stability and proper leveling. Replace if broken, cracked, or missing.

Support bracket for freezer drop-front basket or drawer. Installs at the top to secure the front panel. Replace if cracked, broken, or missing.

Foam insulation sleeve that wraps around the defrost drain tube. Replace if worn, missing, or damaged to prevent condensation and maintain proper insulation.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
