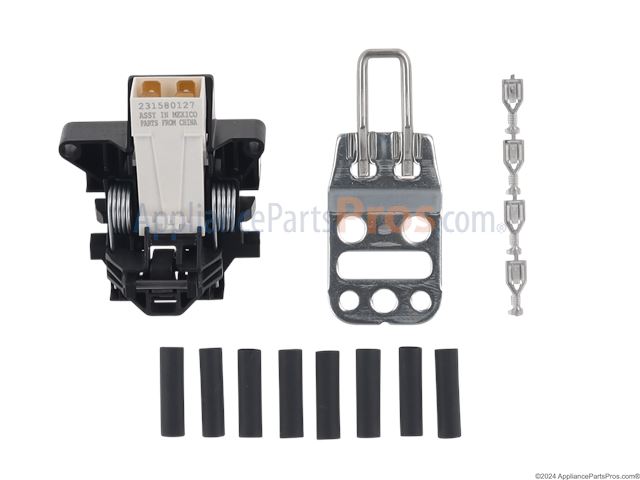

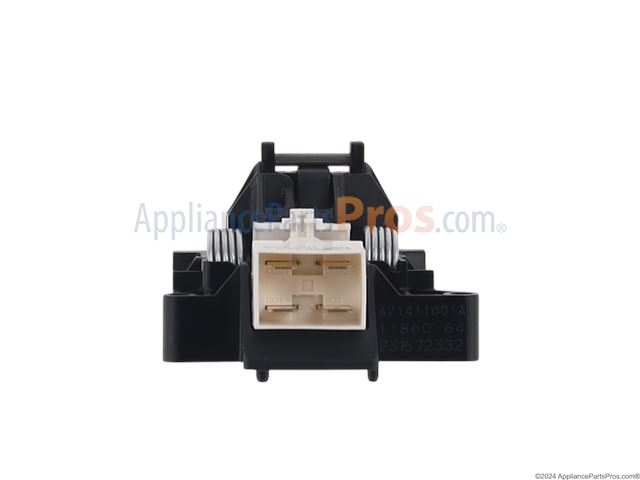

Frigidaire 5304525218 Dishwasher Door Latch Assembly OEM Part

With your part thanks

Bought a new door latch assembly, installed it in about 15 minutes and my dishwasher is up and running again.

The part i got from appliancepartspro did the trick and now my dishwasher is working as good as new again for about $20! I looked at a lot of other sites for this part and only found it here! Definately will be using this site again

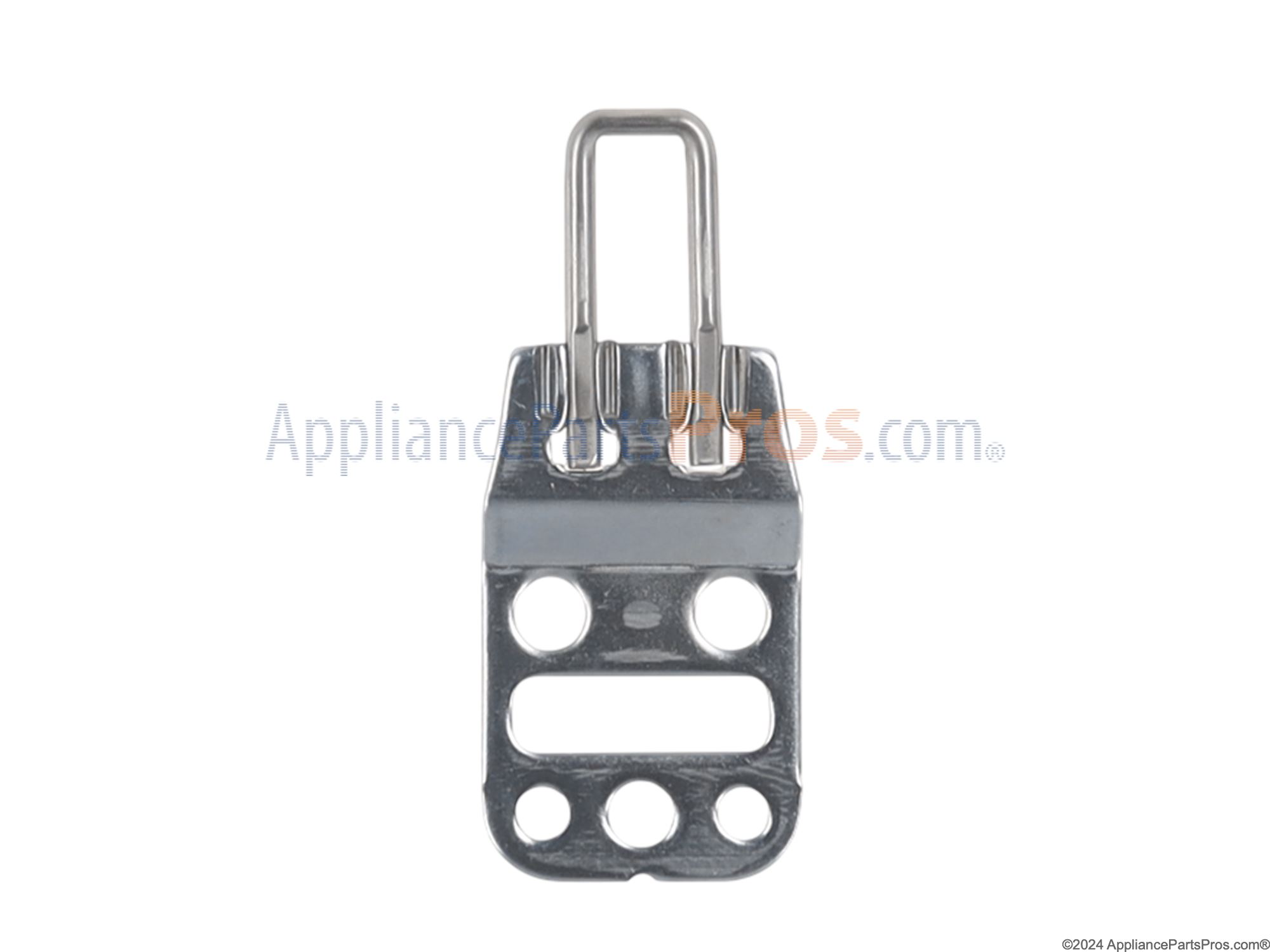

I have a Kenmore dishwasher and this is the second time doing this repair. The dishwasher door wouldn’t click in place when closed and the lights on the control panel wouldn’t turn on. My kids like to push on the handle to get onto the counter causing the latch assembly piece to break after awhile. It’s a simple fix with the hardest part being getting the front panel lined back up to put back on. I ended up not needing the strike piece but got it just in case it had been bent.

My Frigidaire DW periodically stopped mid-cycle before the detergent door opened. I could hold the cancel button for 3 seconds, the water in the tub would drain and then I could start a new cycle. This would happen every few days. After about two months, it quickly worked completely. There were lights on the controls and I could hear switch click sounds when I would press the Start button, but the DW would not run. I talked to APP and others about the issue. The general opinion was the main board needed to be replaced. I also saw in my research it could be the thermostat, the door latch, and/or the control button board. I bought all four parts to be safe. I replaced the main board and the DW did exactly the same thing. As I was swapping the original board back in, I noticed the white pair of wires going into the door latch were darkened. I moved the four wires going into the door latch and noticed the plastic connectors plugged into the latch made a crunching noise when wiggled. I took the latch off and found the wires and white plastic connectors to the latch were burnt and melted in places. Obviously, there was a short. I used the new latch part kit to fix the issue. The kit comes with new wire terminals and heat-shrink insulation. I cut off the original, burnt wire connectors, and a bit of darkened wire, crimped on the new terminals, used a heat gun to put on the insulation and reassembled the DW door. That solved it and the DW is operating normally.
