Ge WE4M255 Dryer Timer Resistor OEM Part

I Replaced the power resistor. The old resistor had a small burnt spot and tested infinity for resistance.The terminals were too small so I had to make new connector. Any 5000 ohm ceramic filled resistor would have worked also.

Replaced timer switch.

Replaced the heater coils (one of which was broken) by removing the top, front, and drum to access the heater coils. The plate that the heater coils mount to must be removed from the dryer as well to do the job correctly. I found it easier to unscrew the sensors from the plate and leave the wiring connected. You might as well change the belt while you have the drum out. To fix the automatic dry function I replaced the timer resistor. Very easy to access and swap out.

The timer and resister did the trick. The knob was a bonus as the old one had a broken ‘socket’ which wouldn’t always grab and spin the post on the timer. The resistor was a just-in-case easy replacement that could also cause cycle timing issues. Works like a charm and the timer is smooth as silk rather than harsh and clunky like the old, broken one.

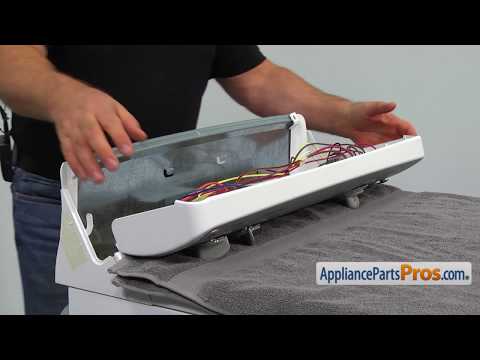

Based on your recommedation, replaced the timer resistor. The only deviation from your video, at least I don't remember it was mentioned, I needed a torx screw driver to remove screws from the top of the control panel. My old Chrysler uses torx screws so I have a set of drivers. I was going to replace the timer, your repair video suggested replacing the resistor. The resistor is much less expensive and easy to install. So I replaced the resistor. If it did not work then I would replace the timer. As it turned out it was the resistor. The timer works great again. Dryer loads get dry without several restarts. You saved me a pile of money on the timer. My wife is happy with the dryer. She also likes the door light working again. Thank you. Your repair videos are terrific.
