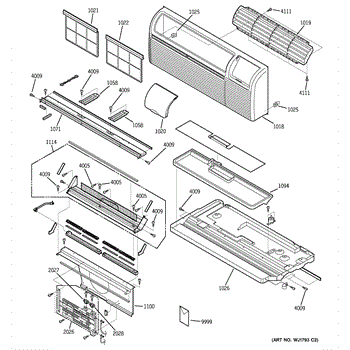

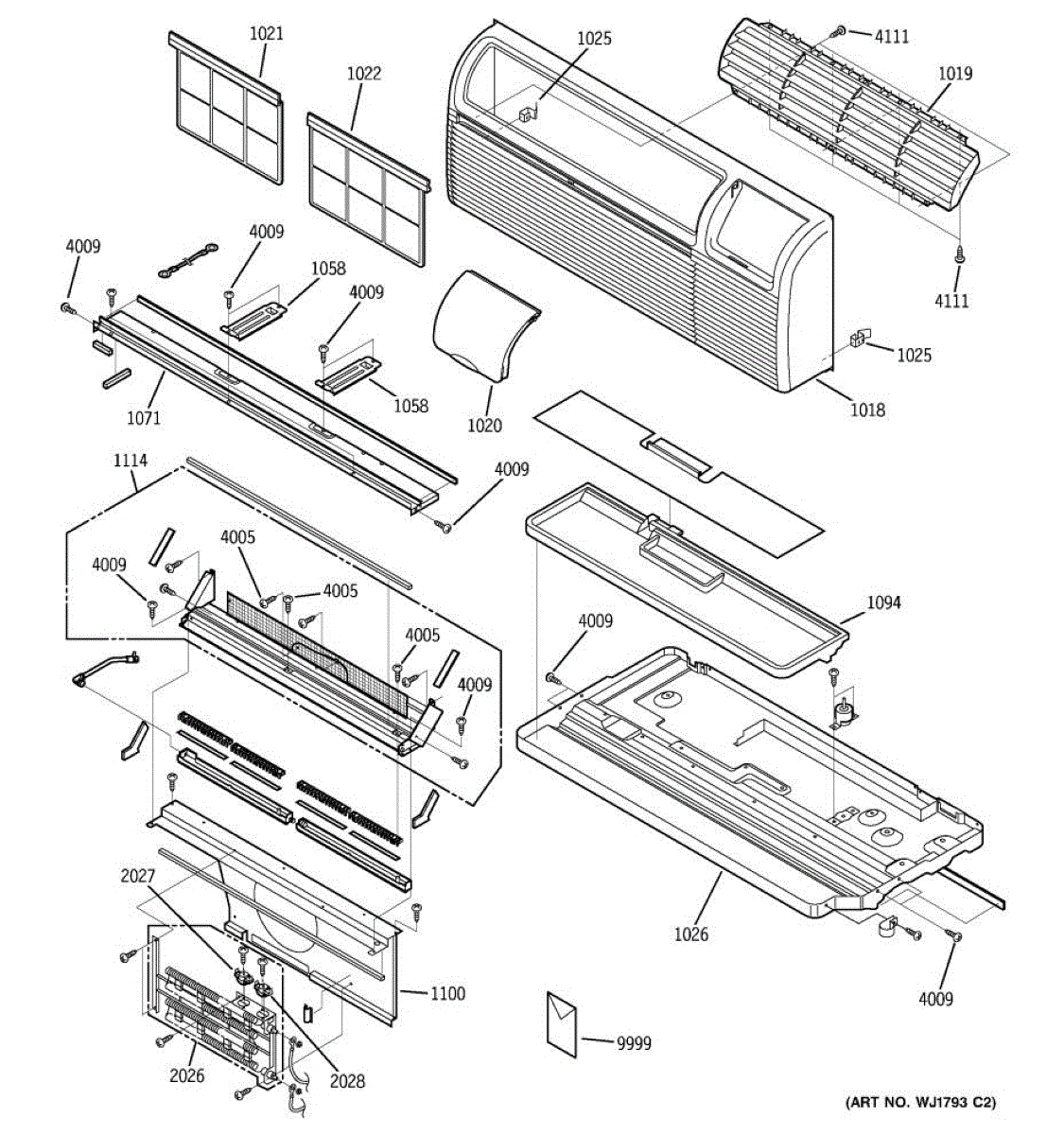

Parts for Ge AZ25E12E5CM1: 01 - Grille, Heater & Base Parts

Replacement front panel for air conditioners. Covers the front cabinet and provides mounting for console and door trim. Ideal when cracked, dented, or worn.

This control panel cover is used on many General Electric Zoneline air conditioners. Color: cream. It measures about 7-1/2 inches wide by 5-1/2 inches high.

Color: beige. It measures about 15 inches wide by 10 inches high.

General Electric Zoneline air conditioner filter. Color: beige. It measures about 17 inches wide by 10 inches high.

Replacement spring for room air conditioners. Installs internally to provide tension or support. Order if your original is broken, stretched, or missing.

This base pan assembly is the lower support pan that helps protect the appliance cabinet and catch minor leaks or debris. It restores the unit's stable mounting and helps keep internal components protected from spills. What it does:

• Provides the lower structural support for the appliance cabinet and components
• Channels and contains incidental water or debris away from electronics and controls
• Helps maintain proper alignment and stability of the appliance on the floor
• Reduces vibration transfer and helps prevent direct contact between components and the floor

• One base pan assembly as shown

• Disconnect power and water before beginning
• Check for secure mounting points and replace any worn fasteners or grommets during reassembly
• Inspect surrounding seals, hoses, and mounts for damage while the appliance is open
• Use manufacturer-recommended hardware and follow OEM disassembly/reassembly steps

Replacement drain tray for air conditioners. Collects condensation beneath the evaporator coil. Replace if cracked, rusted, or leaking water.

Support plate assembly for air conditioner units. Mounts and secures internal components. Replace if cracked, broken, or missing for proper stability.

This protector heater is a small heating element used with the overload/thermal protector in the motor or compressor circuit. It provides calibrated warmth so the protector trips correctly under heavy load, helping prevent overheating and protecting the unit. What it does:

• Works with the overload/thermal protector to ensure proper trip timing
• Helps prevent overheating and potential damage to the motor/compressor
• Common signs include repeated clicking near the compressor area or frequent overload trips

• 1 protector heater

• Disconnect power and safely discharge the run capacitor before servicing
• Photograph or label wiring and component orientation for accurate reassembly
• Install in the same position/orientation as the original with secure, insulated connections and proper wire routing
• Inspect the overload, start device, and terminals; replace any burnt or loose connectors to prevent repeat failures

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.
