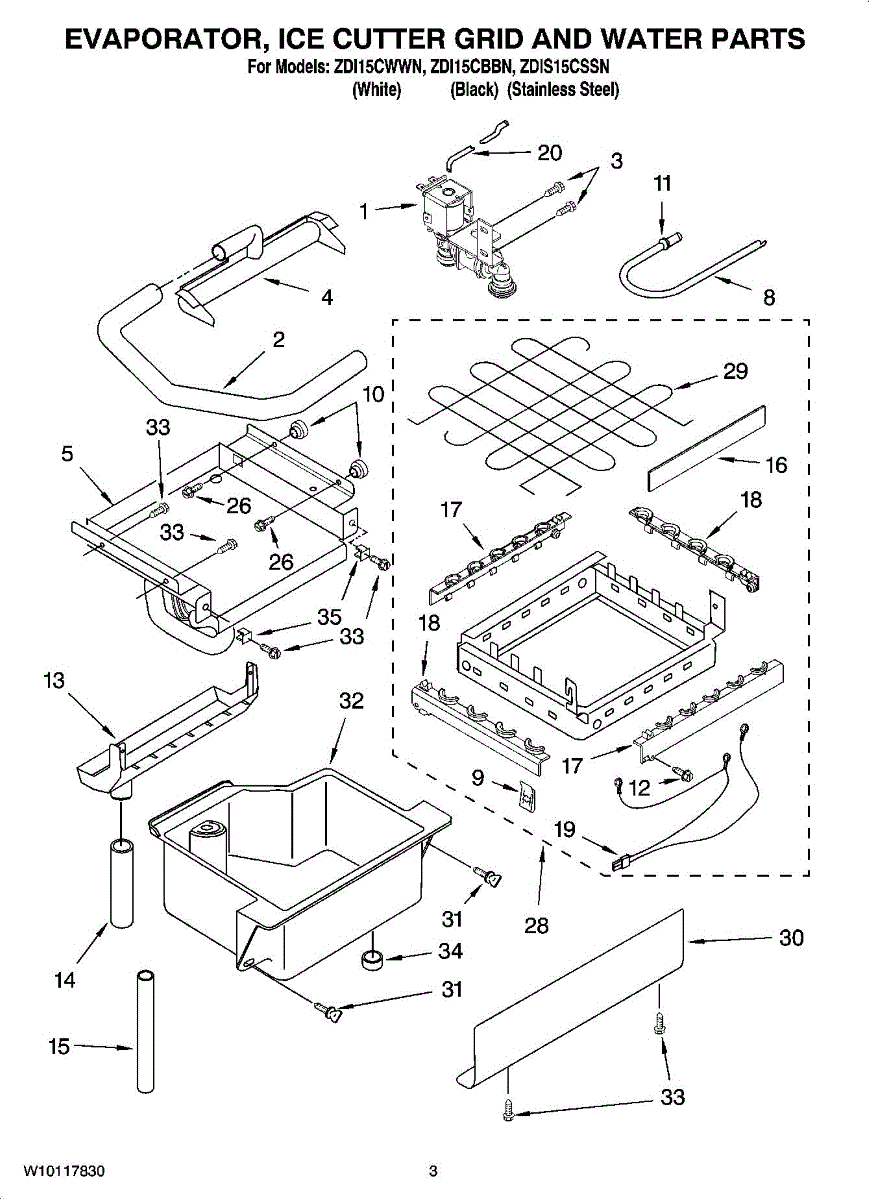

Parts for Whirlpool ZDIS15CSSN: 02 - Evaporator Ice Cutter Grid And Water Parts

The Valve is an OEM replacement part for Whirlpool built-in ice makers. Located within the water supply assembly, it controls the flow of water into the ice-making system.

Symptoms of a bad valve include:

• Slow or incomplete filling during harvest cycles
• Erratic or no ice production
• Water leaks around the valve area

Causes of failure can include mineral buildup over time restricting water passages or worn seals no longer regulating pressure as designed.

This Whirlpool part also fits ice systems from Maytag, Jenn-Air, Amana, and some Kenmore.

Replace your ice maker's water distribution tube if cracked, broken, or kinked. Routes water between internal components to restore proper flow.

Replacement screw that secures panels, brackets, and trim to appliance cabinets. Restores reliable hold when original hardware is stripped or missing.

Replace your ice maker's water distribution tube if cracked, broken, or kinked. Routes water between internal components to restore proper flow.

Ice maker not producing ice or evaporator pan bulging? This evaporator requires HVAC certification, vacuum pump, gauges, and refrigerant skills.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement fastener nut for securing panels, brackets, and components in various appliances. Needed when original nut is stripped, missing, or corroded.

This spacer maintains the correct distance between mating components in your appliance's assembly so parts align and operate smoothly. Replacing a worn or missing spacer can correct looseness, rubbing, or vibration-related noise.

• Holds a precise gap between parts for proper alignment and motion
• Prevents metal-to-metal contact and premature wear
• Helps reduce vibration, rattling, and scraping noises
• Common signs include misalignment, unusual gaps, looseness, or rubbing in the related assembly

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Refer to your model's diagram to locate the spacer's exact location and orientation
• Inspect related fasteners and bushings; replace if worn
• Do not overtighten hardware to avoid deforming the spacer

Push-on retainer secures shafts, studs, or trim panels in ice machines. Replace if fastener is missing, bent, or no longer holds components securely.

8-16 thread screw secures panels, brackets, and trim inside refrigerators, dishwashers, and ice makers. Replace if missing, stripped, or damaged.

This water slide reservoir replaces the cracked or damaged reservoir that channels water to the dispenser/ice system, restoring a secure pathway for water and preventing leaks or loss of dispenser function. What it does:

• Collects and directs water from the inlet to the dispenser/ice mechanism
• Seals the water pathway to prevent leaks or puddling inside the cabinet
• Helps maintain proper water flow to the dispenser and icemaking components
• Commonly replaced for visible cracks, leaks, or reduced dispenser performance

• One water slide reservoir

• High-level fit: installs in the dispenser/ice assembly per OEM diagram; verify placement before fastening
• Recommended safety: unplug or disconnect power and shut off water supply before service
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the plastic

This water reservoir tube routes chilled water from the refrigerator's internal reservoir to the dispenser line. Replacing a brittle, kinked, or cracked tube restores steady flow and helps stop leaks inside the fresh food compartment.

• Carries water between the reservoir and the dispenser supply path
• Maintains a sealed route to reduce internal leaks and air intrusion
• Damage or kinks can cause slow/no dispensing, intermittent flow, or water pooling near the crisper area
• Fresh tubing helps protect shelves and liners from water damage

• Disconnect power and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel/container to catch residual water
• Note original routing; avoid sharp bends and contact with moving or warm components
• Fully seat the tube into quick-connect fittings; tug gently to confirm it's locked

If your ice maker is leaking water or forming ice buildup around the fill area, a cracked or missing overflow tube may be the cause. Simple fix.

Replacement drawer slide guide for ice makers. Aligns and supports sliding bins for smooth operation. Replace if cracked, worn, or causing uneven movement.

This front-and-rear mounting bracket secures the appliance's front and rear assemblies to the cabinet, restoring proper alignment and support. Replacing a worn or damaged bracket helps reduce panel movement, rattling and improper fit. What it does:

• Provides a stable mounting point for the appliance's front and rear assemblies to maintain alignment and cabinet integrity.
• Stops or reduces rattling, vibration and shifting caused by loose or broken mounting hardware.
• Prevents gaps and misalignment that can affect doors, panels or controls.
• Fits original mounting locations to restore factory support.

• Bracket (front and rear)

• Disconnect power (and water if applicable) before starting any repair.
• Use the original fasteners or manufacturer-recommended hardware; do not force or bend the bracket.
• Inspect adjacent mounting points and fasteners for wear; replace any damaged parts.

Replacement mounting bracket for ice makers. Secures interior panels and trim for proper alignment. Needed when brackets are broken, cracked, or missing.

Connects the cutter grid to your ice maker's electrical system. Replace if wires are frayed, damaged, or connections are loose or corroded.

Size: 8-18 x 1 1/4 inch.

Ice maker not cutting cubes or ice sitting on cutter melting? Replace the cutter grid assembly. Easy 5-10 minute DIY repair—just two screws and two wires.

The Cutting Grid Kit is an OEM replacement part for Whirlpool ice machines. It cuts sheets of frozen ice into individual cubes, ensuring ice is available in uniform sizes. Each kit contains 8 screws and approximately 10 feet of wire. Two kits are required to replace both directions of the cutting grid to ensure comprehensive restoration of the ice maker’s functionality.

Causes of a bad Cutting Grid Kit can be attributed to mineral deposits buildup, which can obstruct the cutting process, electrical malfunctions affecting the heating element, or physical damage to the grid wires.

Symptoms of a malfunctioning Cutting Grid Kit are:

• Ice sheets not being cut into cubes
• Accumulation of uncut ice in the bin
• The heating element fails to warm up
• Inconsistent ice cube sizes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Protective cover for the cutting grid assembly in ice makers. Replace if cracked, broken, or missing to shield cutting blades and maintain proper alignment.

Size: 10-32 x 5/8 inch.

Size: 8-18 x 5/8 inch.

Small plastic cap that covers the drain fastener on your ice maker. Shields the screw and surrounding liner from moisture and debris. Replace when cracked or missing.

Push-in nut for ice makers. Secures internal components during assembly and repair. Replace if missing, stripped, or damaged during maintenance work.
