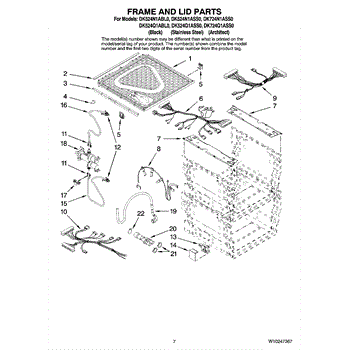

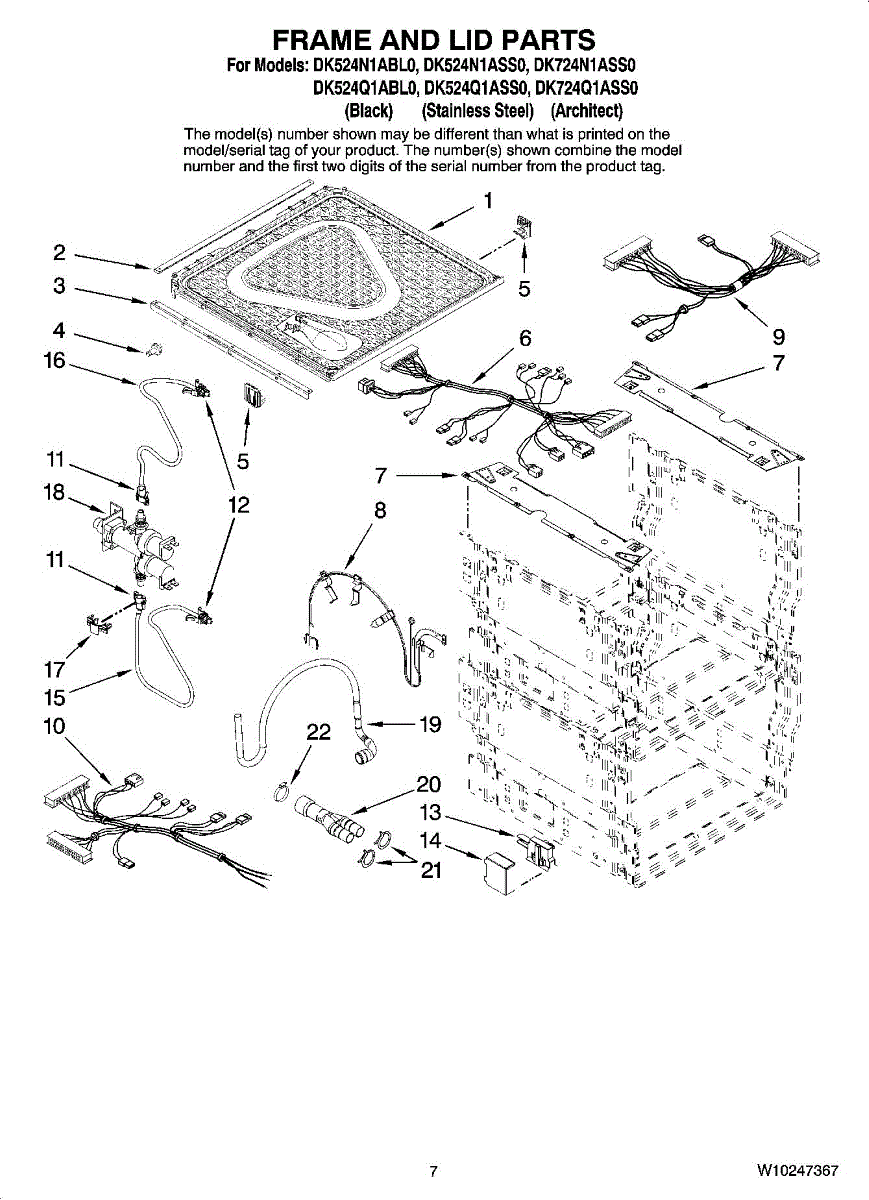

Parts for Whirlpool DK524Q1ABL0: 05 - Frame And Lid Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

This is the right side lid slider.

Dishwasher rack retainer clip that secures dish rack components in place. Replace if cracked, broken, or missing to restore proper rack stability.

Upper wire harness for dishwashers. Connects control board to upper rack components. Replace if wires are melted, damaged, or connectors are broken.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Fill hose assembly for dishwashers. Connects water supply to dishwasher tub. Replace if cracked, leaking, or damaged. Includes necessary fittings.

Fill hose assembly that connects the water inlet to your dishwasher's tub. Replace if cracked, leaking, or damaged to restore proper water flow.

This retainer secures small appliance components in place to prevent shifting and ensure reliable operation. Fits into designated slots or mounting points to hold trim, panels, or assemblies securely. What it does:

• Holds panels or components in position to prevent rattling or misalignment
• Keeps trims, clips, or lightweight assemblies secured during operation
• Helps maintain proper spacing for moving parts and seals
• Can reduce vibration-related noise when installed correctly

• One retainer as pictured

• Disconnect power or water to the appliance before beginning any repair
• Inspect the mating surfaces and replace any damaged clips or broken mounts
• Typically installs with simple push-fit, snap, or screw engagement; have basic hand tools on hand

Fix a dishwasher that won't fill with water by replacing the water inlet valve. This repair typically takes 30-45 minutes with basic tools.

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
