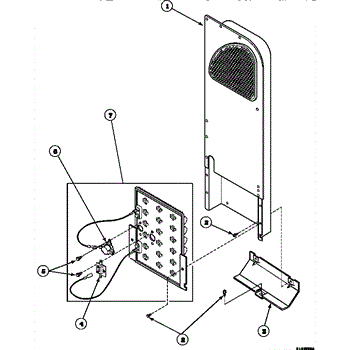

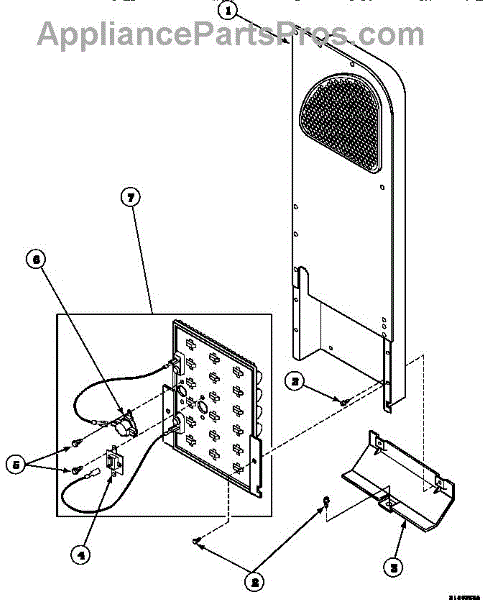

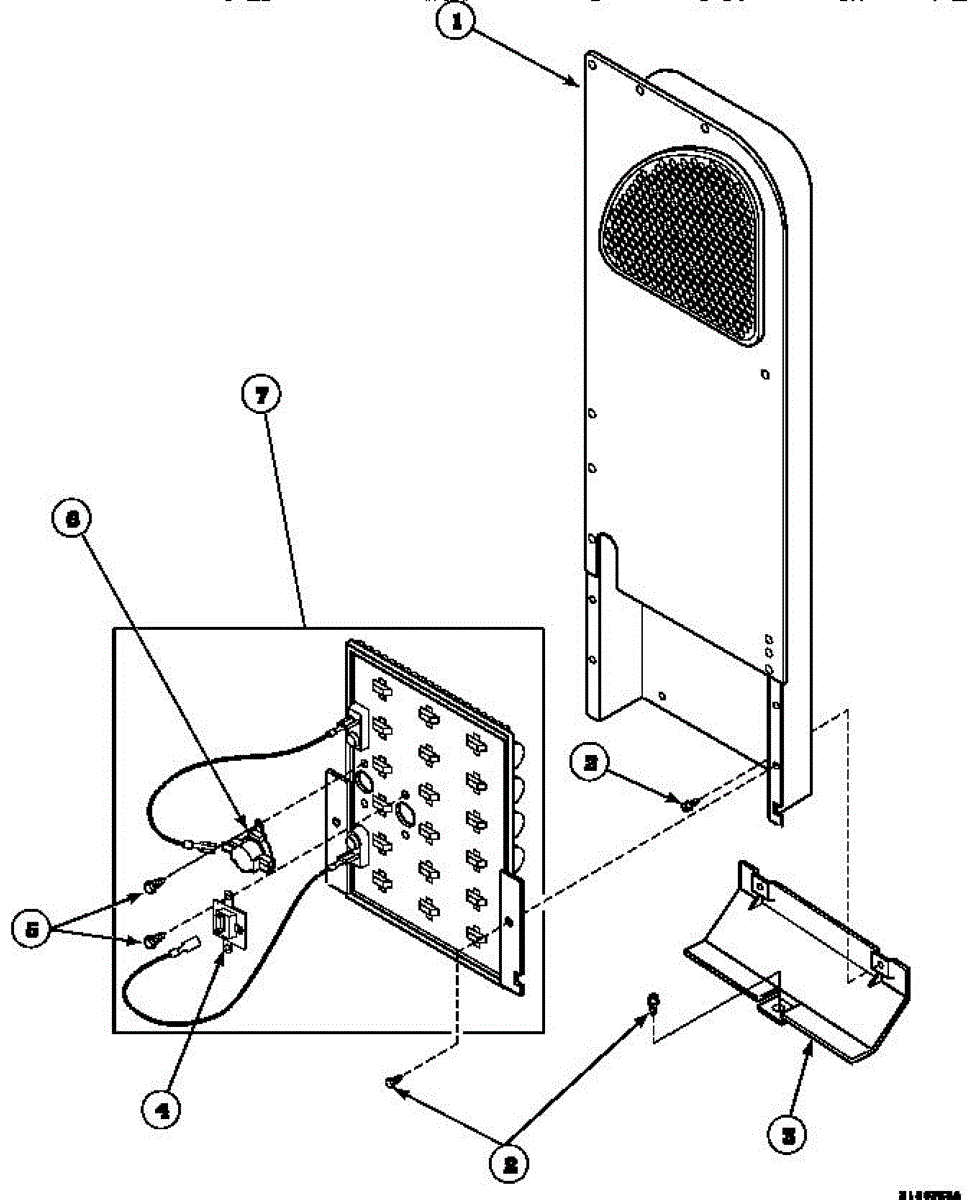

Parts for Amana LE8317W2B / PLE8317W2 B: 05 - Heater Box Assy Originally On Elec Dryer Parts

10 - 16 x 1/2

Dryer won't start or heat? The thermal fuse trips when overheating occurs, often from clogged vents. Easy DIY fix with our video guide.

Appliance won't start or trips breaker? This ground screw secures the grounding conductor to the chassis for safe electrical connection. Simple fix.

Dryer running too hot or overheating? The hi-limit thermostat cuts power to the heating element when temps exceed safe limits. Easy DIY replacement.

This 240-volt heater assembly restores the appliance's ability to generate and maintain heat during operation, helping cycles reach designed temperatures for proper performance and results. What it does:

• Converts electrical energy into heat for the appliance's heating circuit
• Helps the unit reach and hold target temperatures during heat-required portions of the cycle
• Replaces a damaged, shorted, or open heating element
• Symptoms can include no heat when expected, longer-than-normal cycles, tripped breakers, or heater-related error codes

• 1 heater assembly

• Disconnect power at the breaker before servicing; 240V circuits can be hazardous
• Document wire locations and move connectors one at a time to the new assembly
• Avoid bending or striking the element; ensure secure mounting and proper clearances
• After installation, check related safety devices (high-limit, thermostats, fuses) and verify the circuit has correct voltage and continuity
