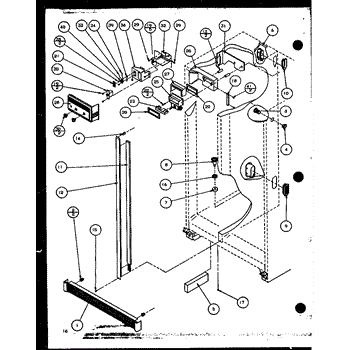

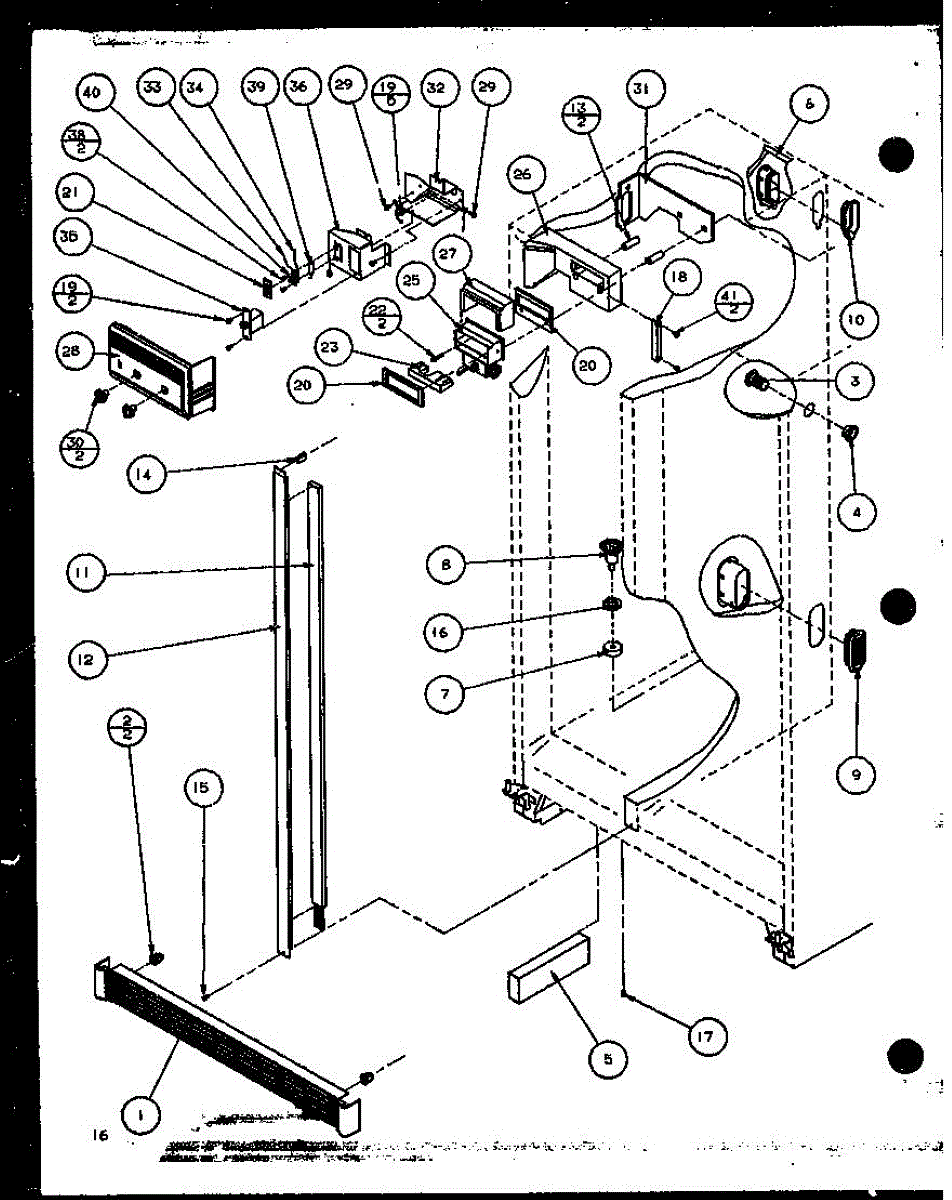

Parts for Amana 36551 / P1108802W: 07 - Ref Parts

White refrigerator kickpanel / toe grill. Mounting clips sold separately. For mounting clips order two of WPM0117303.

Seals the drain tube connection to prevent leaks and ice buildup in your freezer. Replace if you see water pooling or ice forming at the freezer bottom.

Water pooling in freezer or fridge? A clogged or cracked defrost drain funnel causes leaks. DIY fix in 30-45 minutes by accessing the rear freezer panel.

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

Creates a watertight seal at water connections to prevent leaks. Replace when cracked, flattened, or worn. Confirm fit with your model number.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This part has been discontinued and is no longer available.

Size: 8-32 x .312 inch.

This electronic freezer control assembly manages the freezer's control functions and settings to help restore reliable temperature regulation and responsive controls when the original control fails. Designed as a direct replacement control module. What it does:

• Controls freezer functions and user settings by communicating with sensors and other system modules.
• Commonly replaces a failed control board when the freezer won't maintain temperature, cycles erratically, or displays control-related errors.
• Restores responsive control panel behavior when buttons or digital settings stop working.
• Used when diagnostics point to control/board faults rather than mechanical components.

• Disconnect power to the appliance before starting any repair to avoid shock or damage.
• Handle the control board carefully and avoid static discharge; use antistatic precautions if available.
• Match connector locations and wire harness orientation; ensure all plugs seat fully before restoring power.
• If symptoms persist after replacement, recheck wiring, sensors, and diagnostic codes before ordering additional parts.

This part has been discontinued and is no longer available.

Size: 8 x 1-1/4 inch.
