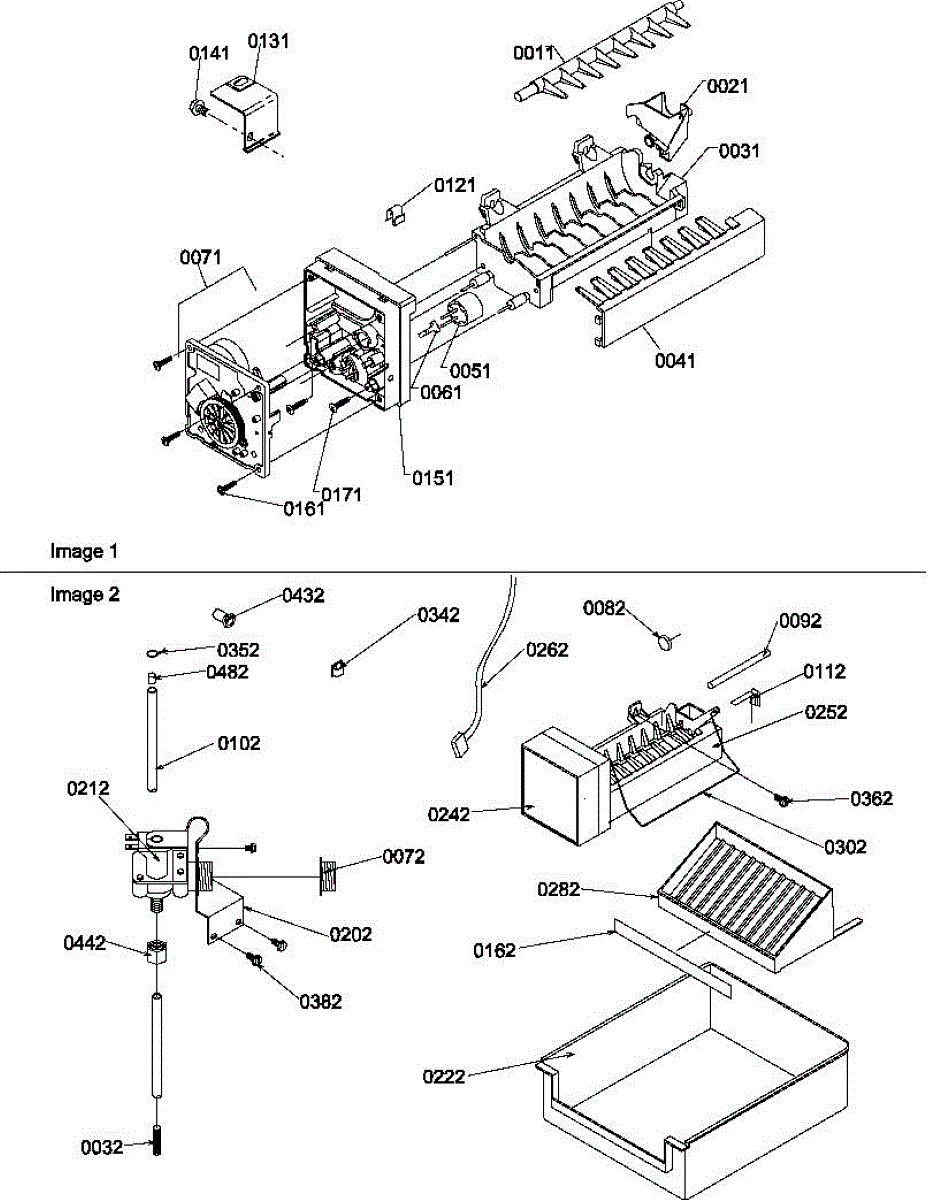

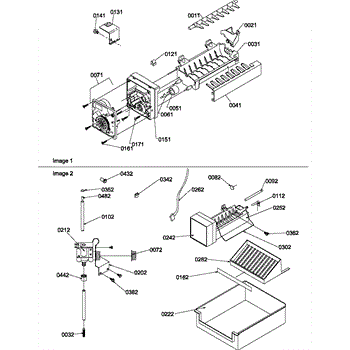

Parts for Amana SR25TE / P1194002W E: 08 - Ice Maker And Add On Ice Maker Kit Parts

Ice cubes stuck in tray and won't eject? This ejector arm pushes ice from the mold into the bin. Simple snap-in install restores ice production.

Ice maker leaking or shutoff arm broken? This fill cup and bearing assembly directs water into the mold and supports the arm. 15-minute DIY fix.

The Replacement Icemaker is an OEM replacement part for Whirlpool made refrigerators including Whirlpool, Amana, Maytag, and many others. It is a component responsible for producing ice cubes or crushed ice, ensuring a constant supply of fresh ice for your convenience. Measuring approximately 11 inches long and 5 inches wide, this ice maker assembly is made of durable plastic and metal

Symptoms of needing a replacement icemaker include:

• No ice production or significantly reduced ice output
• Ice cubes appearing misshapen or clumped together
•  Leaks or water buildup in the icemaker area
• Strange noises or grinding sounds coming from the icemaker

Causes of a faulty icemaker can include normal wear and tear over time, water supply issues, clogging or blockages, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Please note: that this ice maker is a replacement only and not suitable for add-ons or brand-new installations. It does not include the harness or hardware. For wire harness(Plug)order WPD7813010. For cover order WPW10289690. For shut off bail arm order WP67004028.

Ice stripper removes ice cubes from the ice maker mold so the dispenser or storage bin fills properly. Replacing a worn or broken stripper helps the ice maker eject cubes cleanly and reduces ice jams or stuck cubes. What it does:

• Pushes or guides harvested cubes out of the ice mold into the bin during the ice maker's harvest cycle.
• Prevents cubes from sticking in the mold; a damaged stripper can cause incomplete ejection or leftover ice in the mold.
• Works with the ice maker's ejector mechanism to maintain consistent cube release and storage.
• A faulty or broken stripper may lead to noisy operation, partial fills, or visible ice build-up in the mold.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove the ice maker or access panel per the manufacturer's instructions to reach the stripper; keep small parts and screws organized.
• Inspect the ice mold and surrounding components for damage or ice build-up; clear ice before installing the new stripper.
• After installation, restore power and run a test harvest cycle to ensure proper cube ejection.

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

Ice maker stopped making ice or won't eject cubes? The control module regulates ice production cycles. Simple 3-screw replacement restores function.

Ice maker water line: 1/4x 8ft.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

Ice maker not filling or water dispenser not working? This water inlet valve controls flow to your refrigerator's ice and water system. DIY repair.

This part has been discontinued and is no longer available.

The Replacement Icemaker is an OEM replacement part for Whirlpool made refrigerators including Whirlpool, Amana, Maytag, and many others. It is a component responsible for producing ice cubes or crushed ice, ensuring a constant supply of fresh ice for your convenience. Measuring approximately 11 inches long and 5 inches wide, this ice maker assembly is made of durable plastic and metal

Symptoms of needing a replacement icemaker include:

• No ice production or significantly reduced ice output
• Ice cubes appearing misshapen or clumped together
•  Leaks or water buildup in the icemaker area
• Strange noises or grinding sounds coming from the icemaker

Causes of a faulty icemaker can include normal wear and tear over time, water supply issues, clogging or blockages, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Please note: that this ice maker is a replacement only and not suitable for add-ons or brand-new installations. It does not include the harness or hardware. For wire harness(Plug)order WPD7813010. For cover order WPW10289690. For shut off bail arm order WP67004028.

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

1/4 inch compression nut for securing plastic water lines in refrigerators and ice makers. Replace worn, cracked, or missing nuts to prevent leaks.

Fix water leaks in your refrigerator's ice maker or water line. This tube insert reinforces plastic tubing for leak-resistant compression fittings.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
