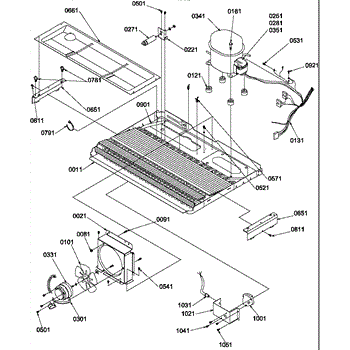

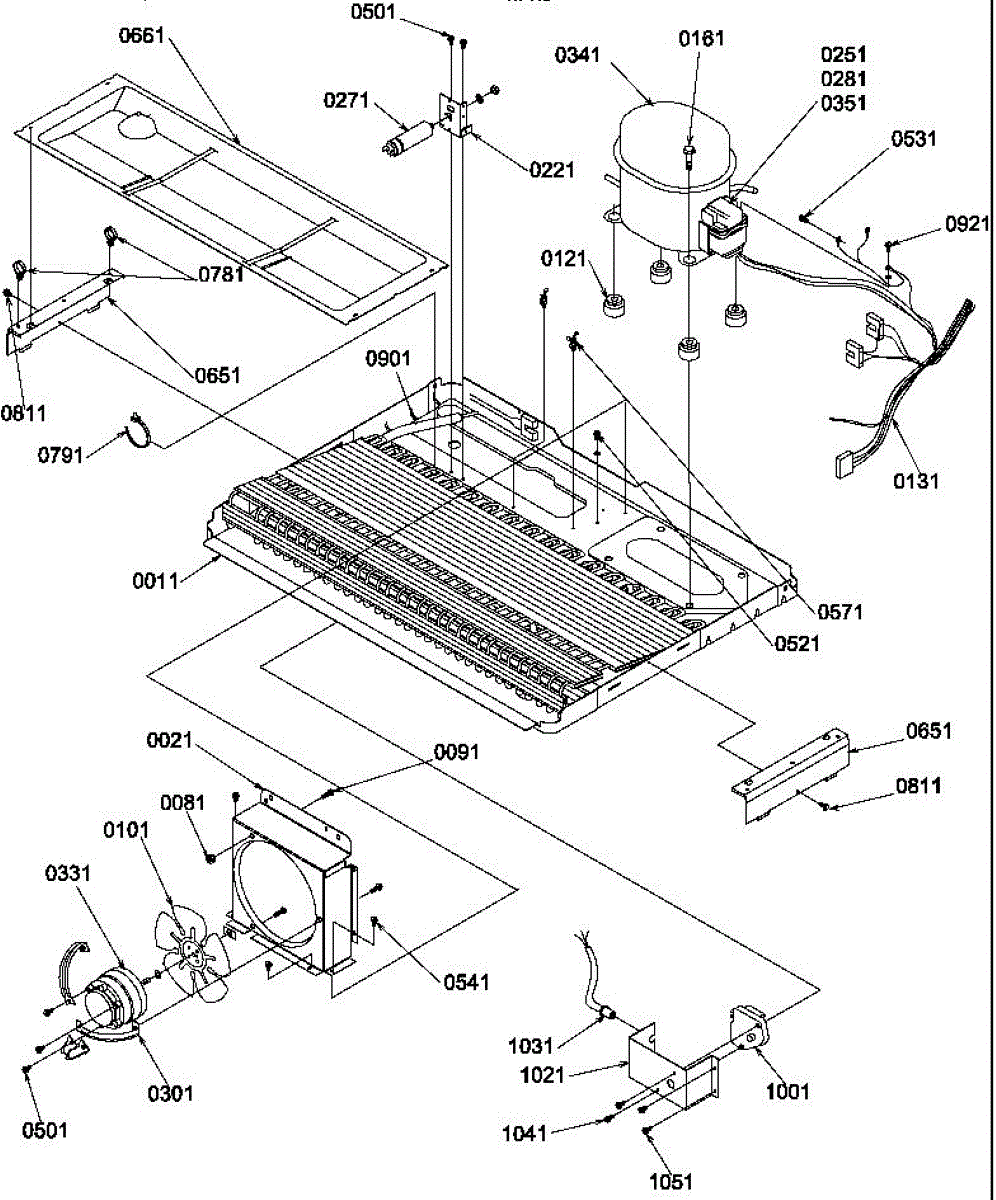

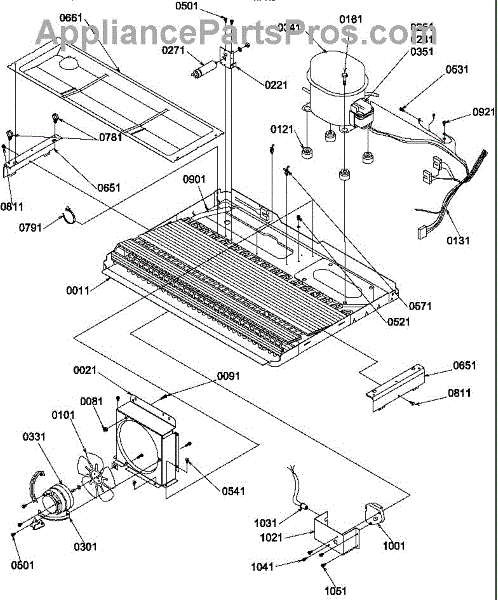

Parts for Amana SRD522TE / P1313301W E: 10 - Machine Compartment Parts

Cushions refrigerator components at mounting points to reduce vibration and rattling. Replace if worn, cracked, or missing to restore quiet operation.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

Refrigerator not cooling or running constantly? The compressor pumps refrigerant through the sealed system. This is an advanced repair requiring proper tools.

Screw: 8-16 x 3/8 inch.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fix a refrigerator that's not cooling properly or has frost buildup with this defrost timer. Controls automatic defrost cycles to prevent ice accumulation.

This timer mounting bracket secures the appliance timer assembly to the cabinet so the timer stays aligned and stable during operation. Replaces a worn or broken bracket to restore proper timer support and reduce vibration. What it does:

• Holds the timer/timer motor firmly in place on the control panel or chassis
• Prevents the timer from shifting or rattling during cycles
• Helps maintain proper gear alignment for accurate cycle timing
• Commonly replaced when bracket is bent, cracked, or missing mounting studs

• One timer mounting bracket

• Basic hand tools required; disconnect power before beginning repair
• Inspect related fasteners and the timer housing for additional damage
• Handle the timer assembly carefully to avoid damaging wiring or connectors

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles
