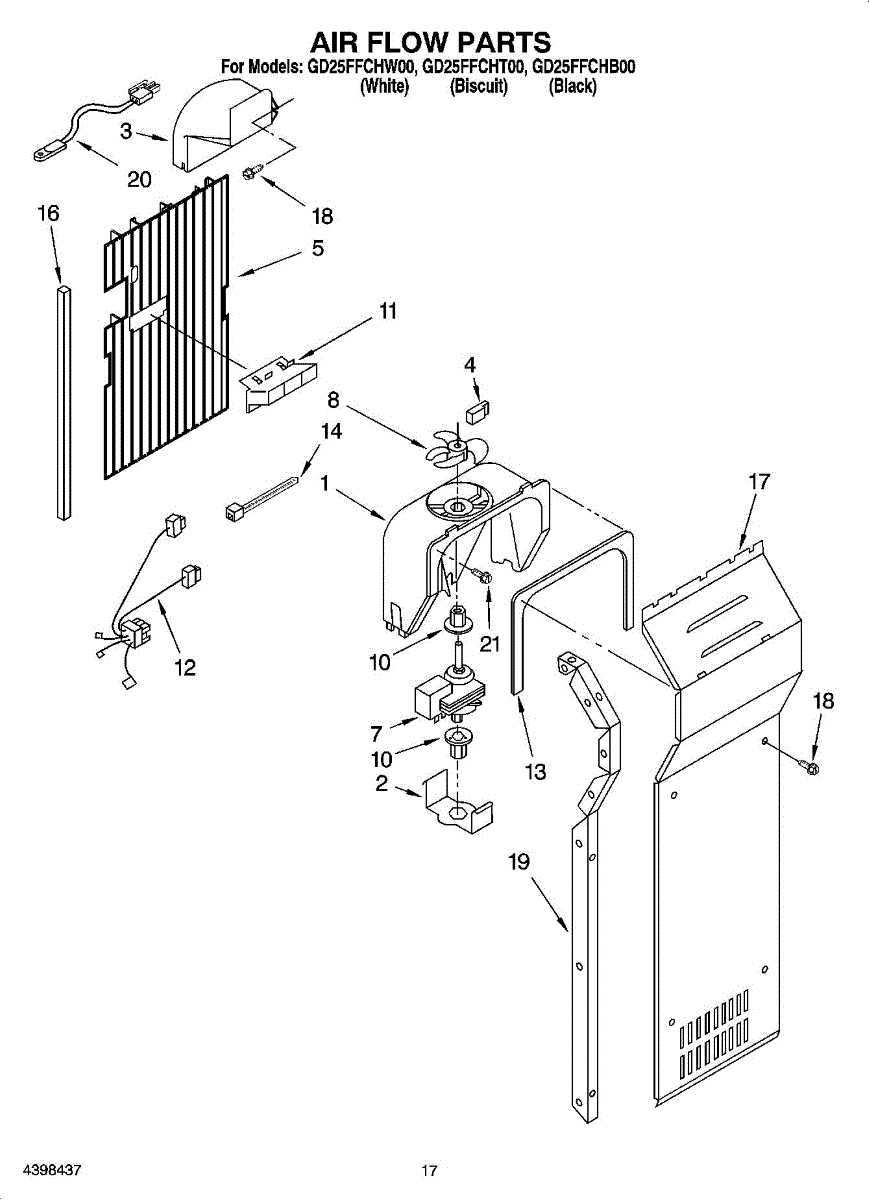

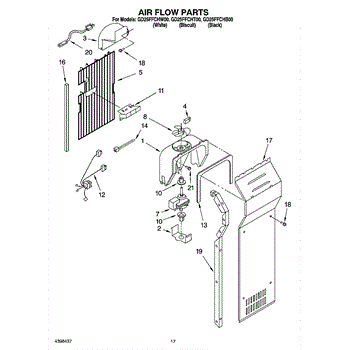

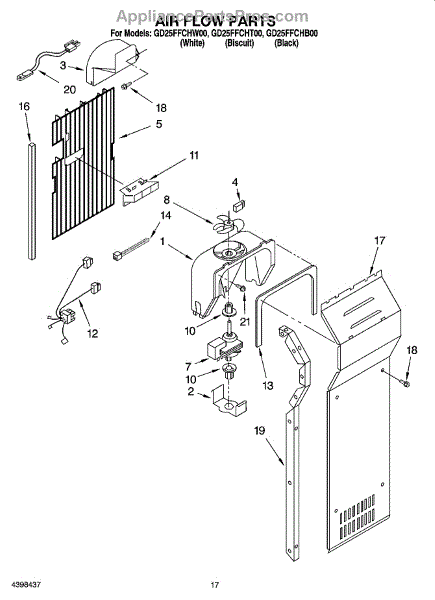

Parts for Whirlpool GD25FFCHT00: 10 - Air Flow Parts

Replace your refrigerator water filter every 6 months for clean, fresh-tasting water and ice. Simple twist installation. Verify fit with your model number.

Fixes uneven cooling and warm refrigerator temperatures caused by poor airflow. This fan housing directs cold air from freezer to fridge. Easy 30-minute fix.

This fan motor retainer secures the refrigerator's fan motor to its mounting bracket or shroud, reducing vibration and keeping the fan aligned so air circulates properly for consistent cooling.

• Secures the fan motor to its bracket or shroud
• Maintains proper fan alignment and clearance for consistent airflow
• Helps reduce vibration, buzzing, or rattling from a loose motor
• A worn or missing retainer may present as scraping fan noises or uneven airflow

• Disconnect power to the refrigerator before servicing; allow moving parts to stop and wear cut-resistant gloves
• Access the fan area per your model
• Transfer the motor into the new retainer and reinstall using existing hardware as required
• Ensure the fan blade spins freely and clears the shroud before restoring power

Refrigerator not cooling or freezer warming up? A failed evaporator fan motor stops cold air circulation. DIY repair takes about 1 hour with basic tools.

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Refrigerator warm but freezer cold? Noisy evaporator fan? This mounting grommet reduces vibration and noise. Takes about 1 hour to replace with video guide.

Molded plastic deflector that directs cold air around the icemaker assembly. Replace if cracked, broken, or missing to restore proper airflow routing.

This fan scroll gasket seals the evaporator/fan housing to prevent air bypass and maintain proper airflow through the evaporator. Replacing a worn gasket helps restore efficient cooling and reduces frost buildup. What it does:

• Seals the fan scroll/evaporator housing to direct cold air through the evaporator fins
• Prevents air leaks that can cause reduced cooling or temperature fluctuations
• Helps reduce frost or ice buildup by ensuring consistent airflow over the coil
• Can reduce abnormal fan noise caused by air turbulence around a damaged seal

• Disconnect power to the appliance before beginning any work.
• Remove the evaporator/fan housing cover and carefully pull out the old gasket.
• Clean mating surfaces of debris and residue for a flush seal before installing the new gasket.
• Seat the gasket fully around the scroll; reassemble panels and restore power to test operation.

Wire tie secures and organizes internal wiring harnesses in your appliance. Replace if the original tie is broken, cracked, or missing during repairs.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This is the right side rail. For left side use 2199923.

This is the left side rail. For right side use 2199922.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.
