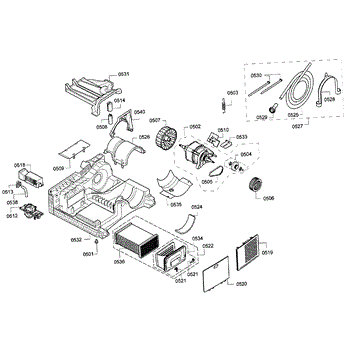

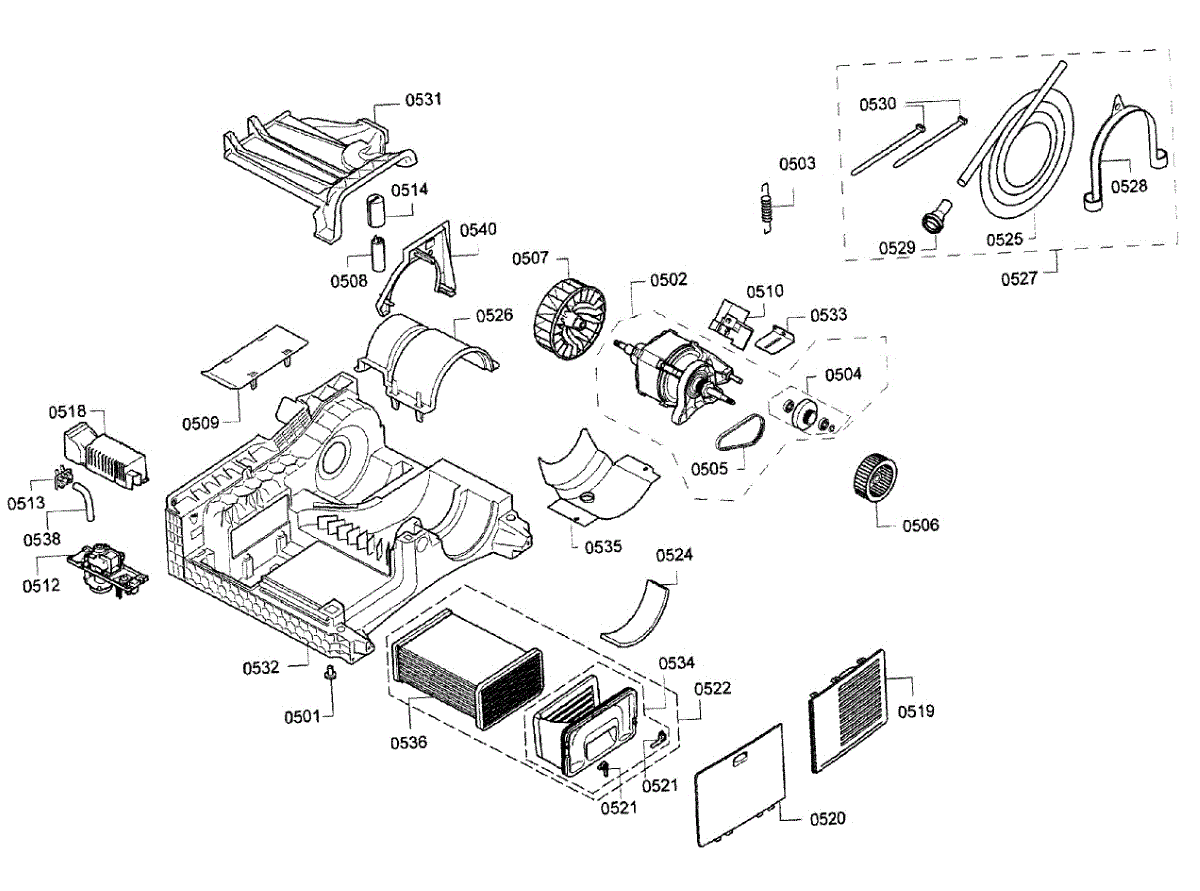

Parts for Bosch WTB86202UC/02: Base & Motor Assembly Parts

Replacement leveling foot for dryers. Installs on the bottom corner to elevate and stabilize the appliance. Order if cracked, broken, or missing.

Dryer won't start or drum won't turn? A faulty motor assembly is often the cause. This part powers both the drum and blower. Moderate difficulty repair.

Suspension spring for dryer drum support system. Installs between the drum and cabinet to absorb vibration. Replace if stretched, broken, or missing.

Tension roller for dryers. Mounts to the support bracket to maintain proper belt tension around the drum. Replace if worn, squeaking, or damaged.

Drive belt transfers power from motor to drum to tumble clothes. Replace if dryer drum won't turn or makes squealing noises. Confirm fit with your model.

Clothes taking too long to dry? A damaged blower housing reduces airflow. This dryer fan drum restores proper ventilation and prevents overheating.

Fix poor drying or loud noise with this dryer blower fan housing. Restores airflow through the drum and vent system. Moderate DIY repair for many models.

Fix dryer control issues or motor problems with this metal paper capacitor. Stabilizes voltage for reliable electrical operation. Direct-fit part.

Replacement top lid cover for dryers. Protects internal components and restores finished appearance. Replaces cracked, broken, or missing lids.

The Pump is an OEM part for Bosch dryers. This pump is responsible for removing condensation water from the dryer, especially in condenser and heat pump models, ensuring efficient drying cycles and preventing water buildup within the appliance. It plays a crucial role in maintaining the dryer's performance and preventing moisture-related issues.

Common causes of a bad dryer pump include blockages from lint, wear and tear, and damage to the pump's motor or internal components.

Symptoms of a bad dryer pump include:

• Water not draining properly from the dryer
• The dryer stopping mid-cycle due to water buildup
• Unusual noises during operation
• Error codes related to drainage or pump issues

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This hose connection inlet provides the sealed connection point where the appliance's water inlet hose mates to the valve or tub, restoring a leak-free water feed and reliable flow for normal operation. What it does

• Connects the inlet water hose to the appliance inlet fitting or valve, directing water into the unit
• Creates a sealed joint to prevent drips and leaks at the hose connection
• Replaces cracked, worn, or damaged fittings that can cause visible leaks or reduced water flow
• Helps resolve symptoms such as water pooling under the appliance, continuous dripping, or inlet hose not seating properly

• One hose connection inlet

• Always disconnect power and shut off the water supply before starting work
• Inspect and replace any worn O-rings, gaskets, or clamps when installing this fitting
• Hand-start threads, then tighten clamps or fasteners to secure the hose; avoid over-tightening plastic parts
• After installation, restore water and power and check carefully for leaks during a short test cycle

This replacement cover protects internal components and provides a finished appearance for the appliance. It restores a proper enclosure to keep parts shielded from debris and accidental contact. What it does:

• Replaces a cracked, broken, missing or damaged access cover that exposes internal parts
• Helps protect electronics, wiring and moving components from dirt and incidental contact
• Restores the appliance's finished appearance where the original cover was damaged
• Can reduce the chance of accidental contact with internal parts during service or operation

• One replacement cover

• Disconnect power to the appliance before starting any repair
• Remove any trim or fasteners holding the old cover in place; retain screws if reusing
• Use basic hand tools; take care handling edges to avoid cuts

Replacement cover for dryer housing. Restores finished appearance and protects internal components. Replaces cracked, broken, or missing covers.

Closes a designated opening on your dryer, shielding internal components from dust and debris. Replace if cracked, warped, broken, or missing hinges.

Dryer won't start or stops mid-cycle? A faulty door latch prevents operation. This mechanical lock assembly ensures your door closes and latches securely.

This heat exchanger is the side-mounted water matrix assembly that manages fill, circulation, and controlled heat storage in the wash system. Replacing a cracked or clogged exchanger restores proper water flow and helps prevent leaks and poor cleaning.

• Directs incoming water through internal channels to regulate fill and pressure
• Works as a thermal reservoir to moderate wash temperature changes
• Common failure signs: water leaking from left side, poor water circulation/filling, error codes related to water intake, or visible cracking/discoloration of the matrix
• Also causes extended cycles or incomplete fills when restricted by limescale or debris

• Disconnect power and shut off water before service; pull unit out for left-side access
• Keep unit level; have towels ready—residual water may drain from hoses
• Photograph hose routing and sensor/clip locations before removal; move clamps to reuse
• Inspect and replace any worn O-rings, seals, or clamps during reassembly to prevent leaks

Missing or damaged condensate drain hose? This dryer drain hose channels moisture from your condensation dryer to your household drain. Easy DIY fix.

Replacement mounting bracket holder that secures internal components in place. Install when original is cracked, broken, or missing to restore proper alignment.

Bottom case panel for dryer exterior housing. Replacement needed when original panel is cracked, damaged, or broken. Protects internal components.

This replacement sheet is a protective metal panel that helps shield internal components and restore proper fit where the original panel is damaged or missing. It's a direct-fit repair part used in appliance body and interior assemblies. What it does:

• Shields internal wiring and components from contact, debris, and minor impacts
• Helps maintain proper airflow paths and component spacing inside the appliance
• Can reduce rattles or vibration caused by a loose or damaged panel
• Restores a finished appearance when the original sheet is bent, corroded, or missing

• Disconnect power (and water if applicable) before starting any repair
• Handle edges carefully; sheet metal can be sharp—wear gloves and eye protection
• Removal/replacement typically requires basic hand tools; follow the appliance service manual for exact fastener locations

This coarse mesh dishwasher sump filter captures food particles to help prevent clogs and improve wash performance. It fits into the dishwasher sump to protect the drain pump and help maintain normal water flow. What it does:

• Traps food debris and larger particles before they reach the pump
• Helps reduce clogs that can cause standing water or slow draining
• Supports consistent wash performance by keeping spray arms and passages clearer
• Can help reduce smells caused by trapped food in the sump area

• Turn power to the appliance off before accessing the sump area
• Remove the lower rack and follow the OEM steps to lift out the old filter and seat the new one
• Inspect the surrounding sump and pump area for debris and clean as needed before installing

This motor protection thermal protector stops the motor from overheating and helps prevent damage by cutting power if temperatures get too high. It's a direct-replacement safeguard used on compatible Bosch appliance motors. What it does:

• Senses excessive motor temperature and interrupts power to prevent overheating.
• Helps stop motor failure and reduce risk of electrical or thermal damage.
• Can cause motor to stop running or appliances to fault when the protector opens.
• Often replaced when a motor runs hot, hums without turning, or repeatedly trips.

• One motor protection thermal protector.

• Disconnect power to the appliance before accessing or replacing the motor protector.
• Handle the protector and wiring gently; match connector type and orientation exactly.
• Verify motor and wiring condition—replace the protector only when the underlying motor issue is addressed.

If your dryer overheats or shuts down unexpectedly, this cooling system assembly directs airflow to protect electronics from heat buildup and damage.

This fill hose routes water from the supply or inlet valve to the appliance tub, restoring normal water flow for cycles that need filling. It's a direct-replacement hose designed to prevent leaks and ensure proper fill performance. What it does:

• Carries incoming water from the inlet valve to the washer/dish tub or dispenser
• Replaces cracked, split or collapsed hose that causes leaks or poor filling
• Helps stop continuous running or under-fill symptoms when the hose is damaged
• Restores a proper water path so fill cycles complete correctly

• One replacement fill hose

• Turn off water supply and power to the appliance before starting work
• Inspect and reuse or replace hose clamps; tighten securely to prevent leaks
• Route hose without kinks and ensure fittings match valve and tub connections

This insert is a small interior accessory that restores proper fit and function inside the appliance, helping keep components centered and preventing movement or rattling during use. It installs quickly and quietly improves usability. What it does:

• Centers or supports internal components to prevent rubbing and noise
• Helps maintain proper spacing for optimal operation
• Reduces vibration and movement that can cause wear or misalignment
• Restores original fit/finish when a damaged or missing insert affects operation

• One insert as shown

• Remove power and water (if applicable) before accessing interior parts
• Hand-install or use basic tools; avoid forcing the piece into place
