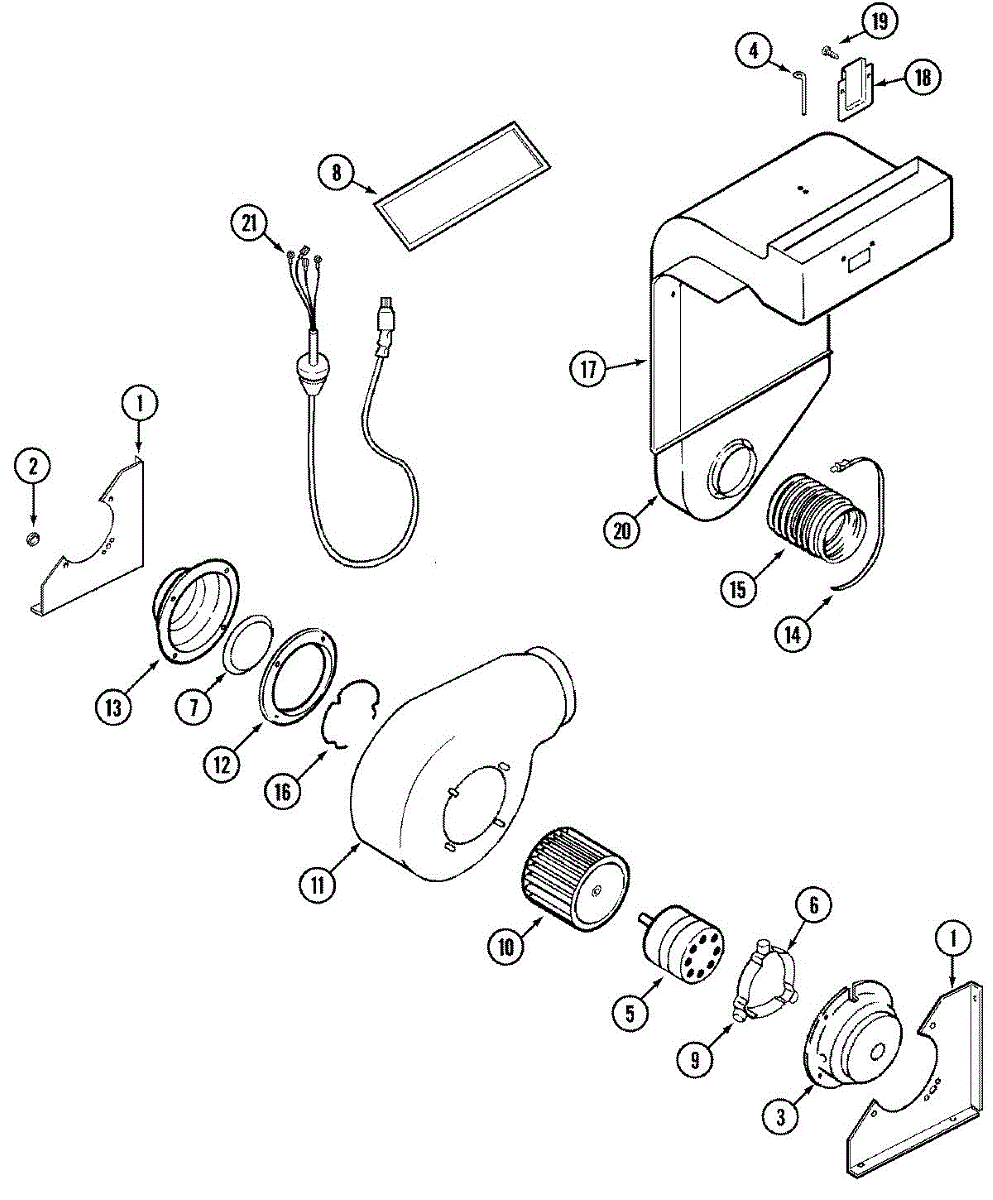

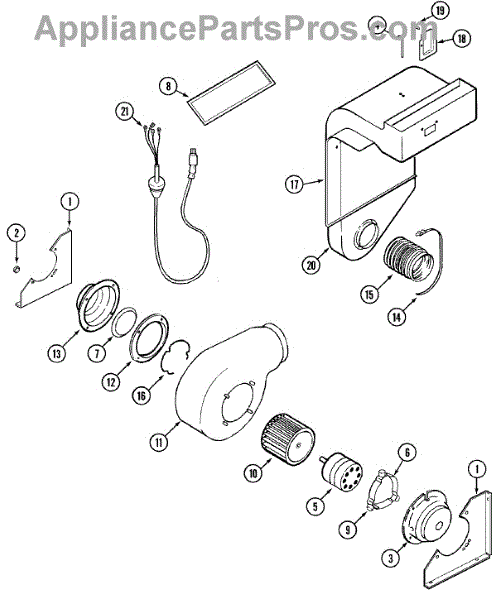

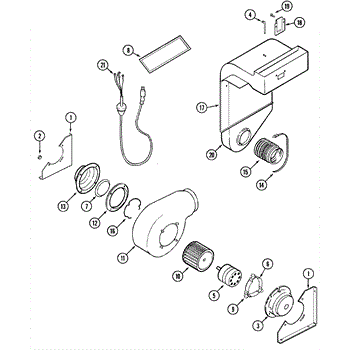

Parts for Jenn-Air SVE47600B: 02 - Blower Assembly (Plenum) Parts

This locknut is a small threaded retaining nut used to secure rotating and stationary appliance components, helping keep assemblies tight and stable during operation. It prevents parts from loosening and reduces vibration-related issues. What it does:

• Secures shafts, pulleys, or fittings to prevent axial movement
• Keeps assemblies fastened under normal vibration and load
• Helps stop wobble, grinding, or part separation caused by a loose connection
• Works with the matching threaded stud, shaft, or fitting for a proper hold

• Disconnect power and follow appliance safety procedures before servicing
• Use the matching thread size and engage threads fully; hand-start before tightening
• Tighten securely without overtightening; use the correct driver or socket for the nut
• Inspect mating threads and replace if damaged

Factory-style mounting screw secures panels, brackets, and trim to your appliance frame. Replaces worn, stripped, or missing screws for proper fit.

This blower motor moves air through the dryer to help vent heat and moisture so clothes dry efficiently. Replaces a worn or failed blower motor to restore proper airflow and drying performance. What it does:

• Spins the blower wheel to force air through the drum and exhaust vent
• Restores normal airflow when the dryer has little or no air movement
• Helps stop rattling, squealing, or grinding noises caused by a failing motor
• Helps reduce long dry times and overheating caused by restricted or weak airflow

• One blower motor

• Disconnect power to the appliance before starting any repairs
• Installation typically requires removing the dryer front or rear panel and accessing the blower housing
• Inspect the blower wheel and housing for lint or damage while replacing the motor

Replace your cooktop's downdraft blower motor when ventilation fails or makes unusual noise. Restores proper exhaust function. Verify fit with your model.

Range grease filter captures cooking grease and particles to keep your ventilation system clean. Replace when clogged or discolored. Confirm fit by model.

This motor isolator is a vibration-damping grommet that cushions the motor mount to reduce noise and prevent metal-to-metal contact. Replacing worn isolators helps keep the motor seated correctly and the appliance running quieter and smoother.

• Cushions the motor to minimize vibration transfer to the chassis
• Helps reduce rattling or buzzing noises during fan/blower operation
• Supports proper motor alignment and mounting stability
• A common maintenance item when rubber mounts become cracked, hardened, or missing

• Disconnect power and allow hot components to cool before service
• Access the motor mounting points; replace isolators in matched locations
• Inspect adjacent mounts and hardware; replace additional isolators as needed
• Do not overtighten fasteners—compress the grommet evenly without deforming it

This blower wheel mounts on the drive motor and pushes air through the dryer drum and out the exhaust. Replacing a worn wheel restores proper airflow for consistent drying and helps prevent overheating and nuisance shutdowns. What it does:

• Moves air across the heater, through the drum, and out the vent to remove moisture
• Helps maintain proper airflow and temperature inside the dryer
• Common failure symptoms: reduced or no airflow at the exterior vent, longer dry times, unusual scraping/thumping or vibration from the blower area, or overheating/shutoff
• Cracked fins or a stripped hub can cause the wheel to slip on the motor shaft

• 1 blower wheel

• Disconnect power and turn off gas supply before servicing
• Access the blower housing per your model's service instructions; remove the retaining hardware and replace the wheel in the same orientation
• Clean lint from the blower housing and vent path; inspect the motor shaft and blower seal for wear
• Reassemble and verify the wheel spins freely without rubbing; check airflow at the exterior vent

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This plenum is the OEM-style airflow duct that channels heated air through the appliance, restoring proper airflow and helping the unit vent efficiently. It replaces a cracked or damaged plenum to reduce leaks and airflow loss. What it does

• Directs and channels heated air between the blower and the exhaust or heating cavity
• Restores proper airflow to help maintain expected heating and venting performance
• Helps stop air leaks that can cause longer cycle times or reduced drying/baking efficiency
• Replaces visibly cracked, warped, or damaged plenums that can cause unusual noises or odors

• One plenum

• Disconnect power (and gas, if applicable) before attempting service
• Inspect and replace any worn gaskets or seals to ensure an airtight connection

This part has been discontinued by the manufacturer and is no longer available.
