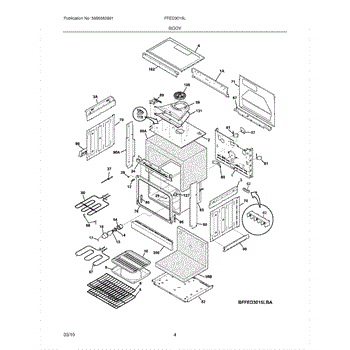

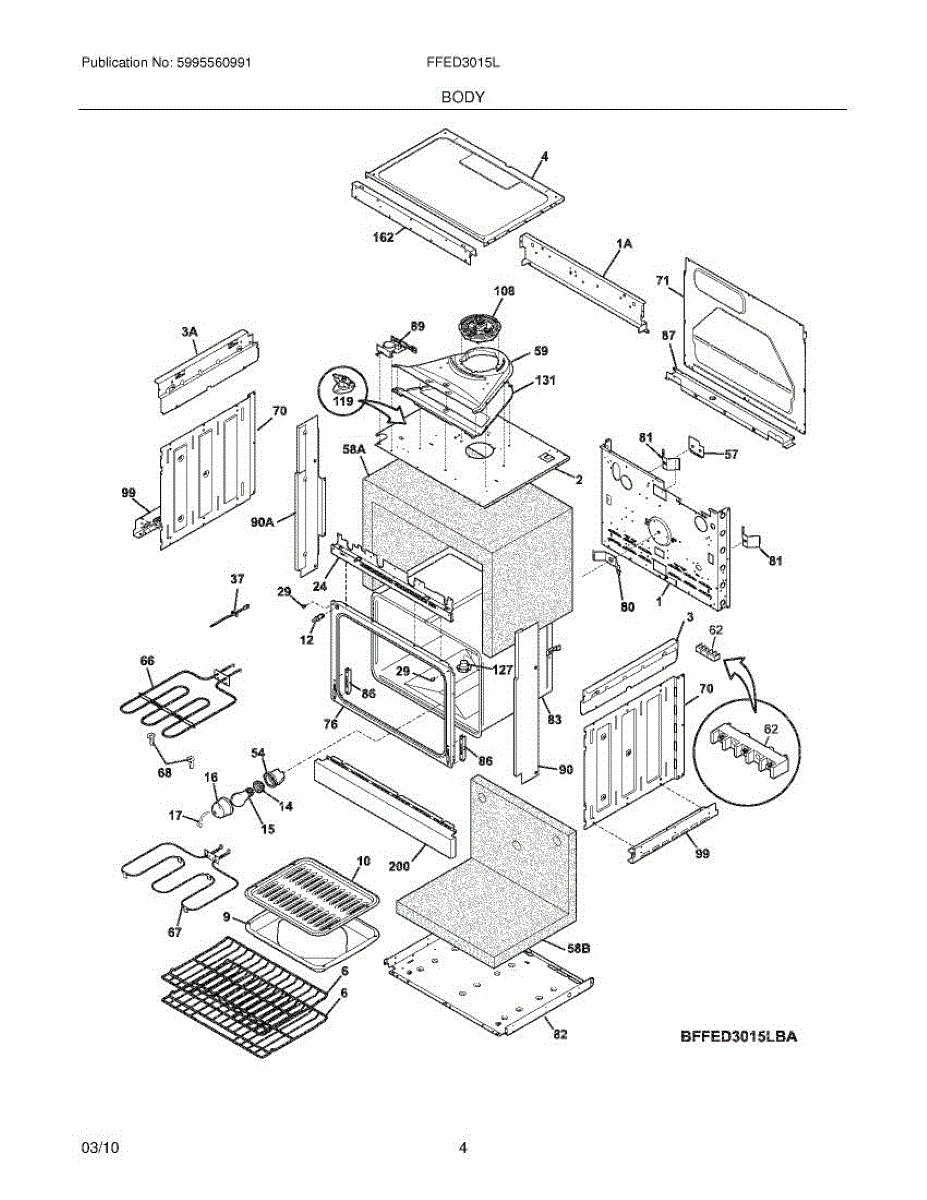

Parts for Frigidaire FFED3015LBA: 05 - Body Parts

Rear panel back for ovens and ranges. Replaces cracked, damaged, or missing exterior back panels. Essential structural part for cabinet integrity.

The Rack is an OEM part for Frigidaire ovens. This rack provides a sturdy and reliable surface for baking and broiling. It's engineered to withstand high temperatures and support heavy dishes, ensuring your culinary creations are cooked evenly and efficiently.

Over time, oven racks can become warped or damaged due to the high heat they're exposed to or from supporting heavy cookware. This can lead to uneven cooking or difficulty sliding the rack in and out of the oven.

Symptoms of a bad rack include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or baking results
• Visible warping or damage
• Difficulty fitting the rack properly inside the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Has three terminals.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Fix F1, F3, or F10 error codes and inaccurate oven temperatures with this sensor. Simple DIY replacement takes about 30 minutes with basic tools.

Replace your oven's support plate if it's cracked, broken, or missing. This structural component mounts inside the oven cavity to secure internal parts.

Insulation panel for oven cavity. Replaces worn, damaged, or missing insulation that provides thermal protection and sound dampening around your oven.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This lower bake element provides radiant heat from the bottom of the oven during Bake cycles. Replace a failed coil to restore proper preheating and even, consistent baking performance.

• Supplies bottom heat for Bake modes and maintains set temperature
• Replaces a burned-out or shorted lower element to restore oven operation
• Common symptoms: no heat in Bake, very slow preheat, uneven or undercooked results, visible blisters/cracks on the coil, or tripped breaker

• Disconnect power at the breaker before servicing; heating elements are high voltage.
• Remove oven racks; take out the element's mounting screws inside the cavity and gently pull the element forward to access wires.
• Move one wire at a time to the new element; ensure terminals are fully seated and not touching metal.
• Reinstall the element and racks, restore power, and test Bake.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Replace your oven's front panel frame if cracked, dented, or damaged. This structural component installs at the exterior of your range to restore appearance.

Mounting plate that secures the oven to the cabinet or wall. Replace this metal support plate if it's bent, rusted, or missing to ensure proper installation.

This inner cabinet liner restores the refrigerator/freezer interior to a smooth, cleanable surface and helps protect internal components and insulation from moisture and damage. It's a direct-fit replacement designed to match the original cabinet shape. What it does:

• Replaces a cracked, warped, or stained interior liner to restore a finished, sanitary surface
• Helps contain spills and makes routine cleaning easier
• Protects insulation, evaporator area, and internal wiring from moisture and damage
• Provides the finished mounting surface for shelves, bins, and interior components

• One inner cabinet liner as shown

• Disconnect power and empty the compartment before beginning; follow OEM service instructions
• Removal/installation may require removing shelves, trim, and possibly doors; keep fasteners and clips organized
• Use manufacturer-specified fasteners and sealants where required; avoid modifying the liner
• If clips or mounting hardware are damaged, replace them to ensure a secure fit.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Replacement mounting bracket that secures internal oven components. Install when original is cracked, bent, or missing to restore proper alignment and support.

Fixes loud grinding or squealing noise from your oven during convection cooking. Restores even heating and proper airflow. Moderate DIY repair.

Oven won't heat after self-cleaning? This high-limit thermostat cuts power when temperatures get too high. Moderately easy DIY repair fix.

Vent adapter assembly installs in the oven cavity to connect ventilation ducts. Replace if cracked, damaged, or missing to restore proper airflow.

Wire harness assembly for electric ranges. Replaces damaged, frayed, or corroded wiring connections. Essential structural component for safe operation.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, and components. Order a new screw if yours is stripped, missing, or damaged.

This mounting bracket secures and supports appliance components to keep assemblies aligned and stable during normal use. It replaces a worn or damaged bracket to restore proper fit and reduce rattling or movement. What it does:

• Provides a secure anchor point for panels, trim, or internal assemblies
• Prevents component misalignment that can cause gaps or rubbing
• Reduces vibration and rattling associated with loose hardware
• Restores original fit and helps maintain proper operation

• Disconnect power (and water if applicable) before beginning any repair
• Use basic hand tools; hold parts in position while fastening
• Align bracket to factory holes and tighten hardware securely but avoid over-torquing

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Mounting screw for ranges, ovens, and cooktops. Secures panels, brackets, or internal components. Replace if missing, stripped, or damaged.

Mounting screw for electric range and wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repair.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.
