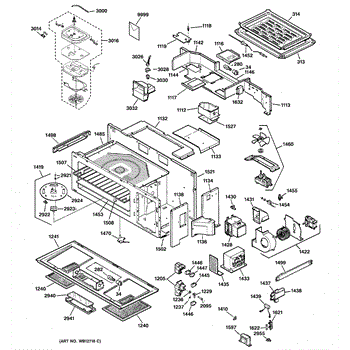

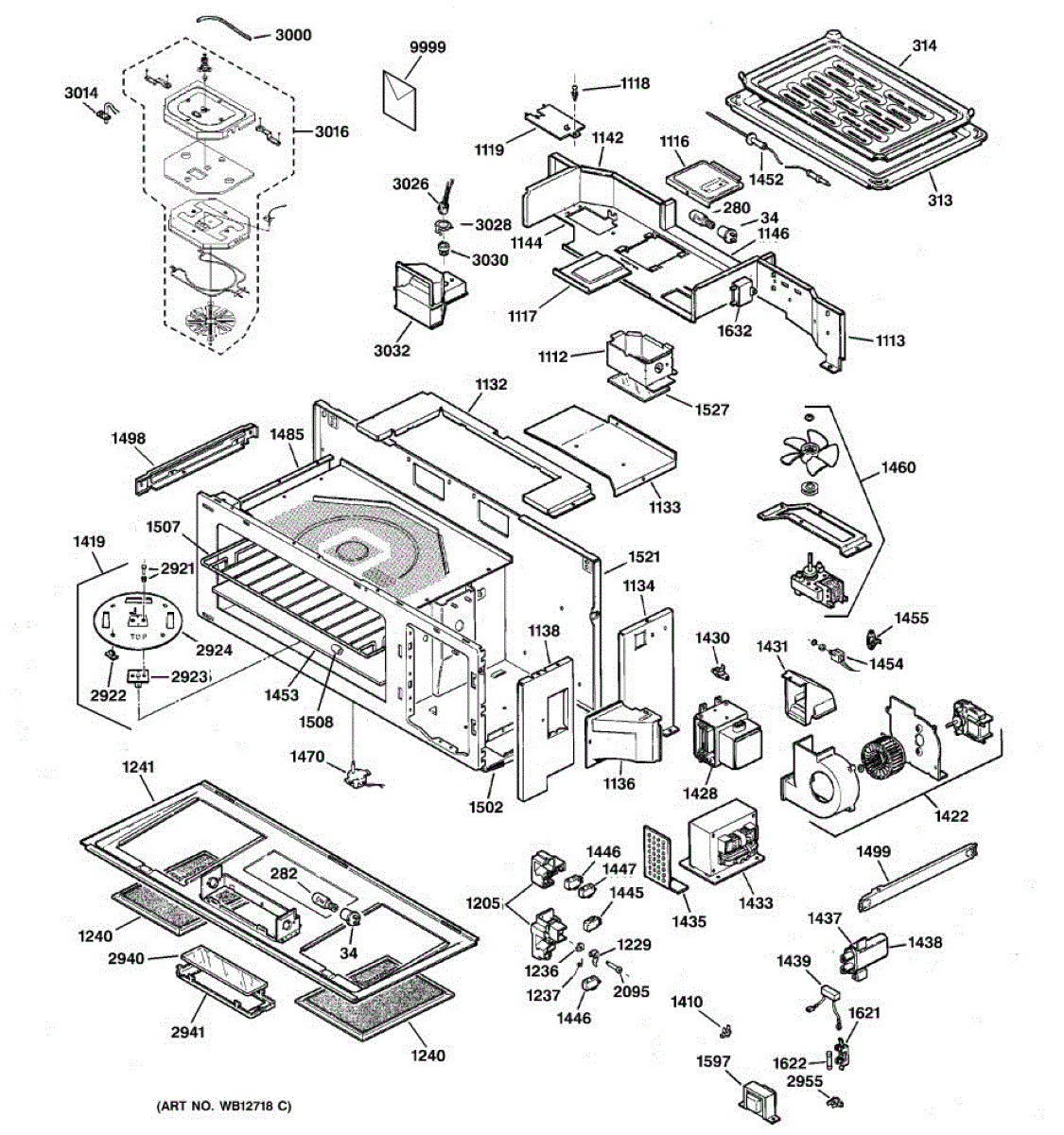

Parts for Ge JVM1190AY02: 02 - Body Parts

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Protective cover guard for your microwave's interior oven lamp. Replace this part if the original cover is cracked, broken, or missing to protect the bulb.

A replacement magnetron duct that directs microwave energy and helps protect internal components in countertop and over-the-range microwaves. Restores correct waveguide alignment and helps maintain heating performance when the old duct is damaged. What it does:

• Channels microwaves from the magnetron to the oven cavity while shielding surrounding components.
• Protects the magnetron and high-voltage area from debris and arcing.
• Commonly replaced when cracked, warped, or showing burn marks that can affect heating.
• Helps reduce unusual noises or sparking coming from the microwave cavity area.

• Disconnect power and discharge high-voltage capacitors before accessing the magnetron.
• Wear gloves and eye protection; sharp sheet-metal edges may be present.
• Secure mounting screws to prevent gaps that can cause arcing.
• Do not operate the microwave with covers or ducts missing or improperly installed.

Color: metallic. Measures about 6 inches wide by 9-1/2 inches deep.

Gray bottom plate for microwave interior base. Replaces cracked, warped, or discolored plates. Installs on cavity floor for structural support.

Fix a microwave with no power or intermittent shutoffs. This thermostat monitors temperature and protects internal components. DIY repair in 20 minutes.

Microwave not heating but lights and fan work? Buzzing noise when running? The magnetron generates microwaves to cook food. Moderate DIY repair difficulty.

Fix a microwave that won't heat or makes loud humming noises. This high voltage capacitor often fails when the magnetron can't generate heat properly.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Temperature probe socket for microwaves. Connects probe to control board. Replace if socket is cracked, broken, or fails to hold probe securely.

Fix a microwave with no power or intermittent shutoffs. This thermostat monitors temperature and protects internal components. DIY repair in 20 minutes.

Small spacer that positions and stabilizes the oven rack inside the microwave cavity. Replace when worn, missing, or cracked to restore proper rack height.

Ceramic

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

Fix sensor cook cycles that won't adjust properly or show sensor errors. This humidity sensor monitors moisture levels for automatic cooking adjustments.
