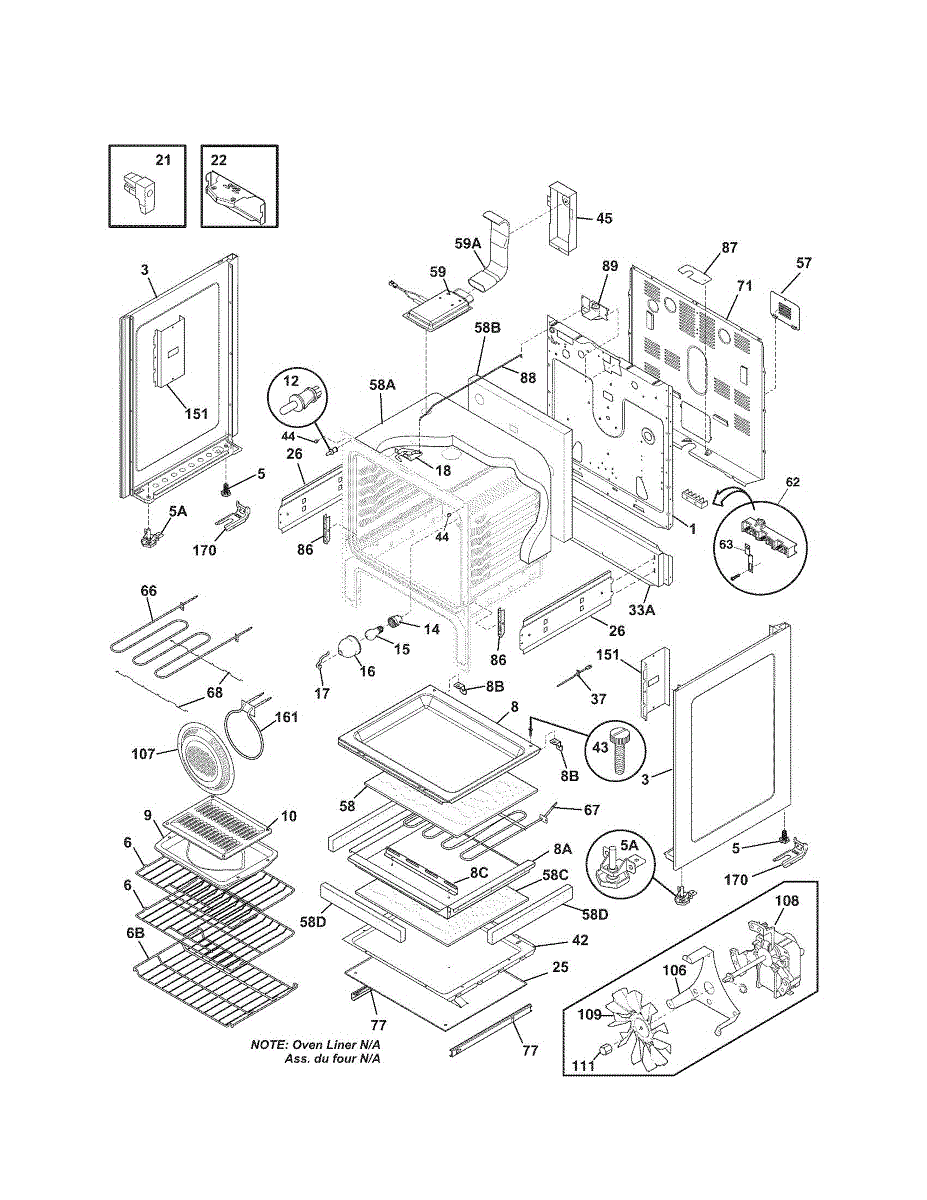

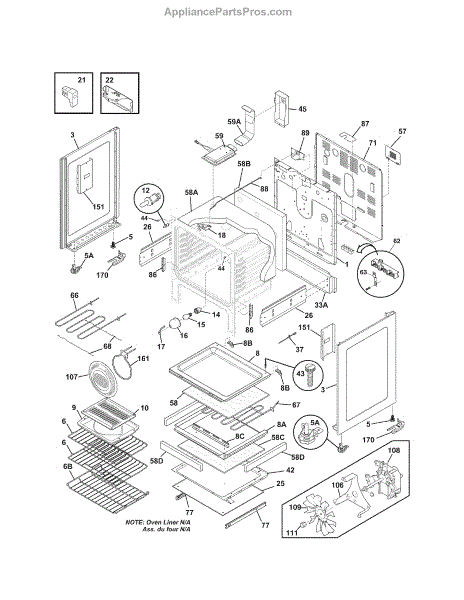

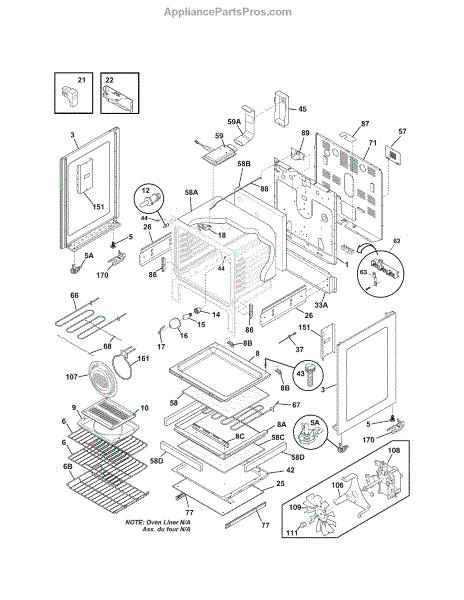

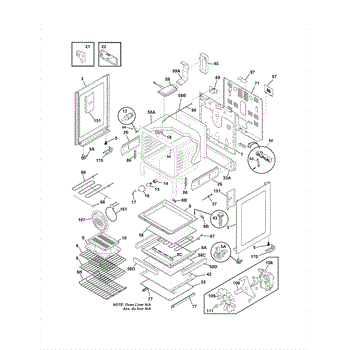

Parts for Kenmore 790.94249310 (79094249310, 790 94249310): Body Parts

Control panel for electric and gas ranges. Replaces a cracked, damaged, or worn panel on the front of your range. Restores the appearance of your appliance.

Exterior trim panel that houses and protects your range's control interface and display. Replace if cracked, broken, or worn to restore a clean appearance.

This factory screw secures panels, brackets, and other components in your cooking appliance. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and keep parts properly aligned during use.

• Fastens components to maintain proper alignment and stability
• Helps prevent vibration, rattling, and loose parts during operation
• Replace if threads are stripped, the head is damaged, or the screw is missing
• Commonly used to mount internal or exterior parts in ranges and wall ovens

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Use the correct driver bit to avoid stripping the screw head
• Install in the original location and do not overtighten
• If the receiving threads are damaged, repair or replace the mating part before installation

Leveling leg assembly installs at the front corners of your range. Replace if broken, rusted, missing, or no longer adjusts to level your appliance.

Replacement oven rack for electric and gas ranges. Replaces bent, rusted, discolored, or missing racks. Slides into side rails for sturdy support.

Oven rack for electric and gas ranges. Provides a cooking surface inside the oven cavity. Replace if discolored, warped, rusted, or damaged.

Base frame for electric and gas ranges. Provides structural support for the entire range chassis. Replace if cracked, bent, or damaged during installation.

Replacement mounting bracket that secures internal range components. Needed when your original support is broken, cracked, or missing, causing parts to rattle.

Secures components inside your range or oven. Replace this bracket if it's bent, broken, or missing to restore proper mounting, alignment, and stability.

Bottom panel installs inside the oven cavity beneath the baking element. Replace if cracked, discolored, or damaged by melted foil or high heat exposure.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Oven light stays on or won't turn on when door opens? This door-activated switch restores automatic light control. Easy 15-minute DIY repair.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Secures the glass light cover to your range oven cavity. Replace if the retainer is cracked, broken, or missing to keep the lens firmly in place.

Fix an oven door that won't lock during self-clean or clean cycle errors. This door latch assembly secures the door and reports lock status to the control.

Secures range trim, panels, and components to prevent rattles and loosening. Replace when clips break or lose tension. Confirm fit with your model number.

Secures cabinet panels to your range frame, maintaining proper alignment and structural stability. Replace if bracket is cracked, bent, or missing.

This shield is a replacement protective panel that covers and protects internal appliance components from debris and heat, helping maintain safe operation and appliance appearance. What it does:

• Covers exposed internal components to reduce debris buildup and prevent accidental contact
• Helps direct airflow or heat away from sensitive parts
• Replaces a cracked, bent, or missing shield that may cause vibration or scraping noises
• Restores a finished appearance to the appliance where the original shield was damaged

• One replacement shield

• Disconnect power (unplug or switch off breaker) before service to avoid shock or injury
• Typical installation requires removing nearby panels and fastening the shield with screws or clips—retain all hardware for reassembly
• Handle carefully to avoid sharp edges; wear gloves and eye protection

Fix F10 error codes or inaccurate oven temperatures with a new sensor probe. Common fix for ovens that overheat or won't reach set temp. Easy DIY repair.

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, damaged, or missing to maintain proper coverage.

Replacement mounting screw for electric and gas ranges. Secures panels, brackets, trim, and oven base plates. Replaces missing, stripped, or corroded fasteners.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Shield protects the wire harness near the vent tube in your range. Replace if cracked, damaged, or missing to prevent wire exposure and ensure safe operation.

Replace a cracked, broken, or missing outer housing cover on your range. This trim piece protects internal components and restores the finished look.

Sound dampening insulation for electric and gas ranges. Replaces worn, compressed, or missing insulation material. Installs inside range cavity.

Sound dampening insulation for electric and gas ranges. Replaces worn, torn, or missing insulation. Installs inside range cavity to reduce noise.

Thermal insulation pad that installs inside the range cabinet. Replace if torn, missing, or deteriorated to restore heat protection between panels and liners.

Insulation panel for range oven cabinet that reduces heat transfer and noise. Installs on top and sides. Replace if worn, damaged, or missing.

Replace your range's vent tube if the original is cracked, damaged, or missing. This duct component directs airflow within your appliance. Direct fit.

Upper oven vent tube for gas and electric ranges. Channels hot air from the oven cavity to the exterior vent. Replace if cracked, damaged, or missing.

Fix sparks, tripped breakers, or burnt connections at your range's power cord junction. Terminal block replacement takes about 5-10 minutes with basic tools.

Broil element not heating or burnt out? This upper heating element restores intense top heat for broiling meats and melting cheese. Easy DIY repair.

Burner won't heat or heats unevenly? Replace the radiant surface element beneath your glass cooktop. Restores proper heat output for consistent cooking.

Right-side oven rack support mounts to the interior wall to hold and guide oven racks at proper heights. Replace if cracked, broken, or missing.

Protective shield for your range. Installs to guard internal components from heat and debris. Replace if cracked, bent, or missing for proper protection.

Replaces a worn, broken, or missing storage drawer glide for smooth sliding operation. Installs on the drawer track to restore proper alignment and movement.

This electrical receptacle is the small connector that secures a wiring plug to an appliance component, restoring a reliable electrical connection and preventing intermittent operation or arcing. What it does:

• Provides a secure plug-in connection between a wire harness and a component
• Restores power to a component when the original connector is cracked, melted, or corroded
• Helps prevent loose connections that can cause intermittent operation or sparks
• Fits the OEM-style wiring configuration for a direct replacement

• Disconnect power to the appliance before starting any repair
• Remove the damaged connector and match the replacement to the harness before installing
• Use basic hand tools; avoid forcing terminals to prevent damage

Mounting plate for electric and gas ranges. Secures components in place. Replace if cracked, bent, or broken to restore proper structural support.

Replacement door latch rod for electric and gas ranges. Installs in the door mechanism to secure the latch assembly. Order a new rod if broken or missing.

Fix F95 error code or oven door that won't lock during self-clean cycle. This door lock motor assembly repair takes about 15 minutes with basic tools.

Secures the motor assembly to the range chassis. Replace if your bracket is cracked, bent, or broken to restore proper motor alignment and stability.

This evaporator fan cover protects the refrigerator evaporator fan assembly and helps direct airflow for proper cooling. It's a molded replacement part that restores the original airflow path and prevents debris contact with the fan. What it does:

• Shields the evaporator fan and motor from ice buildup and loose debris
• Directs airflow across the evaporator for even cooling in the freezer compartment
• Helps reduce fan noise by stabilizing airflow around the fan housing
• Commonly replaced when cracked, broken mounting tabs are present, or airflow is obstructed

• One fan cover

• Disconnect power before accessing the evaporator compartment to avoid shock and fan injury
• Remove food and evaporator access panels per model service instructions before replacing the cover
• Handle clips and mounting tabs gently—use proper fasteners if any original hardware is damaged
• If you encounter ice buildup on the evaporator, fully defrost and address the underlying cause before reassembly

Fixes loud noises or no airflow from convection fan. This motor drives the fan to circulate air evenly during cooking. DIY-friendly repair in 10-30 minutes.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Uneven baking or convection mode not working? This rear-mounted convection fan heating element circulates hot air for consistent cooking results.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

Replacement screw for electric and gas ranges. Used to secure various components and panels. Order a new screw if the original is stripped, missing, or damaged.

Black hinge washer for electric and gas ranges. Replaces worn, cracked, or missing washers on door hinges to ensure proper door alignment and support.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Black mounting screw that secures range body side panels. Replace if stripped, missing, or corroded. 8-18 x 11/16 inch fastener for structural assembly.

Molded protective cushion that reduces vibration and prevents component contact in your range. Replace if cracked, worn, or missing to restore stability.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Mounting screw for securing range panels, brackets, and igniters. Replace if stripped, missing, or damaged to restore proper fastening and alignment.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Size: 8-32t x 0.500 inch. Color: Black.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
