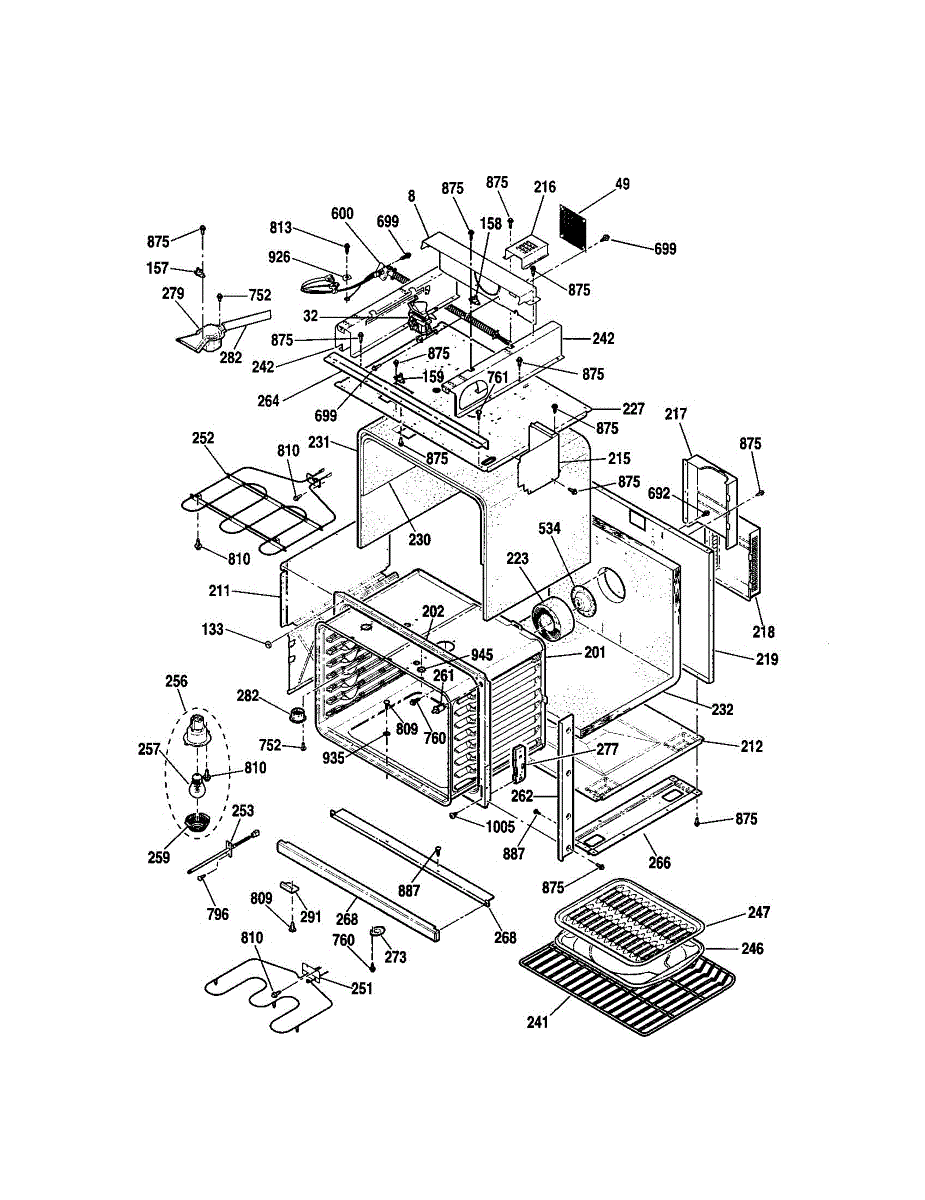

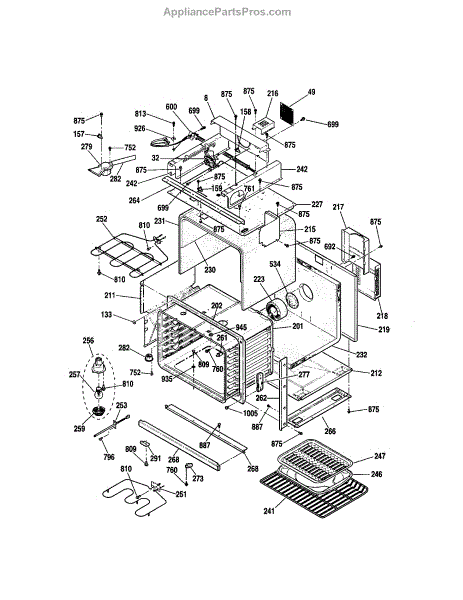

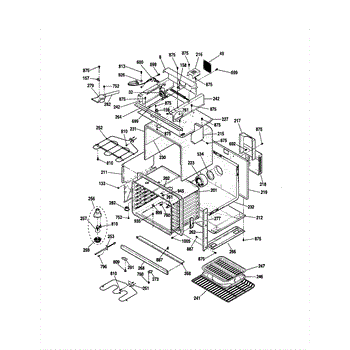

Parts for Kenmore 911.47819201 (91147819201, 911 47819201): Body Parts

This control cooling fan assembly circulates air through the oven's control compartment to remove heat. By keeping the console and electronics cool during and after cooking, it helps prevent overheating and protects sensitive components.

• Moves air across the control area to dissipate heat from the board, wiring, and trim
• Runs during/after bake or broil to maintain safe cabinet temperatures
• Typical failure signs: fan doesn't run, loud vibration/squeal, control area feels very hot, or heat-related shutdowns
• Purpose-built for the control compartment; distinct from the convection fan inside the oven cavity

• Disconnect power at the breaker and allow the appliance to cool; wear cut-resistant gloves
• Access is typically from the rear or top; remove panels/guards per your model's service information
• Transfer any required brackets or ducts; secure so the wheel spins freely with no rubbing
• Reconnect wiring as originally routed, keeping harnesses clear of the blade; test operation before reassembly

Cooling fan screen filter for ovens and wall ovens. Replace if clogged with debris or damaged to maintain proper airflow. Verify fit with your model.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Oven won't heat or shuts off during baking? A faulty thermal fuse cuts power when detecting excessive heat. This safety device protects your range.

Front frame trim for ovens and ranges. Replaces cracked, broken, or damaged trim pieces around the oven door opening. Restores appearance and structure.

This top wire cover protects and hides the cooktop's wiring harness at the rear of the range, keeping wires routed and shielded for safe operation. It restores a finished appearance and helps prevent snagging or accidental contact. What it does

• Covers and secures the cooktop wiring harness at the rear/top area
• Helps prevent wires from rubbing, catching, or being exposed to heat and debris
• Reduces risk of accidental contact with wiring while accessing the cooktop
• Can resolve issues caused by damaged or displaced wiring covers (visible wire exposure, snagging)

• One top wire cover

• Disconnect power to the appliance before inspecting or replacing the cover
• Remove cooktop or access panel per service instructions to reach the wiring area
• Align cover over the wiring harness and secure with the original fasteners or clips
• If wiring shows damage or overheating, replace/repair wiring per OEM instructions

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Insulation pad that installs on top of the oven cavity to reduce heat transfer and dampen sound. Replace if torn, compressed, or missing for safety.

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Flat wire shelf that slides into your oven's side supports to hold bakeware at the correct height. Replace if bent, warped, or missing a rack position.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven not heating or baking unevenly? A failed bake element is the likely cause. This DIY repair typically takes 15-30 minutes with basic tools.

Broiler not heating or won't turn on? This broil element assembly restores high-heat broiling. Most DIYers complete this repair in under 30 minutes.

Fix F2 or F3 error codes with a new oven temperature sensor. Restores accurate heating when your oven shuts off or won't maintain temperature. 10-15 min DIY.

Holds and powers the interior oven light bulb for visibility while cooking. Replace if light flickers, won't turn on, or bulbs burn out frequently. Verify fit by your model number before ordering.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

Clear glass lens that protects your oven light bulb from heat, grease, and debris. Replace when cracked, discolored, or missing to restore visibility.

Black vertical side trim piece for wall ovens. Covers the exterior edge panel. Replace when cracked, chipped, discolored, or missing for a clean look.

This vertical door trim restores the finished edge and appearance of the refrigerator door while covering the gap between the door and cabinet. It replaces damaged, cracked, or missing trim to improve door fit and look. What it does:

• Covers and protects the door side edge, hiding raw edges and fasteners
• Restores a uniform appearance when trim is cracked, warped, or missing
• Helps maintain a snug door fit by providing the intended finished surface
• Matches the original color and profile for a clean, factory look

• High-level replacement; remove any shelves or panels that block access before installing
• Align the trim with the door edge and engage clips or fasteners; use hand tools only as required
• Inspect mounting clips and hardware; replace any broken clips to ensure secure fit

Black interior vent trim for wall ovens. Replaces cracked, discolored, or missing trim pieces around the interior vent opening. Cosmetic component.

Base rail that guides and supports oven racks for smooth sliding. Replace this structural component if cracked, bent, or worn to restore proper rack movement.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Oven door hinge receiver that mounts to the oven frame. Replace if cracked, damaged, or worn to properly secure the door hinge and restore door function.

Oven vent box assembly that routes hot air and steam from the cooking cavity. Replace if cracked, damaged, or missing to restore proper ventilation.

Vent tube for electric ranges and ovens. Connects oven cavity to exhaust system. Replace if cracked, broken, or missing to restore proper ventilation.

Oven cavity support plate mounts inside the oven chamber to provide structural support. Replace if plate is cracked, bent, warped, or missing.

ST10-16 X 7/16"

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

White screw secures panels and trim on ovens and ranges. Replace stripped, corroded, or missing fasteners to restore proper fit and stop rattles.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
