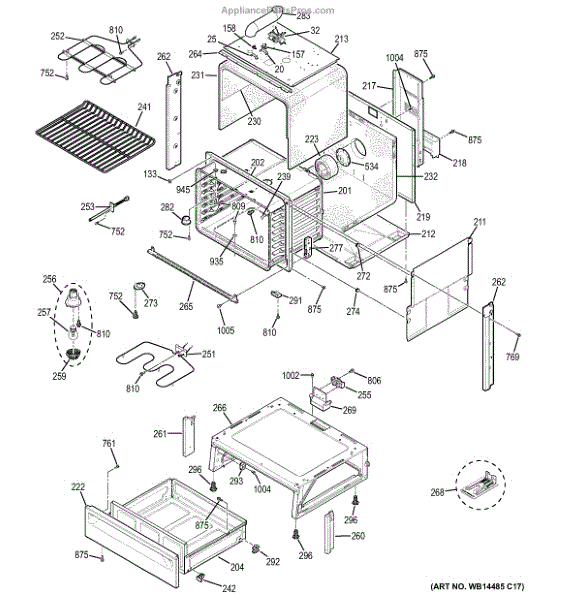

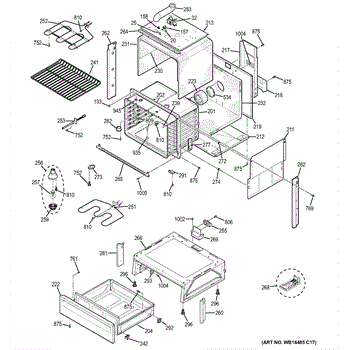

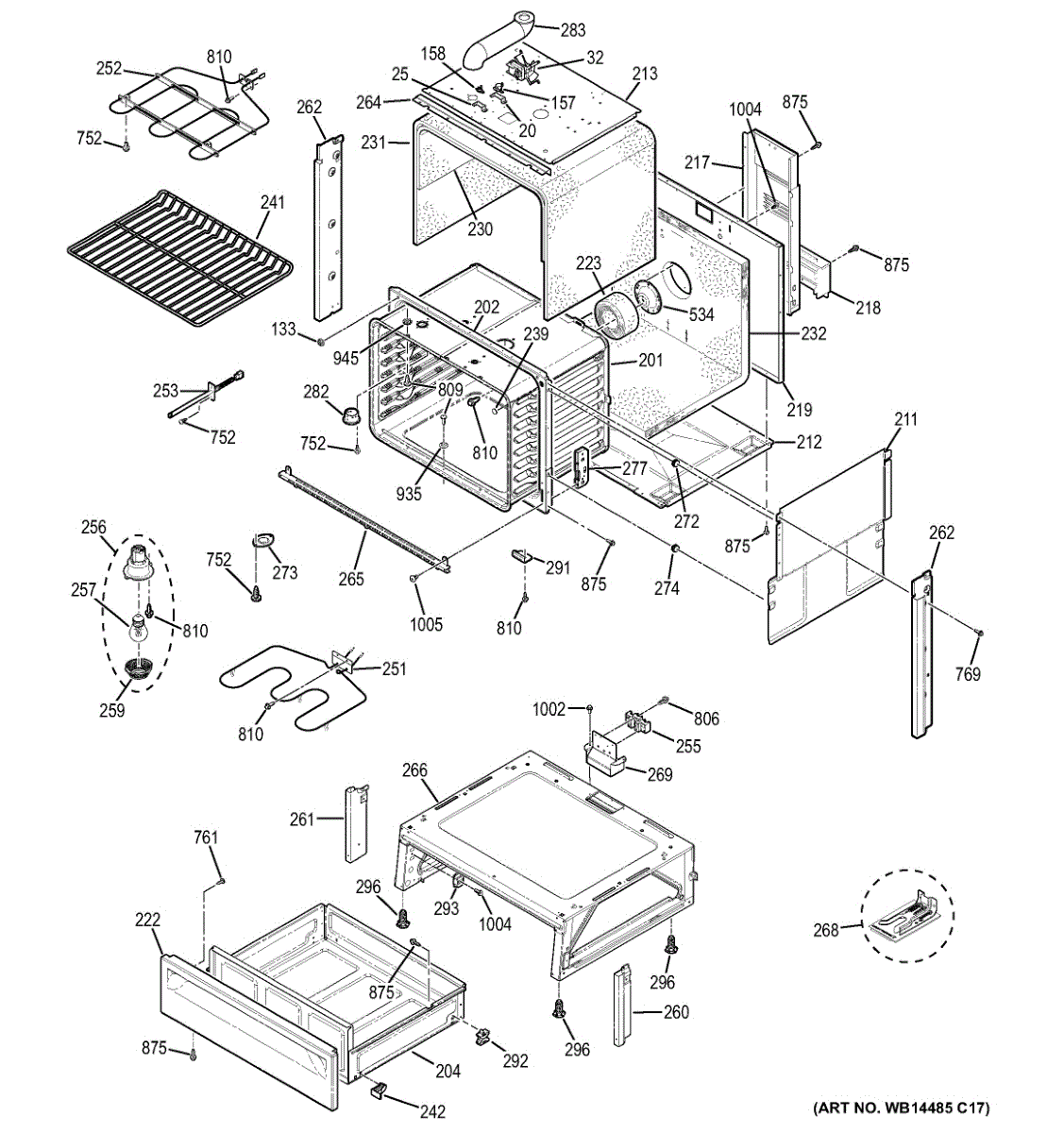

Parts for Ge JS250DF2BB: Body Parts

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

This limit switch is a small position-sensing microswitch used in the oven door lock system. It tells the control when the latch is open or closed so the door can lock/unlock correctly and self-clean can run safely.

• Detects the oven door latch position and sends an on/off signal to the control
• Helps prevent self-clean from starting unless the latch is in the correct position
• Common symptoms: door won't lock or unlock, self-clean won't start or cancels, "lock door"/F9-style lock errors
• Restores proper latch feedback so the control knows when the door is locked

• Disconnect power at the breaker before servicing
• Access the door lock/latch assembly; note wire positions and orientation of the old switch
• Transfer wires one at a time and mount the new switch in the same orientation so the actuator engages the latch cam
• After reassembly, verify latch operation before starting a self-clean cycle

Front frame trim for ovens and ranges. Replaces cracked, broken, or damaged trim pieces around the oven door opening. Restores appearance and structure.

Replace your range's warming drawer body if the original is cracked, warped, or damaged. This structural component forms the main housing of the drawer.

Insulation retainer clip secures insulation panels inside your oven cavity. Replace if clip is broken, cracked, or missing to keep insulation in place.

Black drawer panel for electric ranges. Replaces cracked, faded, or damaged front panels on warming or storage drawers. Restores appearance.

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Drawer wedge guide aligns and stabilizes your range's lower drawer for smooth operation. Replace if cracked, broken, worn, or missing to eliminate wobble.

This lower bake element restores consistent heat at the bottom of the oven during Bake. Replacing it brings back even, reliable baking performance.

• Produces radiant heat in the lower oven cavity during Bake cycles
• Works with the oven's controls to reach and maintain set temperature
• Common symptoms of failure: no heat in bake, long preheat, uneven or undercooked results
• Replace if the element is cracked, blistered, pitted, or shows visible hot spots

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove oven racks; take out element mounting screws and gently pull the element forward
• Transfer the two wires to the new element one at a time; avoid letting wires slip back into the insulation
• Reinstall using existing hardware, restore power, and test for proper heating

If your oven won't broil or browns unevenly, the broil element may be burned out. This heating element restores top heat for proper broiling and browning.

Fix F2 or F3 error codes with a new oven temperature sensor. Restores accurate heating when your oven shuts off or won't maintain temperature. 10-15 min DIY.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Holds and powers the interior oven light bulb for visibility while cooking. Replace if light flickers, won't turn on, or bulbs burn out frequently. Verify fit by your model number before ordering.

Replace your cracked or missing oven light lens to restore safe illumination. This cover protects the bulb and diffuses light for clear visibility while cooking. Confirm fit by model number.

This vertical door trim replaces the left-side decorative trim on compatible refrigerators to restore a finished appearance and help protect the door edge. It matches black exterior trim for a seamless look. What it does

• Covers and finishes the exposed edge of the refrigerator door for a clean appearance
• Helps protect the door edge from dings and wear
• Replaces cracked, chipped or faded trim that affects the appliance's look
• Snaps or screws into place to secure the door edge trim

• High-level install: remove door or access trim fasteners per your model's service manual, remove old trim, then align and secure the replacement trim
• Use appropriate screwdriver or trim tool to avoid scratching adjoining surfaces
• Disconnect power only if instructed by the appliance service manual for your repair procedure

Black front trim frame for electric range. Covers gaps and restores finished edge around door or control panel. Replaces cracked, scratched, or missing trim.

Range base rivet assembly that secures internal components. Replace if rivets are broken, missing, or causing loose structural connections in your range.

Secures your range to the floor or wall to prevent forward tipping. Replace if bracket is bent, broken, or missing during appliance relocation.

Secures and organizes high-voltage wiring connections on your range chassis. Replace if cracked, broken, or missing to restore stable power contact points.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

This is a protective cover used inside a cooking appliance such as a range or oven. It shields internal components from heat, grease, and debris during normal operation. Replace this cover if it is warped, cracked, corroded, or damaged, which can expose sensitive parts and affect cooking performance.

Oven cavity support plate mounts inside the oven chamber to provide structural support. Replace if plate is cracked, bent, warped, or missing.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Mounting screw secures panels, trim, and internal components in ranges and ovens. Replace if missing, stripped, or damaged to restore proper fit.

Black. 8-18 AB HXW 3/8

Includes 12 washers.

Replacement screw secures panels, brackets, and trim inside your oven or range. Restores tight fit when original hardware is missing, stripped, or damaged.

Package of 12

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
