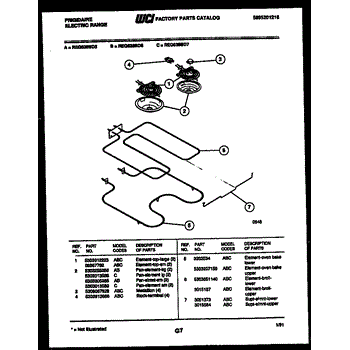

Parts for Frigidaire REG638BDL7: 07 - Broiler Parts

If your burner isn't heating evenly or won't heat at all, this 6-inch coil element typically solves the problem. Simple plug-in replacement. Video guide.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replace cracked, rusted, or stained drip pans under your range burners. Catches spills and protects cooktop. Easy snap-in installation, no tools needed.

Chrome drip pan installs beneath range burner elements to catch spills and drips. Replaces cracked, rusted, or worn pans for a clean cooktop appearance.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

The bake element is the lower oven heating element that produces heat during bake cycles. Replacing a failed element restores proper preheating and even baking performance when your range no longer heats correctly in bake mode.

• Provides bottom-up heat in bake mode to reach and maintain set temperatures
• Typical symptoms include no heat in bake, excessively long preheat, or uneven/undercooked results
• Visual clues of failure may include blisters, cracks, or burnt spots on the element
• A shorted element may trip a household breaker when energized

• Disconnect power at the breaker before servicing; verify no power to the range
• Remove oven racks; unfasten the element from the rear wall and gently pull it forward to access terminals
• Transfer the wires to the new element one at a time; do not let wires retract into the rear panel
• Reinstall and secure the element, ensure connections are fully seated and clear of metal, restore power, and test

Oven won't heat or bake properly? This bottom bake element converts electricity to heat for even baking. Simple DIY fix—2 screws, 2 wire terminals.

Broiler not heating or element burned out? Replace this top broil element to restore radiant heat. Easy DIY fix with basic tools in 30 minutes or less.

Support bracket that secures the broil heating element in your range oven. Replace if cracked, broken, or missing to properly mount the broiler element.
