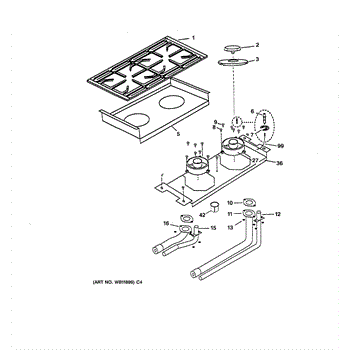

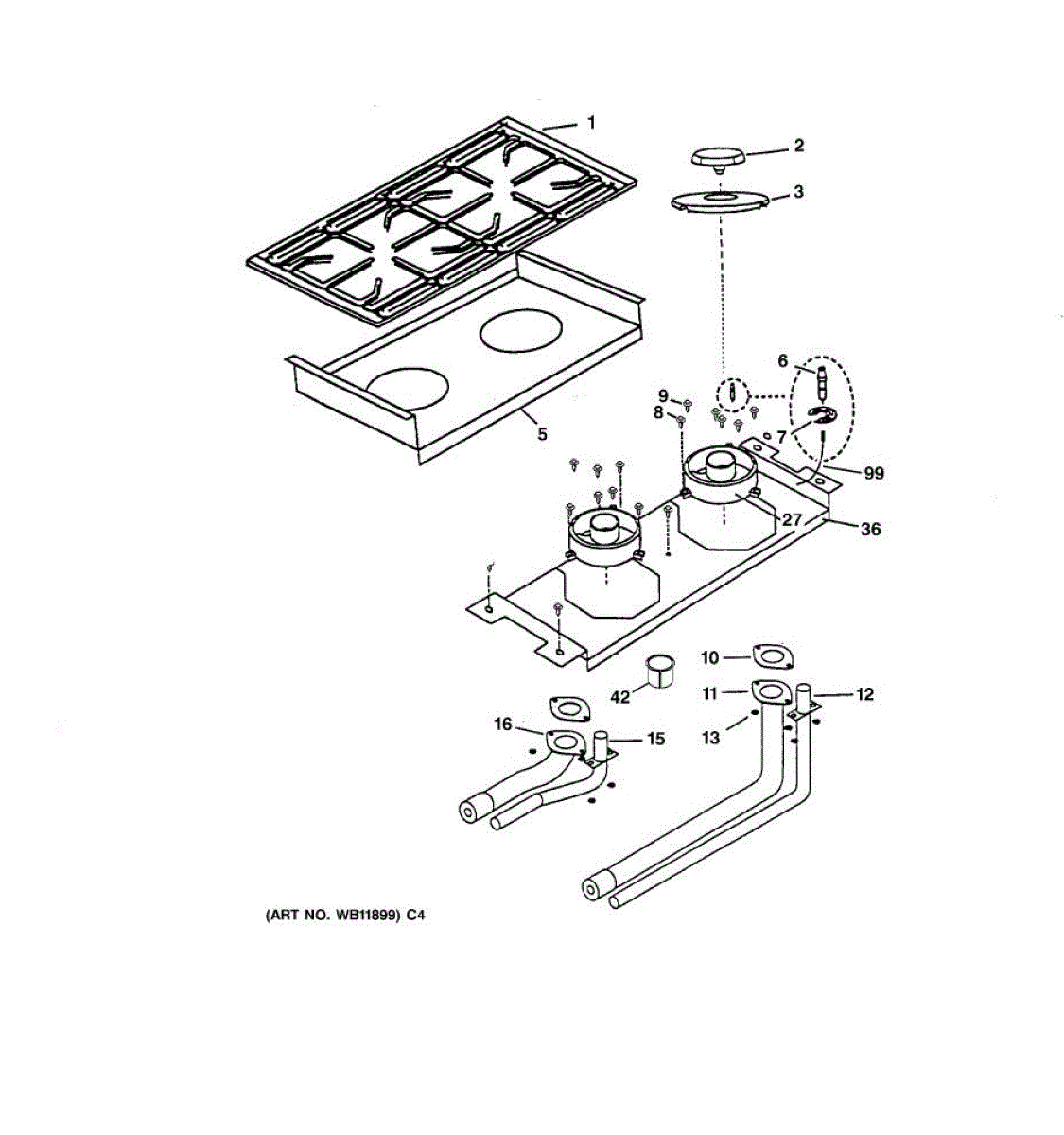

Parts for Ge ZDP48N6DD1SS: 04 - Burner Assembly Parts

Replace your worn, cracked, or missing range top grate. This cast iron cooking grate sits over the burner to support pots and pans during cooking.

Per Ge Must Also Order WB28X10018.

If your gas cooktop burner won't light or clicks continuously, this igniter electrode creates the spark to ignite the gas. Easy DIY repair in 15 minutes.

Note: Pack of 2.

Screws secure the burner base to your cooktop chassis for stable, safe cooking. Replace worn, missing, or damaged fasteners to restore proper alignment.

Replacement venturi bolt for gas cooktops. Secures the venturi tube to the burner assembly. Order if your original bolt is missing, stripped, or damaged.

This is a venturi gasket that serves as a replacement for use with gas ranges. The gasket is used on the venturi tubes, which extend from the burner to the control valves. The gaskets provide a seal, so there is not too much air mixing with the gas. If they are not working properly, they could also let the gas out beneath the burner, which would be dangerous.Over time, the gasket material will start to wear down, break, and crumble and will need to be replaced. Additionally, when doing other work, such as installing a new head on the range, it is advisable to change out the gasket at the same time if it appears worn. The replacement for this part is relatively simple.This venturi gasket will work with many models of gas stoves from General Electric. The gasket is a genuine OEM replacement part that has been sourced directly from the manufacturer. The gasket is sold individually. Owners might want to have a couple of replacements on hand.

Rear main venturi for gas range burners. Directs gas flow from the valve to the burner. Replace if cracked, damaged, or causing improper gas delivery.

Hex venturi nut for gas cooktop burner assembly. Secures venturi tube to gas valve. Replace if stripped, corroded, or missing for proper installation.

Main venturi front for gas range burners. Installs between the gas valve and burner to direct gas flow. Replace if cracked, damaged, or corroded.

Per Ge Must Also Order WB32X10011.

Burner hanger bracket for range cooktops. Secures burner assembly in place. Replace if bracket is bent, broken, or missing for proper burner support.

Air shutter for cooktop burners. Adjusts air-to-gas ratio for proper flame. Replace if cracked, broken, or missing to restore burner operation.
