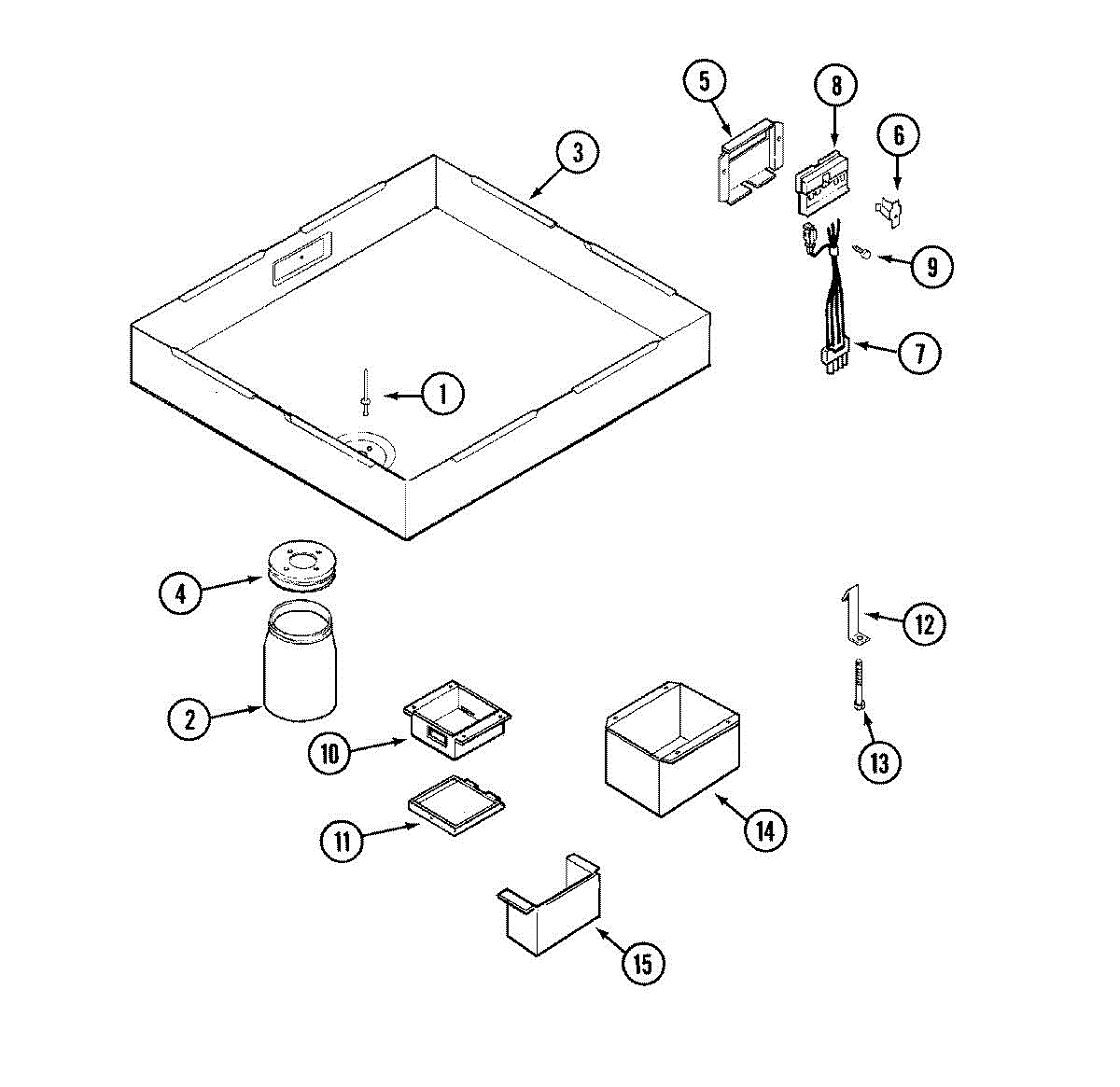

Parts for Jenn-Air CVEX4100B: 02 - Burner Box Parts

Pop rivet secures sheet-metal panels, brackets, and burner jar lids on appliances. Replace missing, drilled-out, or damaged rivets for permanent hold.

Grease drain jar collects drippings beneath your grill cooking surface. Replace if cracked, broken, or missing to prevent messy grease buildup.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

Includes harness.

This 1/4-20 screw is a threaded fastener used to secure panels and components on compatible appliances, restoring proper fit and reducing vibration or movement. Easy to replace with common hand tools. What it does:

• Secures panels, brackets or components to keep parts properly aligned
• Stops rattling or vibration caused by loose fasteners
• Restores a solid attachment where a missing or damaged screw causes gaps
• Matches the standard 1/4-20 machine screw thread for correct fit

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct sized driver or socket to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid overtightening to prevent damage
• Keep removed hardware in a labeled bag for reassembly
