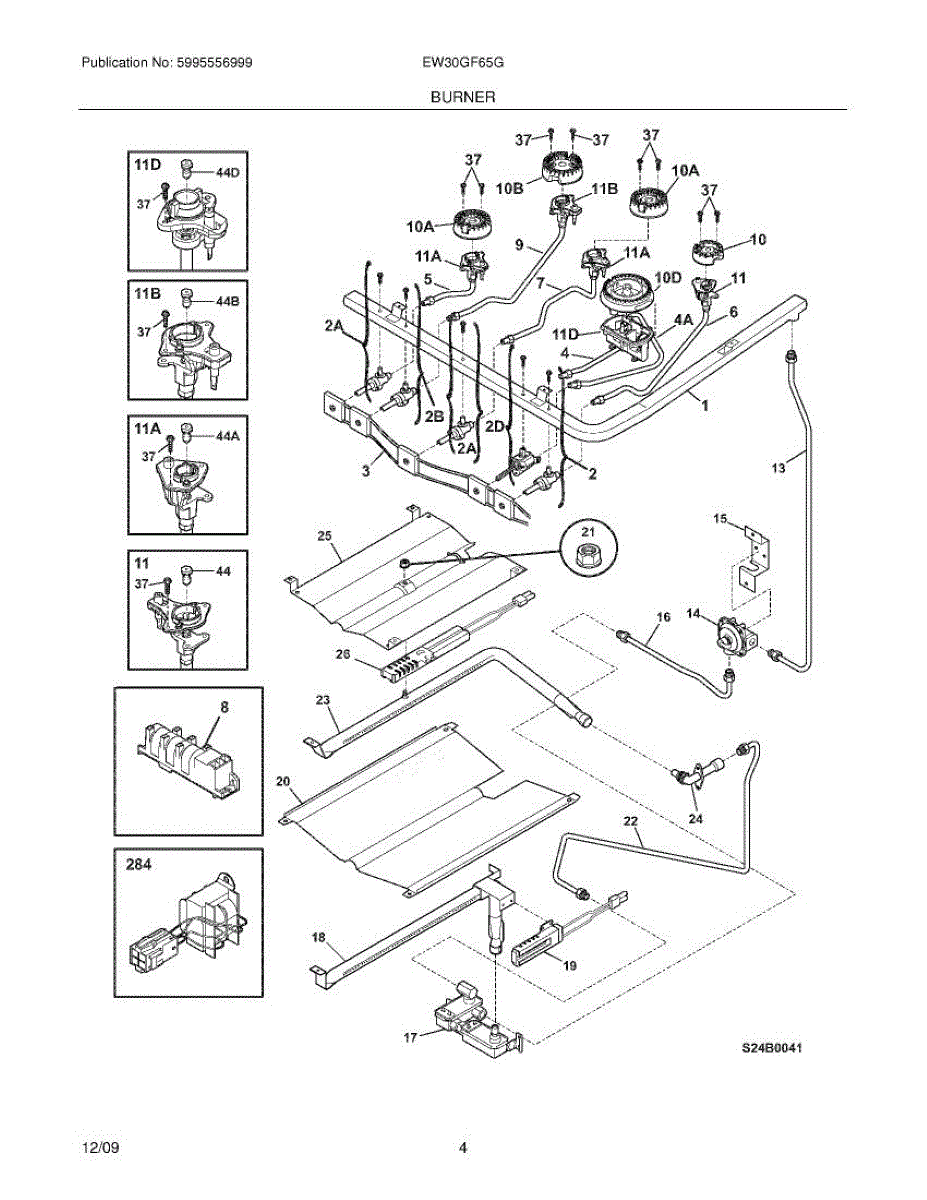

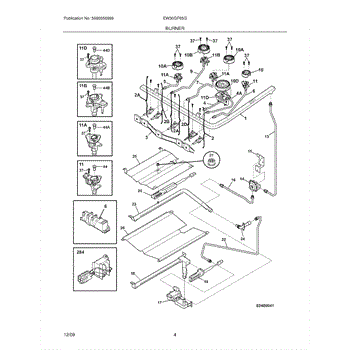

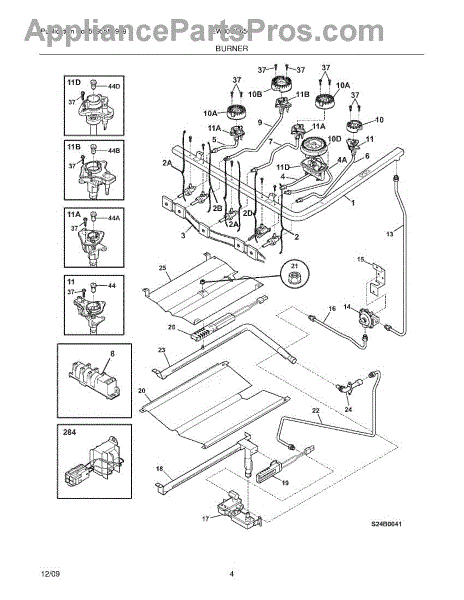

Parts for Electrolux EW30GF65GBE: 05 - Burner Parts

Gas manifold assembly for ranges. Distributes gas to burners. Replace if cracked, leaking, or damaged. Includes connection points for burner valves.

Replace a faulty top burner valve if your cooktop burner won't ignite, flame is too low, or gas won't shut off. Moderate DIY repair in 30-45 minutes.

This genuine wiring harness connects and routes power and signals between refrigerator components to restore reliable electrical connections and component control. It replaces damaged or worn wiring to stop intermittent faults and loss of function. What it does:

• Carries power and signal between fridge modules and components for normal operation
• Replaces frayed, burned, or broken wires and damaged connector ends
• Helps stop intermittent component failures, no-power conditions, and electrical arcing
• Restores secure plug-and-play connections for affected circuits

• One complete harness assembly as shown

• Disconnect power to the appliance before starting any work
• Follow OEM routing and secure with existing clips; avoid pinching or sharp edges
• Match connector shapes and colors; do not force connectors to fit

Gas supply tube for range burners. Installs between the manifold and burner valve. Replace if cracked, corroded, or leaking to restore safe gas flow.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly delivers and meters gas to the oven/range ignitor so burners light reliably. Replace a damaged or clogged assembly to restore consistent ignition and proper burner lighting on compatible gas appliances. What it does:

• Routes and meters gas flow to the ignitor so the burner can light
• Supports consistent ignition timing for oven and range burners
• Commonly used when an oven won't light, has weak or uneven flames, or ignition failures occur
• Helps prevent gas leaks by providing a secure connection when installed correctly

• Disconnect power and shut off the gas supply before starting any work
• Only install on compatible appliances; follow the OEM instructions
• Hand-tighten connections and check for leaks with a soapy-water solution after restoring gas

Combines spark igniter electrode with orifice holder for gas surface burners. Replace when cracked, broken, or no longer securely holding components in place.

Ignitor and orifice assembly for gas range burners. Replace if cracked, damaged, or worn to restore proper ignition. Installs at burner base.

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

Burner won't light or flame is weak? This gas valve controls flow to your range surface burner for reliable ignition and heat control. Moderate DIY.

Replace a cracked, clogged, or damaged surface burner head on your gas range or cooktop. Restores proper gas distribution and flame pattern.

Oven won't heat or takes too long to ignite? This gas range igniter draws current to light the burner. Straightforward DIY repair in under an hour.

Replace your gas range oven baffle if cracked, damaged, or missing. Directs heat circulation inside the oven cavity for even cooking performance.

Burner tube for gas ranges. Connects gas valve to burner assembly. Replace if cracked, corroded, or leaking to restore proper gas flow to cooktop burners.

Lower baking element that installs in the bottom of your range oven cavity. Replace if cracked, warped, broken, or no longer heating evenly during use.

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

The Gas Oven Ignitor is an OEM replacement part for Frigidaire gas ranges and ovens. It uses electricity to generate a spark that ignites the burner flames for heating. To check if the ignitor is the issue, look inside the broiler oven while the oven is turned on. If the element is glowing a bright red, it's getting power. If not, it may not be getting enough power to ignite the gas and should be replaced.

Symptoms of a bad gas ignitor can include:

• The oven or burners failing to ignite or stay lit consistently
• Diminishing heating performance over time
• Burners that intermittently ignite or go out

Causes stem from normal wear with extended use. The ignitor's ability to spark diminishes as parts degrade. No spark means no gas ignition.

This OEM replacement part is compatible with Electrolux, Gibson, Kelvinator, and Kenmore brands.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Burner orifice regulates gas flow to your range burners. Replace if clogged with debris, corroded, or damaged to restore proper combustion and heat output.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

If your range control panel is unresponsive or the display won't light up, the control transformer may have failed. Supplies low-voltage power to controls.

This replacement shield is a molded protective cover that helps keep appliance wiring and internal components safe from heat, moisture and accidental contact. It restores the appliance's original protection and helps maintain reliable operation. What it does:

• Covers and protects wiring, terminals or control components from debris and direct heat
• Prevents accidental contact with live parts during normal use
• Helps reduce the risk of shorting or damage from loose debris
• Restores the appliance's factory shielding to reduce noise from vibrating parts

• One replacement shield

• Disconnect power before servicing to avoid shock risk
• Handle carefully; edges may be sharp and clips or tabs can be brittle on older units
• Retain and reuse factory fasteners when possible; replace broken clips with OEM parts
• Verify proper alignment and secure fit so the shield does not contact moving parts

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Secures and stabilizes internal components in your gas range. Replace this mounting bracket if cracked, bent, or worn to restore proper alignment.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
