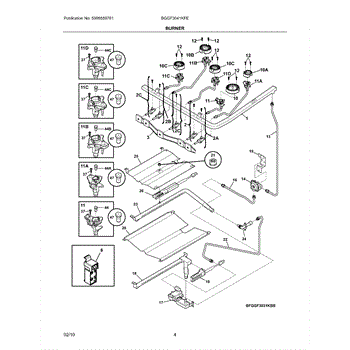

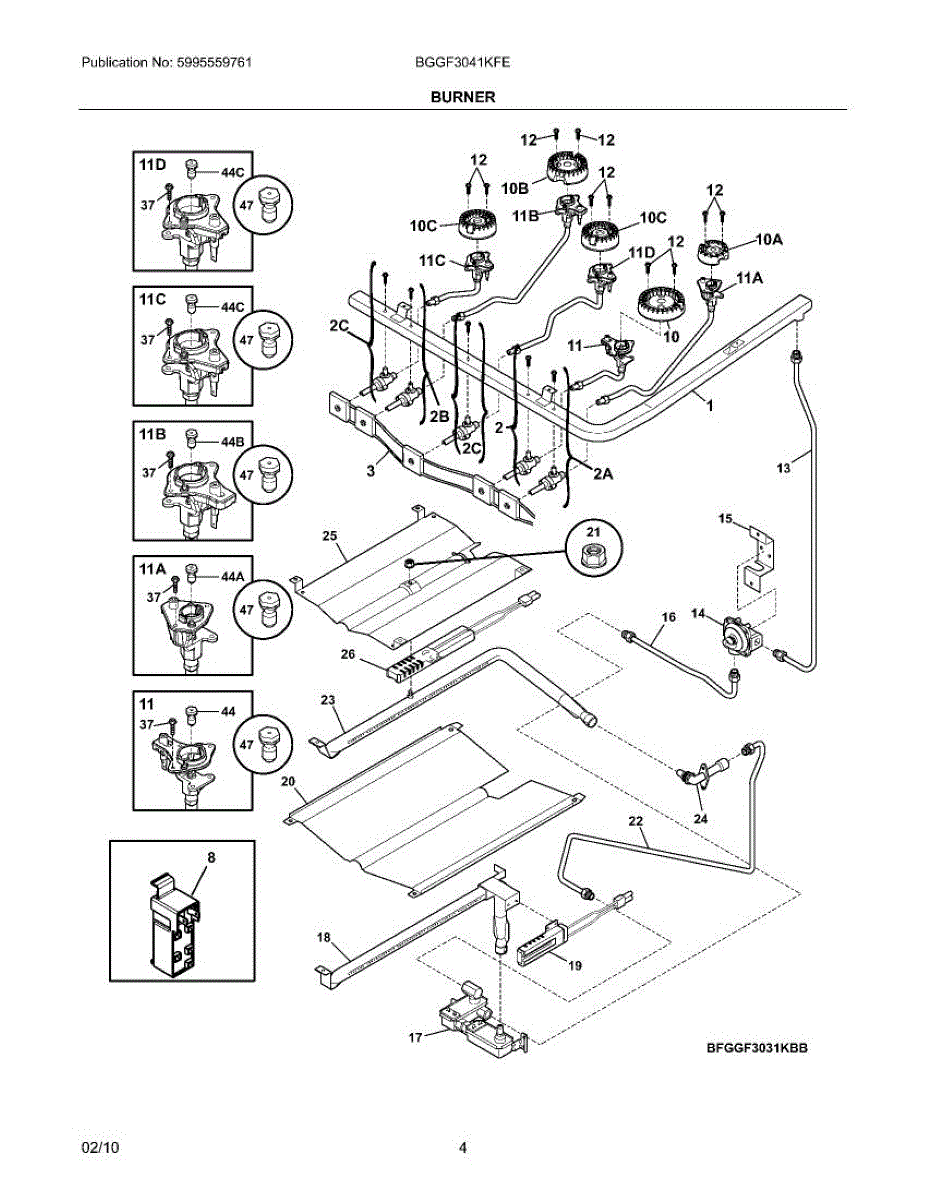

Parts for Frigidaire BGGF3041KFE: 05 - Burner Parts

Gas manifold pipe for gas ranges. Distributes gas from supply to burners. Replace if cracked, corroded, leaking, or damaged to restore safe operation.

This safety valve controls gas flow to the oven burner. When signaled by the igniter, it opens to allow ignition and helps maintain consistent heat, supporting safe, reliable preheating and baking performance.

• Regulates gas flow to the oven burner under control of the igniter and thermostat/electronic control
• Prevents gas from flowing until proper ignition conditions are met
• Common symptoms: oven won't ignite or heat, intermittent heating, extended preheat time, or weak/unstable flame
• Often inspected when the igniter glows but the burner does not light

• Disconnect power and shut off the gas supply before servicing
• Transfer any model-specific fittings or brackets from the original valve
• Use approved thread sealant on threaded connections; support tubing and avoid overtightening
• After installation, leak-check every connection with a soap-and-water or leak-detection solution

Burner won't light or knob won't turn? This top burner valve controls gas flow to restore reliable ignition and flame control. DIY-friendly replacement.

Replace a gas range burner valve that's broken, stuck open, or causing hard-to-adjust flames. Moderate DIY repair requires raising the stovetop.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replaces a cracked, corroded, or damaged burner on your gas range or cooktop. Installs on top to restore the heat source for your cooking zone.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

Combined spark igniter and orifice holder for gas surface burners. Replace when the assembly is cracked, worn, or damaged to restore proper burner operation.

Replace a cracked, clogged, or damaged ignitor orifice assembly under your gas range cooktop. Routes gas to surface burner and houses spark electrode.

This surface burner ignitor/orifice assembly directs gas through a calibrated orifice and provides the spark to ignite it. Replacing a worn or damaged assembly restores consistent lighting and an even flame on the affected rangetop burner.

• Routes gas from the valve through the orifice to the burner head
• Positions the ignitor for reliable sparking and quick ignition
• Helps maintain correct flame size and pattern on that burner
• Common symptoms: burner won't light, clicks without flame, delayed ignition, weak or uneven flame

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner heads; lift the cooktop to access the assemblies
• Note wire routing and original orifice location; transfer any reusable hardware from the old part
• After installation, restore gas and check connections for leaks, then test spark and flame

Replace this ignitor orifice assembly if the electrode is cracked, broken, or worn. Installs on gas range surface burners to restore spark ignition.

Integrated ignitor and orifice assembly for gas range burners. Replace when ignitor electrodes are damaged, orifice threads are stripped, or mounting holes are worn.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

Burner won't light or flame is weak? This gas valve controls flow to your range surface burner for reliable ignition and heat control. Moderate DIY.

Replace a cracked, clogged, or damaged surface burner head on your gas range or cooktop. Restores proper gas distribution and flame pattern.

Oven won't heat or takes too long to ignite? This gas range igniter draws current to light the burner. Straightforward DIY repair in under an hour.

Replace your gas range oven baffle if cracked, damaged, or missing. Directs heat circulation inside the oven cavity for even cooking performance.

Burner tube for gas ranges. Connects gas valve to burner assembly. Replace if cracked, corroded, or leaking to restore proper gas flow to cooktop burners.

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

The Gas Oven Ignitor is an OEM replacement part for Frigidaire gas ranges and ovens. It uses electricity to generate a spark that ignites the burner flames for heating. To check if the ignitor is the issue, look inside the broiler oven while the oven is turned on. If the element is glowing a bright red, it's getting power. If not, it may not be getting enough power to ignite the gas and should be replaced.

Symptoms of a bad gas ignitor can include:

• The oven or burners failing to ignite or stay lit consistently
• Diminishing heating performance over time
• Burners that intermittently ignite or go out

Causes stem from normal wear with extended use. The ignitor's ability to spark diminishes as parts degrade. No spark means no gas ignition.

This OEM replacement part is compatible with Electrolux, Gibson, Kelvinator, and Kenmore brands.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Meters gas flow to your range or cooktop burner for proper flame size. Replace worn, clogged, or missing orifices or when converting between propane and natural gas.

Burner orifice regulates gas flow to your range burners. Replace if clogged with debris, corroded, or damaged to restore proper combustion and heat output.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Convert your gas range from natural gas to liquid propane with this LP conversion kit. Includes all necessary orifices for burners when switching fuel types.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Replacement instruction manual for your gas range. Includes operating procedures, care guidelines, and maintenance information for safe use.

Secures and stabilizes internal components in your gas range. Replace this mounting bracket if cracked, bent, or worn to restore proper alignment.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
