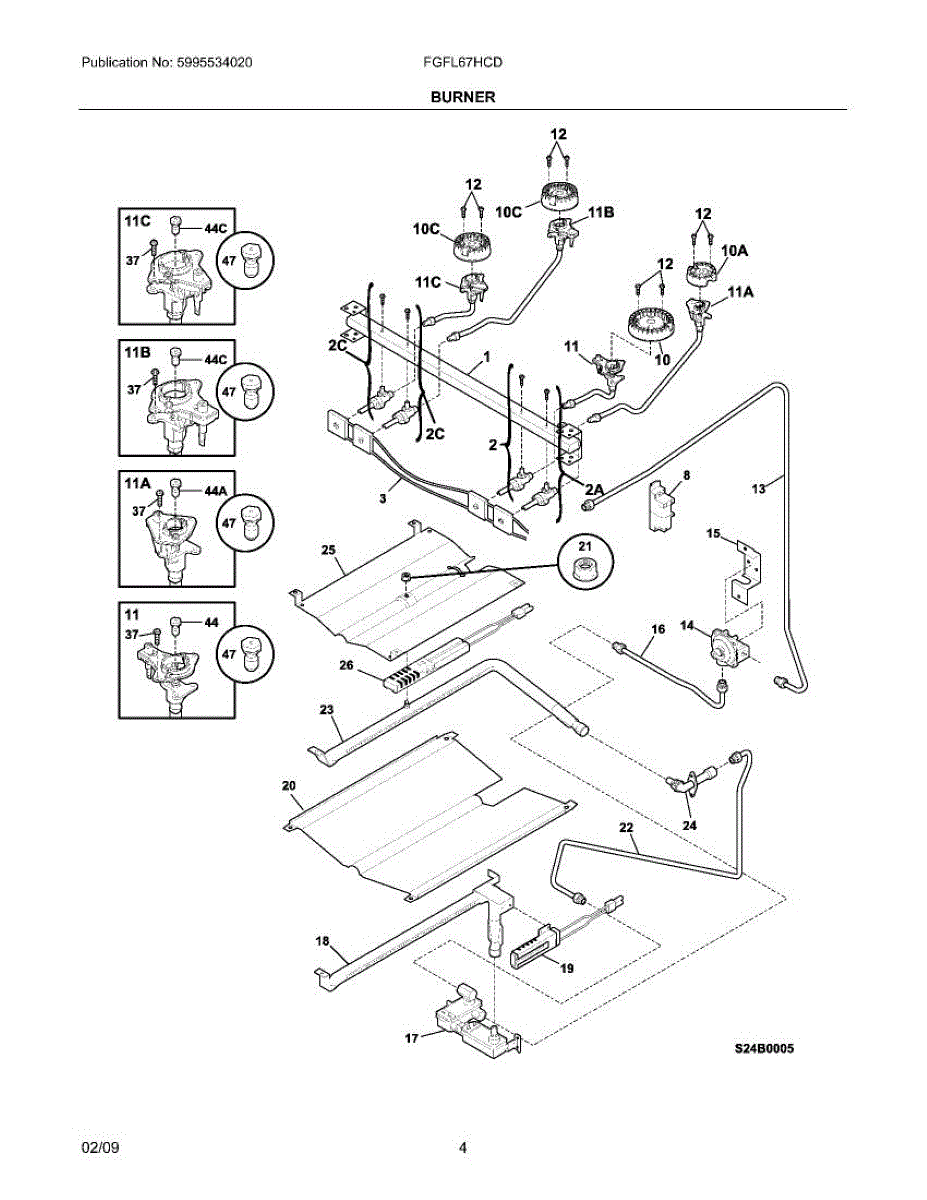

Parts for Frigidaire FGFL67HCD: 05 - Burner Parts

This manifold pipe routes gas from the valve to your range burners. Replace yours if it's cracked, corroded, or leaking to restore safe fuel distribution.

This safety valve controls gas flow to the oven burner. When signaled by the igniter, it opens to allow ignition and helps maintain consistent heat, supporting safe, reliable preheating and baking performance.

• Regulates gas flow to the oven burner under control of the igniter and thermostat/electronic control
• Prevents gas from flowing until proper ignition conditions are met
• Common symptoms: oven won't ignite or heat, intermittent heating, extended preheat time, or weak/unstable flame
• Often inspected when the igniter glows but the burner does not light

• Disconnect power and shut off the gas supply before servicing
• Transfer any model-specific fittings or brackets from the original valve
• Use approved thread sealant on threaded connections; support tubing and avoid overtightening
• After installation, leak-check every connection with a soap-and-water or leak-detection solution

Burner won't light or knob won't turn? This top burner valve controls gas flow to restore reliable ignition and flame control. DIY-friendly replacement.

Replace a gas range burner valve that's broken, stuck open, or causing hard-to-adjust flames. Moderate DIY repair requires raising the stovetop.

This wiring harness routes power and control signals between key components inside your range or wall oven. Replace a damaged harness to restore safe, reliable operation and prevent intermittent heat, shorts, or non-working burners and oven functions.

• Distributes electrical power and signals between controls, switches, heating elements/igniters, and safety components
• Maintains correct connector orientation and wire routing for dependable operation
• Typical symptoms: no heat in oven or on surface burners, intermittent operation, breaker tripping, or visible burnt/melted wiring
• Restores stable connections to reduce arcing and overheating

• Disconnect power at the circuit breaker; for gas ranges, also shut off the gas supply
• Label or photograph all connections and transfer one wire at a time to avoid miswiring
• Route the harness exactly as original; keep away from sharp edges and hot surfaces; secure with existing clips/ties
• If connectors don't match or any terminals are heat-damaged, stop and inspect mating components.

Gas burners won't ignite? A faulty spark module may be the issue. This part sends electrical current to igniters. DIY-friendly, takes minutes.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

Burner orifice meters gas flow to your range burner. Replace if clogged, damaged, or wrong size for fuel type conversion between natural gas and propane.

The Igniter and Orifice Assembly is an OEM part for Frigidaire ranges. This part ignites the gas burners and regulates the flow of gas through the orifices.

Causes of a bad Igniter and Orifice Assembly can range from electrical issues or corrosion affecting the igniter to clogs or obstructions in the gas orifices.

Symptoms of a faulty Igniter and Orifice Assembly include:

• Difficulty igniting or relighting burners
• Uneven or inconsistent flame patterns
• Burners not staying lit or extinguishing spontaneously
• Clicking or sparking noises during ignition attempts

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This surface burner ignitor/orifice assembly directs gas through a calibrated orifice and provides the spark to ignite it. Replacing a worn or damaged assembly restores consistent lighting and an even flame on the affected rangetop burner.

• Routes gas from the valve through the orifice to the burner head
• Positions the ignitor for reliable sparking and quick ignition
• Helps maintain correct flame size and pattern on that burner
• Common symptoms: burner won't light, clicks without flame, delayed ignition, weak or uneven flame

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner heads; lift the cooktop to access the assemblies
• Note wire routing and original orifice location; transfer any reusable hardware from the old part
• After installation, restore gas and check connections for leaks, then test spark and flame

Integrated ignitor and orifice assembly for gas range burners. Replace when ignitor electrodes are damaged, orifice threads are stripped, or mounting holes are worn.

Gas supply tube for ranges. Connects gas supply to burners. Replace if cracked, has pinholes, or shows signs of wear to prevent leaks. Direct fit.

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

Burner won't light or flame is weak? This gas valve controls flow to your range surface burner for reliable ignition and heat control. Moderate DIY.

Replace a cracked, clogged, or damaged surface burner head on your gas range or cooktop. Restores proper gas distribution and flame pattern.

Fix an oven that won't heat or takes too long to preheat. This igniter glows but may be too weak to open the gas valve. DIY repair in under an hour.

Replace your gas range oven baffle if cracked, damaged, or missing. Directs heat circulation inside the oven cavity for even cooking performance.

Burner tube for gas ranges. Connects gas valve to burner assembly. Replace if cracked, corroded, or leaking to restore proper gas flow to cooktop burners.

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

Fix delayed oven ignition or gas odor with this spark electrode. Creates the spark that lights your oven burner. DIY repair in under 1 hour.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Burner orifice regulates gas flow to your range burners. Replace if clogged with debris, corroded, or damaged to restore proper combustion and heat output.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Convert your gas range from natural gas to liquid propane with this LP conversion kit. Includes all necessary orifices for burners when switching fuel types.

Secures and stabilizes internal components in your gas range. Replace this mounting bracket if cracked, bent, or worn to restore proper alignment.

Replacement instruction manual for your gas range. Includes operating procedures, care guidelines, and maintenance information for safe use.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.
