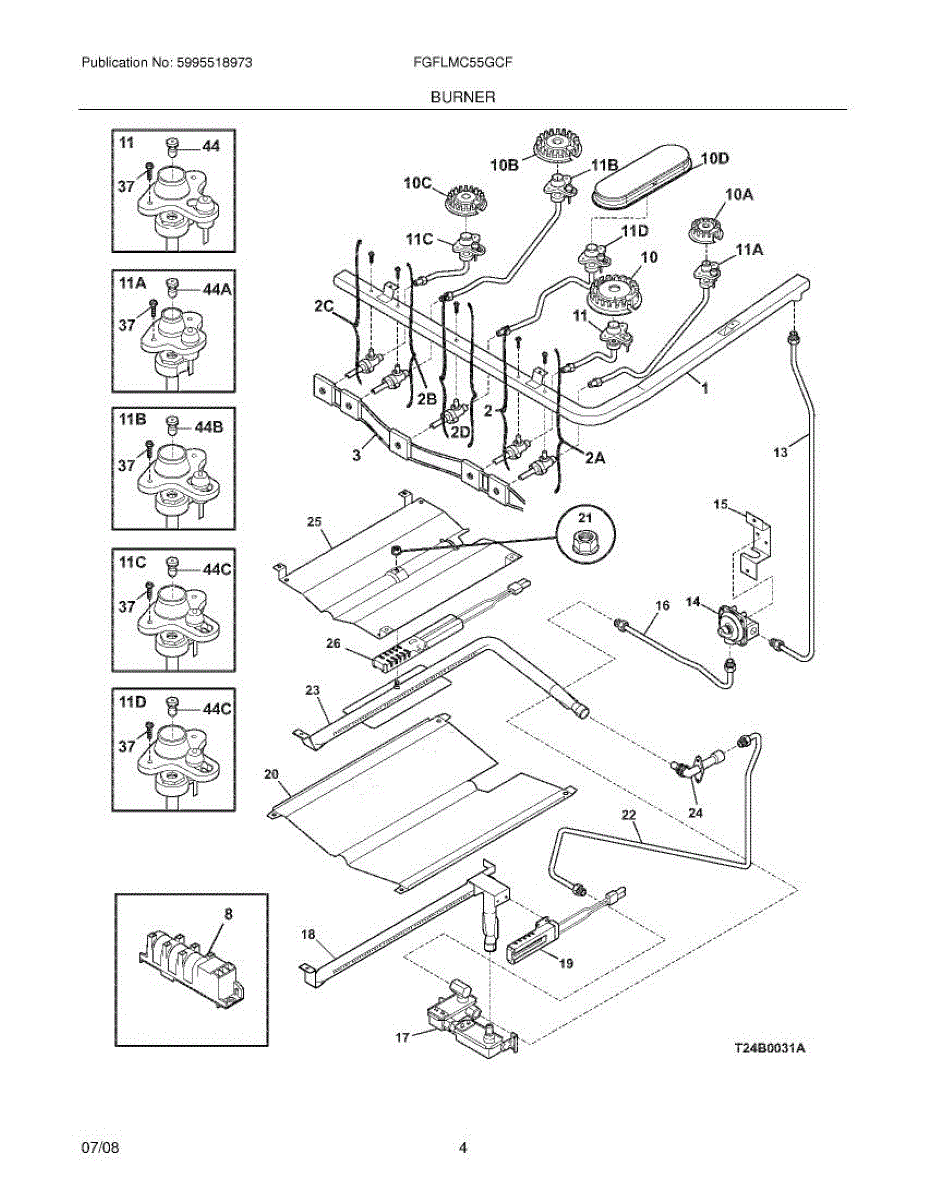

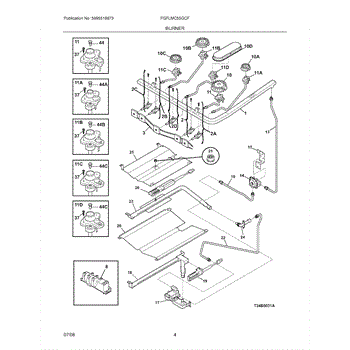

Parts for Frigidaire FGFLMC55GCF: 05 - Burner Parts

Fix a burner that won't ignite, stays on high, or has uneven flames with this range top burner valve. Controls gas flow to surface burners.

Burner won't light or flame won't adjust? This top burner valve controls gas flow to your cooktop burner. Restores proper flame control and ignition.

This water inlet valve controls water flow to the refrigerator dispenser and ice maker, restoring proper dispensing and ice production. It replaces a failed or leaking valve to stop drips and ensure steady water fill. What it does:

• Opens and closes water supply to the dispenser and ice maker when activated
• Stops water flow to prevent leaks when the valve is closed
• Helps restore normal dispenser flow and consistent ice maker fills
• Commonly replaced for leaking, no water dispensed, or weak dispenser flow

• Disconnect power and shut off the water supply before starting any work
• Drain lines and have towels ready; valve replacements can release trapped water
• Basic hand tools required; avoid overtightening fittings to prevent damage

Burner won't light or flame height won't adjust? This top burner valve controls gas flow to restore reliable ignition and precise flame control.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

The Stove Top Burner is an OEM part for Frigidaire cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This burner ensures even heat distribution, allowing for efficient cooking and precise temperature control.

Over time, stove top burners can become faulty due to various reasons. Causes of a bad stove top burner can include wear and tear from regular use, accumulation of food residue or grease, or damage from impact. These factors can lead to inconsistent heating or the burner failing to ignite.

Symptoms of a bad stove top burner include:

• The burner not heating up
• Uneven heating or hot spots
• Difficulty igniting the burner
• The burner producing unusual noises or smells

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This ignitor orifice assembly is the gas burner component that routes fuel to the oven ignitor so the bake/ broil burners light reliably. Replaces a worn or damaged orifice assembly to restore normal ignition and consistent burner flame. What it does

• Directs gas to the ignitor and burner for safe ignition of the oven burner
• Helps maintain a steady flame for even cooking when operating correctly
• Common symptom: oven fails to light or takes multiple tries to ignite
• Common symptom: weak or uneven flame around the burner head

• One ignitor orifice assembly as shown

• Disconnect power and shut off the gas supply before any service
• Designed to mount at the oven burner; handle components and tubing carefully to avoid damage
• Use appropriate fittings and check for gas leaks before restoring use

This ignitor orifice assembly is the gas orifice and mount used with the oven broil burner igniter to direct gas for reliable ignition. It restores the correct gas path and mounting where the orifice or bracket is damaged or worn. What it does:

• Provides the metered gas path from the manifold to the broil burner igniter to enable ignition.
• Holds the igniter in the correct position for consistent lighting of the broil burner.
• Common symptoms: broil burner won't light, weak or uneven broil flame, or igniter glows/clicks but no flame.
• OEM-designed replacement intended to match original fit and function.

• Turn off electrical power and shut off the gas supply before beginning any work.
• Remove access panels and top/burner components as needed to reach the broil burner area; keep track of screws and small parts.
• Inspect related parts (igniter, burner, mounting hardware) and replace any damaged components for safe operation.

The Igniter and Orifice Assembly is an OEM part for Frigidaire ranges and cooktops, designed to provide a reliable source of ignition for the gas burners. This assembly includes the igniter, which produces a spark to light the gas, and the orifice, which controls the flow of gas to the burner.

Causes for replacement may include wear and tear on the igniter, clogging or damage to the orifice, or electrical failures that prevent the igniter from sparking.

Symptoms of a bad Igniter and Orifice Assembly include:

• Difficulty lighting the burner or the burner not lighting at all
• An uneven or weak flame that does not adjust with the control knob
• Gas odor when the burner is turned on, indicating that gas is not igniting

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

Burner won't light or flame is weak? This gas valve controls flow to your range surface burner for reliable ignition and heat control. Moderate DIY.

Replace a cracked, clogged, or damaged surface burner head on your gas range or cooktop. Restores proper gas distribution and flame pattern.

Fix an oven that won't heat or takes too long to preheat. This igniter glows but may be too weak to open the gas valve. DIY repair in under an hour.

Replace your gas range oven baffle if cracked, damaged, or missing. Directs heat circulation inside the oven cavity for even cooking performance.

Burner tube for gas ranges. Connects gas valve to burner assembly. Replace if cracked, corroded, or leaking to restore proper gas flow to cooktop burners.

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

Fix delayed oven ignition or gas odor with this spark electrode. Creates the spark that lights your oven burner. DIY repair in under 1 hour.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

For 5k burner.

For 12k burner.

Burner orifice installs in the gas valve to control fuel flow to the cooktop burner. Replace if cracked, clogged, or when converting between LP and natural gas.

Size: 8-18ab x 0.5 inch.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.
