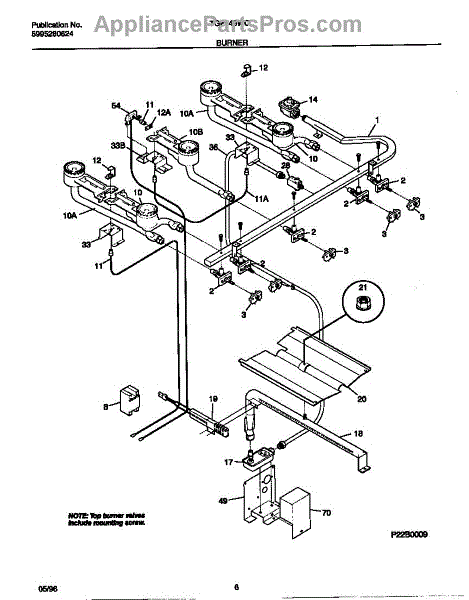

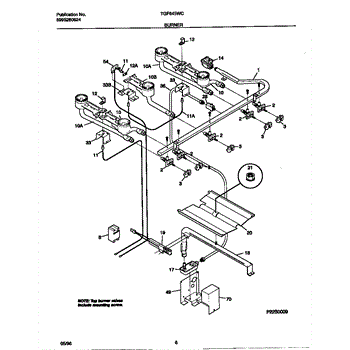

Parts for Frigidaire TGF645WCD3: 04 - Burner Parts

By Frigidaire. 2+0 module type. Employs two spark electrodes for manual surface ignition of a four burner range top with flash tubes to front and rear burners. Very popular module used on many different brands and models. Check by appliance model number, if not sure.

This small replacement retainer secures the griddle igniter so the igniter stays correctly positioned for reliable spark and consistent lighting. It restores proper alignment to help the griddle burner light safely and evenly. What it does:

• Holds the griddle igniter in place so the igniter tip stays aligned with the burner for consistent sparking
• Prevents the igniter from shifting or touching adjacent parts that can cause misfiring or damage
• Common symptom fix: griddle burner fails to light or sparks but flame does not establish due to misaligned igniter
• Helps maintain safe burner operation by keeping the igniter stable during use

• One igniter retainer specific to griddle burner assemblies

• Disconnect electrical power and shut off gas supply before servicing gas components
• Handle ceramic igniters and the retainer carefully; avoid impact and avoid bending the igniter electrode
• Reinstall so the igniter tip is properly centered over the burner slot; do not overtighten fasteners

Controls gas flow to range burners. Replace if regulator is worn, leaking, or damaged to restore proper gas delivery and maintain safe operation.

Oven won't light or ignites with a loud pop? A faulty igniter is usually the cause. Simple DIY fix—disconnect two screws and wire nuts to replace.

Fix a burner that won't light, won't adjust, or stays on with this range top burner valve. Controls gas flow to surface burners. Moderate DIY repair.

Support bracket for ranges. Installs internally to secure components in place. Replace if bent, broken, or missing to restore proper structural support.

Replace your cracked or broken range valve cover. This protective housing installs over the gas valve assembly to shield internal components from damage.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Replacement mounting screws that secure your cooktop to the countertop or cabinet. Essential when original screws are stripped, missing, or damaged during installation or service.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.
