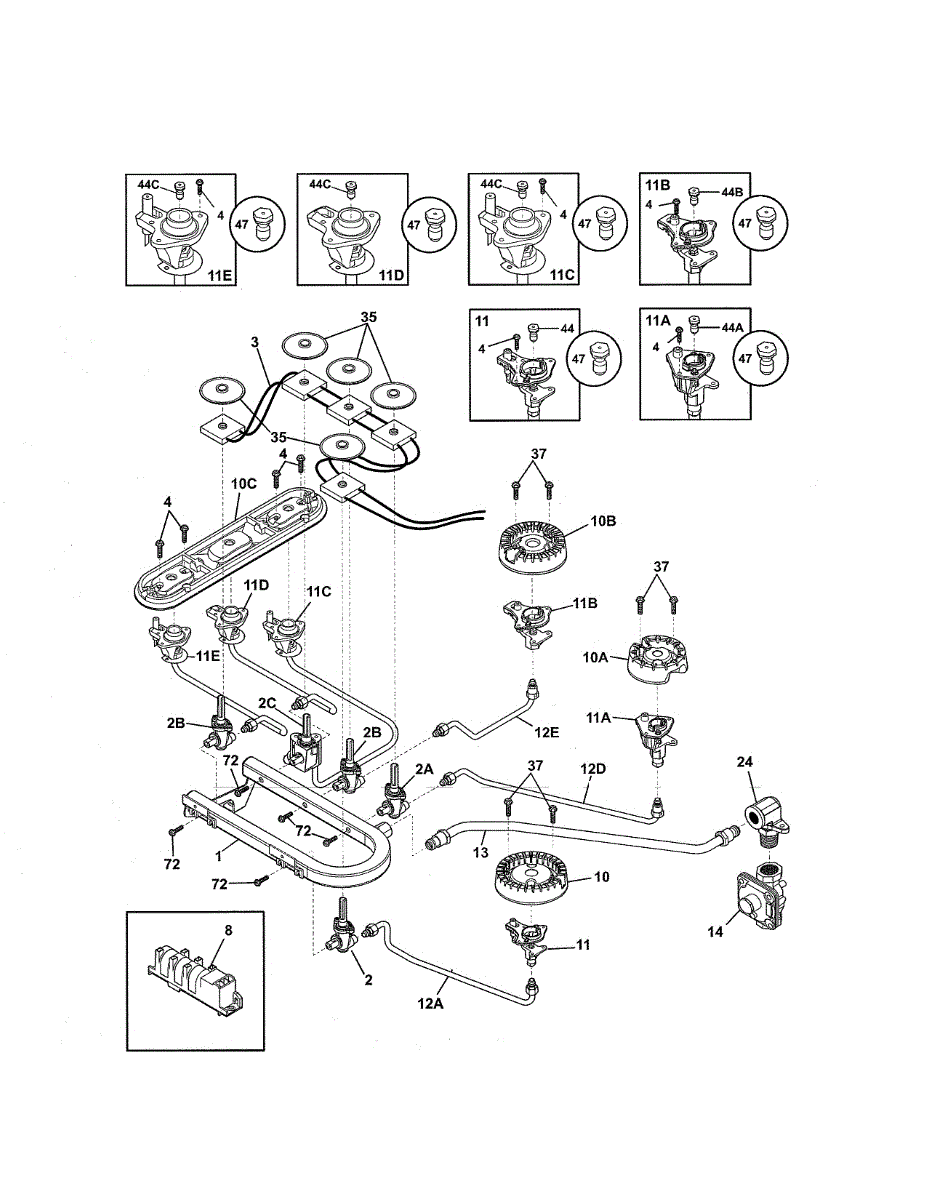

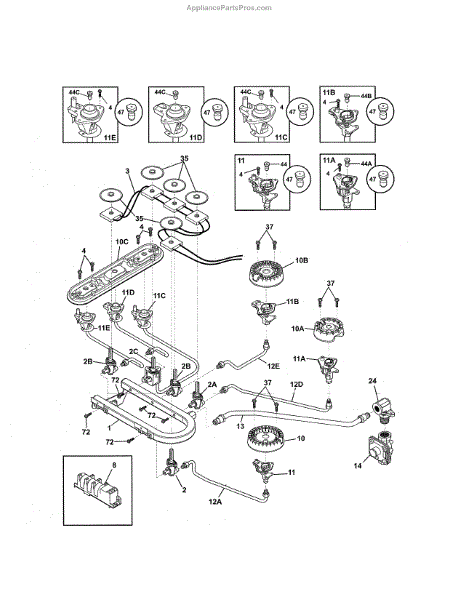

Parts for Kenmore 790.31013601 (79031013601, 790 31013601): Burner Parts

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

If your burner won't light or the flame is too high or too low, this gas valve controls flow to restore proper ignition and flame adjustment on your cooktop.

Fixes cooktop burners that won't light, won't stay lit, or have weak flames. This gas valve controls fuel flow to your burners. Moderate DIY repair.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

Gas range burner cap ring sits atop the burner head on your cooktop. Replace if cracked, chipped, discolored, or missing for proper flame distribution.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replaces a cracked, corroded, or damaged burner on your gas range or cooktop. Installs on top to restore the heat source for your cooking zone.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

Ignitor assembly for cooktop burners. Installs near the burner head to create the spark for gas ignition. Replace if cracked, damaged, or missing.

If your cooktop burner won't light or clicks continuously without igniting, the igniter assembly may have failed. This part sparks to ignite gas flow.

This ignitor orifice assembly replaces the burner gas orifice and ignitor used to light a gas cooktop or range. It restores reliable spark ignition and corrects flame delivery for safer, more consistent burner operation. What it does:

• Provides the ignitor electrode and matched gas orifice to initiate and shape the burner flame
• Helps stop intermittent or no-light conditions caused by a faulty ignitor or clogged orifice
• Can improve weak or uneven flames when the orifice is damaged or misaligned
• Works as a direct replacement assembly for the specified burner configuration

• One ignitor orifice assembly (electrode and orifice preassembled)

• Turn off gas supply and disconnect power before starting any repair
• Use proper tools to remove the burner cap and access the assembly; handle the ignitor electrode carefully to avoid damage
• Verify correct alignment and secure the assembly per manufacturer torque recommendations; test for proper ignition and gas leaks after installation

Combines spark igniter electrode with orifice holder for gas surface burners. Replace when cracked, broken, or no longer securely holding components in place.

Ignitor and orifice assembly for gas range burners. Replace if cracked, damaged, or worn to restore proper ignition. Installs at burner base.

Gas pressure regulator for cooktop burner systems. Mounts to the manifold to control fuel flow. Replace if cracked, leaking, or showing wear.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Uneven flames or incorrect burner heat? This gas range orifice controls gas flow to the burner. Simple replacement takes 15-20 minutes with basic tools.

Meters gas flow to your range or cooktop burner for proper flame size. Replace worn, clogged, or missing orifices or when converting between propane and natural gas.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.
