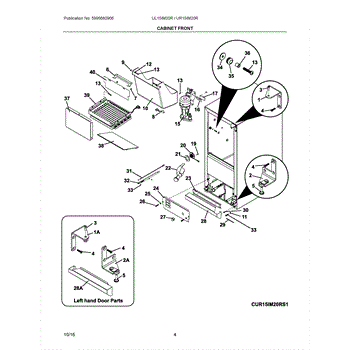

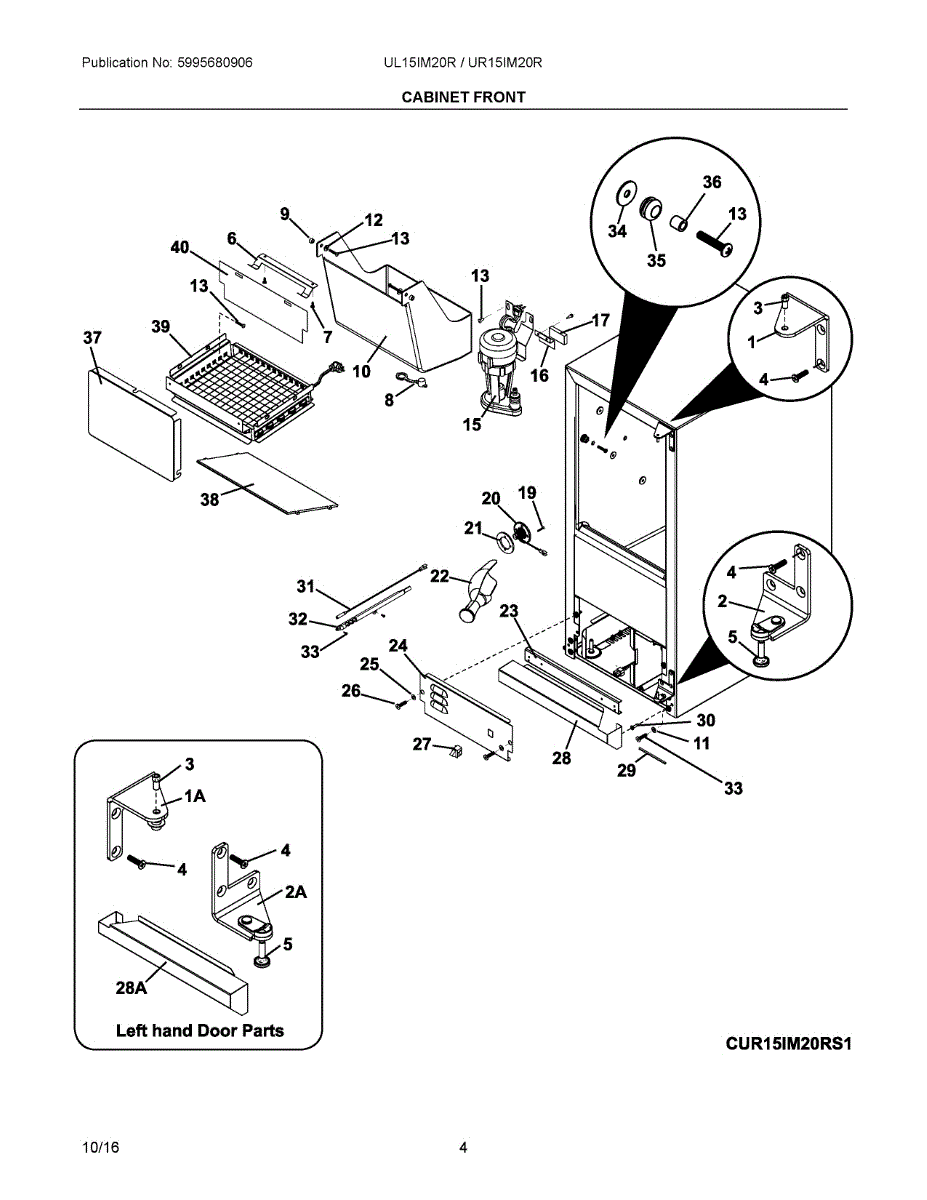

Parts for Electrolux UR15IM20RS1: 03 - Cabinet Front Parts

A small metal pin used to secure moving parts like pivots or shafts so doors, drawers, or internal assemblies stay aligned and operate smoothly. Replaces worn or damaged pins to stop excessive play and noisy movement. What it does:

• Secures a pivot or shaft so the linked component rotates or slides on a fixed axis
• Restores proper alignment when a worn pin causes wobble or uneven operation
• Helps stop rattling, binding, or misalignment of the attached part
• Works as the mechanical fastener inside hinge, roller, or linkage assemblies

• Disconnect power or unplug the appliance before servicing
• Keep track of orientation and any washers or clips during removal
• Use appropriate hand tools and secure small parts to avoid loss

This flat washer secures fasteners and helps maintain proper spacing and alignment in appliance assemblies, keeping parts tight and reducing movement for more reliable operation. What it does:

• Sits under a nut or bolt to distribute load and prevent pull-through
• Helps keep connected parts aligned and reduces play that can cause noise
• Can prevent premature wear on mating surfaces by adding a smooth bearing surface
• Commonly replaced when fasteners are loose, rattling, or components show excess movement

• One flat washer

• Disconnect power and water before starting any repair
• Compare new part to the original to ensure correct size and fit
• Use proper tools to remove and reinstall fasteners; tighten snugly but avoid over-torquing
• If other hardware or surrounding parts are damaged, replace them as well for a secure repair

Structural reinforcement bracket for ice maker assembly. Provides support and stability to internal components. Replace if cracked, broken, or missing.

Replacement cover panel for ice maker housing. Protects internal components and provides finished appearance. Order when original is cracked, broken, or missing.

Ice maker not turning on or off? This switch controls power to your ice maker unit. A common fix when your appliance won't respond to controls.

Front grille panel for ice maker units. Replaces cracked, broken, or discolored grilles. Covers internal components for a finished appearance.

Ice maker not producing ice or cycling incorrectly? This sensor monitors temperature and ice levels to control your ice maker's operation cycle.

This spacer positions and supports nearby components to maintain proper alignment and clearance, helping panels and assemblies fit and operate without rubbing or binding. What it does

• Provides a fixed gap between parts to prevent contact, rubbing, or electrical shorting
• Keeps panels, trim, or assemblies correctly aligned for smooth operation
• Reduces vibration-related noise by stabilizing mounted parts
• Commonly replaces worn or missing spacers that allow shifting or misalignment

• One spacer

• Disconnect power before accessing internal panels or electrical components
• Remove any trim or panels that block access; keep fasteners organized
• Verify correct placement and orientation before tightening fasteners
