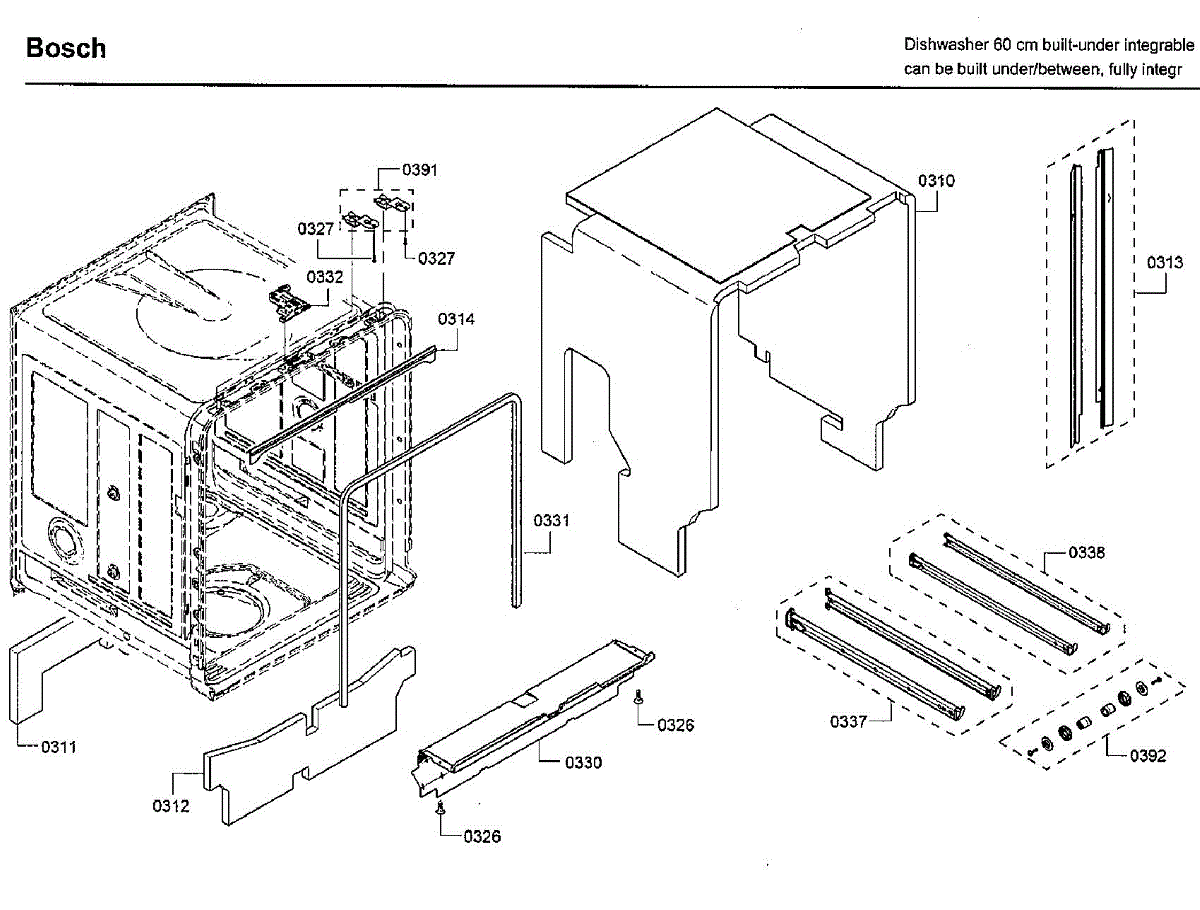

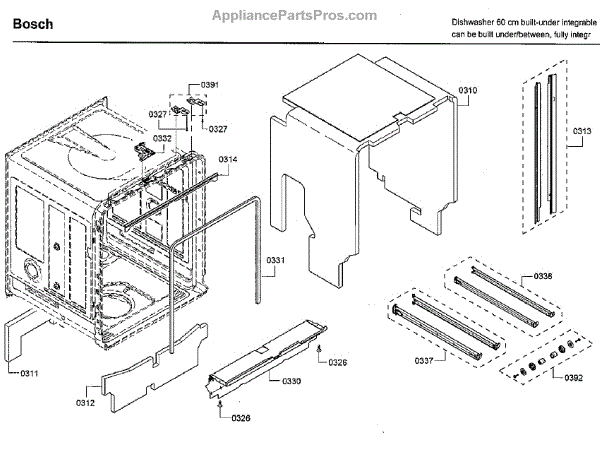

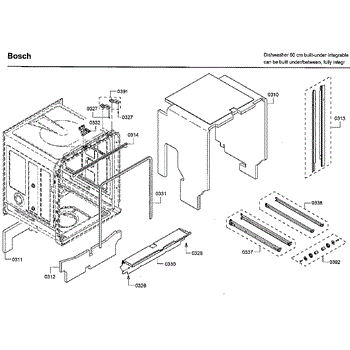

Parts for Bosch SHVM63W53N/01: Cabinet Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Fix excessive exterior heat or protect components with this dishwasher insulation blanket. Reduces heat transfer to maintain safe operating temperatures.

This insulating part provides a non-conductive, heat-resistant barrier between adjacent components inside the appliance. Replacing a damaged insulator helps prevent unintended contact and heat transfer, supporting safe, reliable operation and protecting nearby parts. What it does:

• Electrically isolates terminals or metal surfaces to help prevent shorts or arcing
• Reduces heat transfer to surrounding components
• Maintains proper spacing and support for the protected component
• Replace if the original is cracked, deformed, missing, or shows burn/discoloration

• 1 insulating part

• Disconnect power before servicing; shut off gas or water if applicable
• Access the component, note orientation/positioning of the original insulator, and transfer any clips or hardware as required
• Seat the new insulator fully and ensure no conductive parts touch unintended surfaces
• Reassemble, restore power, and verify normal operation with no rubbing, arcing, or overheating

Sound-dampening insulation panel that installs between the dishwasher tub and outer door. Replace if missing, damaged, or worn for proper noise reduction.

Side trim strip provides aesthetic border along dishwasher tub interior. Replace if worn, cracked, or damaged from daily use. Verify fit with your model.

Decorative trim strip that covers the upper edge of the dishwasher door interior. Replace if cracked, broken, loose, discolored, or missing.

This metric M4 x 8 screw secures the toe-kick/lower access panel at the base of the appliance. Replace a missing or stripped fastener to keep the kickplate tight and aligned, helping prevent looseness and noise.

• Secures the toe-kick or lower access panel to the base/frame
• Restores proper fit when the original screw is lost or damaged
• Helps reduce panel rattles and vibration
• Maintains correct alignment and clearance at the bottom edge

• Disconnect power before servicing; also shut off the water supply
• Support the panel and align holes before threading the screw
• Start by hand to avoid cross-threading; tighten snugly—do not overtighten
• Verify size matches the original; replace matching hardware together if required by your model

Secures internal components and mounting brackets in your dishwasher. Replace if missing, stripped, or lost during installation or cabinet remodeling.

This protective cover sheet mounts to the appliance's frame to shield and support nearby components. Replacing a damaged or missing panel helps keep wiring and mechanisms protected and securely mounted, reducing vibration and preventing premature wear.

• Shields internal components from debris, moisture, and accidental contact
• Helps maintain proper alignment and support of adjacent assemblies
• Can reduce rattling or vibration when correctly secured
• Replace if bent, cracked, corroded, or missing

• Disconnect power (and water supply if applicable) before servicing
• Wear cut-resistant gloves; panel edges can be sharp
• Note and retain original fasteners/clips for reuse
• Route wires and seals carefully to avoid pinching; align panel before tightening fasteners

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Restores a watertight seal on your dishwasher door to stop leaks. Replace when worn, torn, or water escapes during cycles. Confirm fit with your model.

Dishwasher door won't latch or cycle stops mid-wash? This door lock assembly secures the door during cycles. Typical DIY repair in under 30 minutes.

Replaces sliding rails that support and guide the upper dishrack along tub sidewalls. Needed when rails are cracked, worn, or broken causing binding.

The Cutlery Drawer Rail Kit is an OEM part for Bosch dishwashers. It includes the rails that guide the movement of the cutlery basket. This kit works to smoothly extend and retract the basket for easy loading and unloading.

Causes can be damage from overloading the basket over time. Wear and tear is also normal with repeated use of the rails.

Symptoms of faulty rails include:

• The basket not opening or closing fully
• Difficulty sliding the basket in or out
• Noises or rubbing during operation

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Kit of 2 mounting brackets that secure your dishwasher to cabinets or countertops. Replace broken, missing, or damaged brackets from installation or renovation.

Repair set for dishwasher rack rollers. Restores smooth rack movement when wheels are broken, cracked, or worn. Installs on upper or lower racks.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
