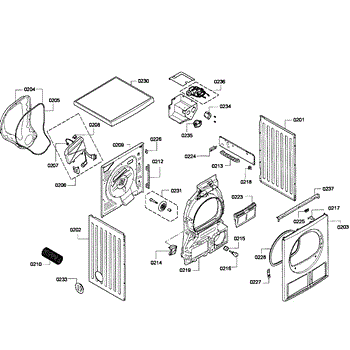

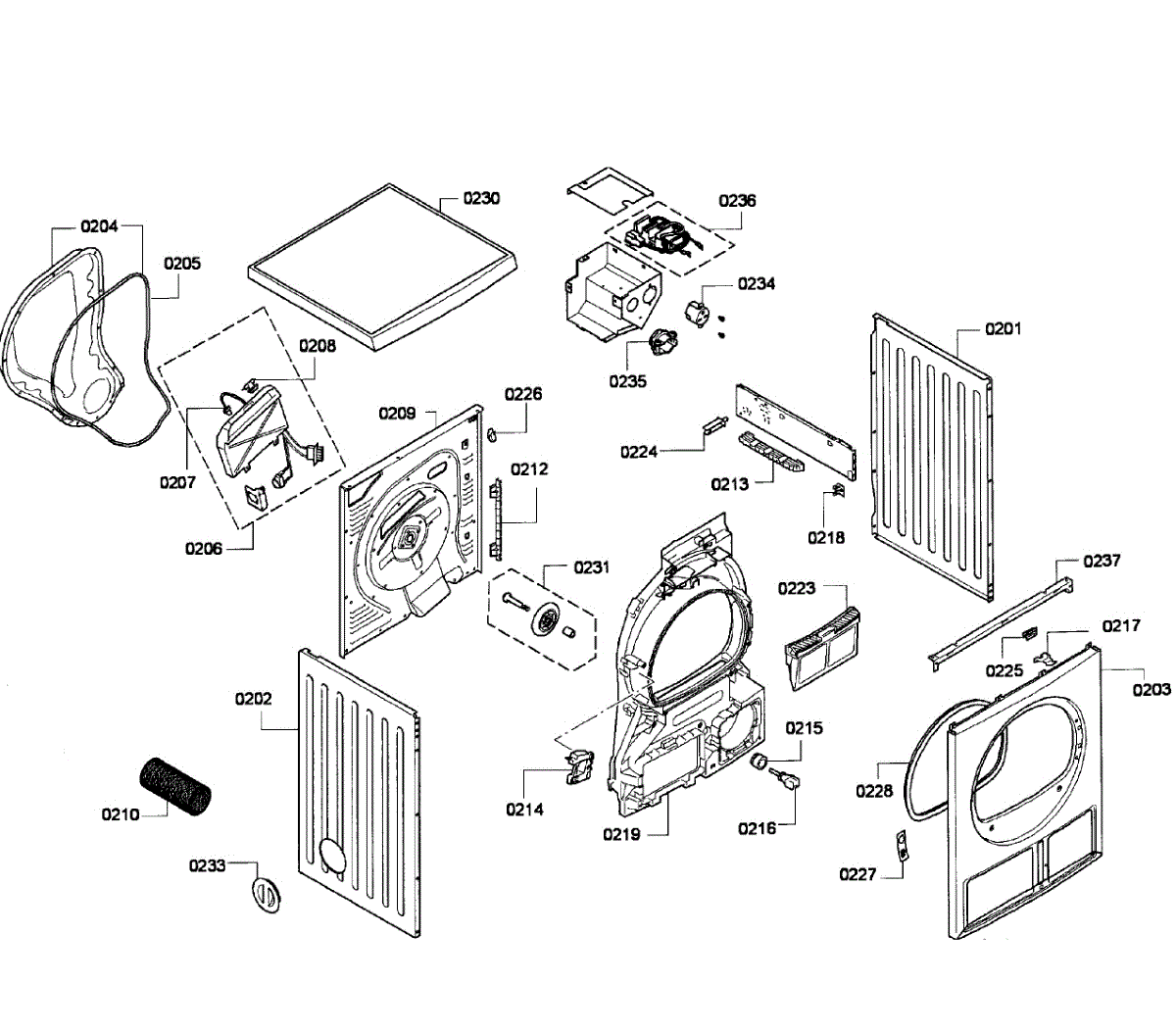

Parts for Bosch WTV76100US/06: Cabinet Parts

Front panel case for your dryer. This structural component covers the front of the cabinet. Replace if cracked, damaged, or showing wear from use.

Dryer not heating or taking too long to dry? This heating element assembly restores normal drying performance by heating air as clothes tumble.

The Limiter-Temperature is an OEM component specifically designed for select Bosch vented dryers requiring controlled heat. As a safety device, it restricts air exiting the exhaust to prevent accidental ignition of accumulated lint.

Precisely calibrated mechanothermal links automatically trip circuit breakers upon exceeding preset levels. Isolated housings shield reactive alloys from moisture while enabling thermodynamics to naturally trigger protective functions.

Causes requiring replacement involve over-heating from sustained over-drying preventing auto-stops. Physical damage exposing reactive cores could also impair intended response times.

Symptoms signaling the need for a new temperature limiter include:

• Inability to sense rising exhaust temperatures activating cutoffs
• Constantly energized heating elements lacking temperature regulation
• Excessively long or uncontrolled dry cycles posing combustion risks

This OEM Bosch replacement component is also compatible with some Gaggenau, Thermador, and select Kenmore dryers employing sensitive temperature cutoffs. Correct installation restores critical overheat protection circuits.


Dryer not heating or shutting off mid-cycle? A faulty thermal cutoff stops the heating element when temperatures exceed safe limits. Simple fix.

This flexible exhaust air hose routes hot, moist air from the appliance to the household vent, helping maintain proper ventilation and reduce moisture buildup. It's a direct-replacement vent hose used in the dryer/exhaust path. What it does:

• Provides a sealed pathway for hot air and moisture to exit the appliance
• Restores proper airflow when the original hose is damaged, crushed, or disconnected
• Helps prevent excess lint accumulation in the appliance cabinet and ductwork
• Can reduce long dry times and overheating caused by restricted exhaust

• One exhaust air hose

• Disconnect power (and gas, if applicable) and pull the appliance away from the wall before starting
• Secure hose with appropriate clamps or fasteners and ensure a smooth, unobstructed route
• Inspect surrounding components and vent path for lint or damage while replacing the hose

Replace your dryer's duct if cracked, damaged, or missing. This duct channels air through the system for proper ventilation and efficient drying performance.

Dryer won't start or door won't stay closed? This door latch assembly secures the door during operation, allowing cycles to run. Moderate DIY repair.

This replacement seal restores a tight, leak-resistant connection between mating components inside your appliance. Replacing a worn seal helps stop drips at the joint and keeps the system operating reliably without nuisance leak faults.

• Forms a compressible barrier between parts to prevent leakage at a connection point
• Helps protect nearby components from moisture intrusion and corrosion
• Typical failure signs: moisture around a joint, puddling beneath the unit, or leak/overflow error messages
• Replace if the original is cracked, flattened, cut, brittle, or missing

• Disconnect power and shut off the water supply before servicing
• Access the connection, note the seal's orientation, and remove the old seal
• Clean mating surfaces; lightly moisten the new seal and seat it evenly without twisting or pinching
• Reassemble and test for leaks before reinstalling covers or panels

Temperature monitoring sensor located in the dryer's heating system that regulates drying temperatures. Replace if clothes aren't drying properly, take too long to dry, or if the dryer overheats.

Captures lint and debris during drying cycles. Replace if damaged, torn, or clogged to restore airflow and drying efficiency. Verify fit with your model.

Structural holder component for dryers. Secures internal parts in proper position. Replace if broken, cracked, or missing to restore proper fit.

Dryer cover restores a secure closure over openings, protecting internal components. Replace when cracked, broken, or missing to maintain fit and appearance.

Seals the gap between your dryer door and drum to contain heat and prevent lint escape. Replace if torn, cracked, or causing longer dry times.

The Wheel is an OEM part for Bosch clothes dryers. It is an essential component that works with the drum to tumble clothes, facilitating effective drying action during cycles.

Wheels can cause shorts and come loose over time from heavy drum usage, leading to:

• Vibrating, shaking noises
• Difficulty spinning the dryer drum by hand
• Stretching or pilling of clothes
• Unerwven drying performance

Causes of a faulty wheel tend to be wear and tear over time from carrying heavy loads inside a spinning drum. Foreign objects inside the drum can also potentially cause damage.

It is also compatible with some Thermador, Gaggenau, and Kenmore dryer models.

Dryer won't start or shows error codes? A faulty cable harness disrupts electrical connections. This internal wiring assembly restores communication.

A replacement sealing that helps keep water and air contained where the appliance needs a tight seal, reducing leaks and maintaining optimal performance. Designed as a direct-fit service part to restore proper sealing. What it does:

• Forms a watertight barrier at the door or drawer opening to prevent leaks and drips
• Keeps internal temperatures and pressures stable by sealing the cavity
• Worn or torn seals can cause water on the floor, poor cleaning/drying, or unusual noises
• Restoring the seal helps stop common symptoms related to gaps or deterioration

• One replacement sealing

• Turn off and unplug the appliance and shut off the water supply before beginning repairs
• Inspect the mounting channel and clean before installing the new seal for best fit
• Seat the seal evenly around the perimeter; avoid stretching or twisting the material
