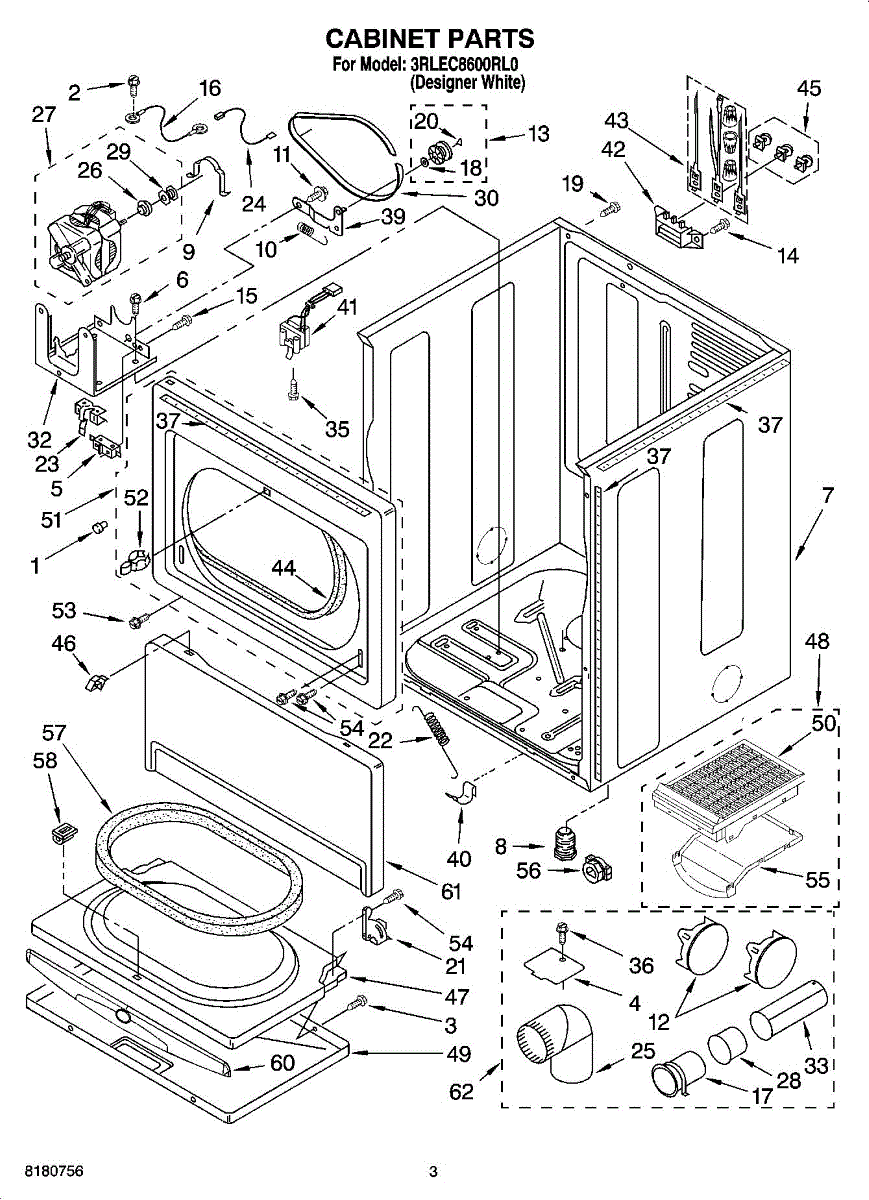

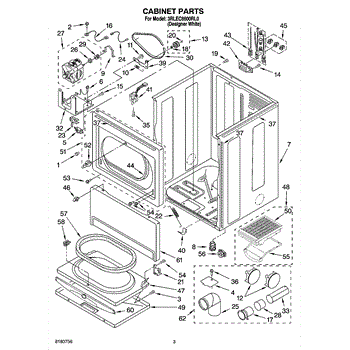

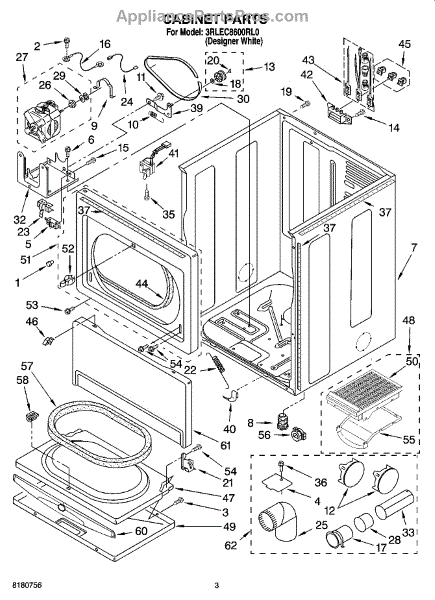

Parts for Whirlpool 3RLEC8600RL0: 02 - Cabinet Parts

Rubber bumper that cushions and supports the dryer drum. Replace if cracked, worn, or missing to prevent drum damage and reduce noise during operation.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

Covers and seals your dryer's exhaust opening to direct airflow and keep debris out. Replace if cracked, warped, or missing to maintain proper venting.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Secures the idler pulley to maintain proper drum belt tension in your dryer. Replace if worn, loose, or causing squealing noises. Confirm fit with your model.

Side or bottom exhaust vent kit for dryers. Relocates dryer vent from rear to side or bottom position. Includes metal duct, hardware, and instructions.

Replacement idler pulley for dryer drum belt systems. Maintains proper belt tension. Replace if pulley is cracked, worn, or bearings are damaged.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Exhaust vent elbow routes hot air and lint from your dryer to the external vent. Replace if cracked, bent, or leaking to restore airflow and safety.

The Thrust Washer is an OEM part for Whirlpool washers and dryers, reduces friction between moving parts within the appliance. This small component is placed between rotating surfaces to ensure smooth operation and to extend the lifespan of those parts. The thrust washer can wear down or become damaged due to the constant pressure and movement.

Causes for replacement may include normal wear and tear, overloading the appliance, which puts extra stress on mechanical components, or a lack of regular maintenance.

Symptoms of a bad Thrust Washer include:

• Increased noise during operation
• The appliance vibrating more than usual
• A decrease in performance efficiency

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement screw secures panels, brackets, and internal assemblies. Needed when original hardware is stripped, corroded, or missing to keep parts tight.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Left-side door hinge for dryers. Replaces broken, bent, or deformed hinges that prevent the door from closing properly. Simple installation.

Right-hand door hinge for dryers. Replaces broken, bent, or sprung hinges that prevent the door from closing properly. Easy DIY installation.

This door spring counterbalances your dishwasher door so it opens and closes smoothly without slamming. Replacing a fatigued or broken spring restores proper tension and helps protect the hinges and latch.

• Provides counterbalance tension to the door through the hinge mechanism
• Helps the door open and close with controlled movement and stay in position
• Symptoms of failure can include a door that drops quickly, feels heavy, or won't stay put
• May also cause popping/squeaking noises or uneven action on one side of the door

• Disconnect electrical power and turn off the water supply before servicing
• Remove the toe panel/kick plate to access springs near the hinges
• Carefully relieve and reattach spring tension; wear gloves and eye protection
• Ensure both sides are tensioned evenly after replacement

The lid switch lever connects the washer's lid hinge to the lid switch, signaling when the lid is closed so the cycle can run. A damaged lever can prevent the safety interlock from closing, leading to no-start or spin issues. What it does:

• Transfers lid movement at the hinge to the lid switch actuator
• A closed lid so the washer can operate
• Common symptoms of a failed lever: washer won't start; won't spin; cycle pauses because the lid-closed signal isn't detected

• 1 lid switch lever

• Disconnect power before servicing
• Lift or open the top to access the hinge/switch area; locate the lever near the lid switch
• Remove the old lever and install the new one in the same orientation; free movement
• Close the lid by hand and the switch clicks before reassembly and testing

This elbow redirects a fluid or air line inside the appliance to allow routing around components and tight spaces. It restores proper flow path and helps stop leaks or blockages when the original elbow is cracked or worn. What it does:

• Provides a sealed change of direction for a water, drain, or vent line inside the appliance
• Replaces a cracked or broken elbow that can cause leaks, water pooling, or reduced flow
• Re-establishes the correct routing to prevent kinks and stress on connected hoses or tubing
• Helps eliminate intermittent draining or venting issues caused by a damaged fitting

• Disconnect power and shut off water supply before accessing the part
• Verify orientation and routing before removing the old elbow to ensure correct reinstallation
• Inspect and replace any worn clamps, gaskets, or hoses when installing the new elbow
• Tighten fittings to secure but avoid over-tightening which can crack plastic components

Dryer belt slipping off motor pulley or making squealing noises? The belt restrainer keeps the drive belt aligned. Moderate DIY repair with video guide.

Dryer drum not spinning or rotating slowly? This drive motor rotates the belt that spins the drum. Moderate DIY repair restores normal operation.

Directs heated air from dryer drum to household vent. Replace if cracked, damaged, or airflow is restricted. Confirms fit for compatible dryer models listed.

The Drive Belt is an OEM replacement part for Whirlpool dryers. This essential component is responsible for transferring power from the dryer's motor to the drum, allowing it to spin and tumble the clothes during the drying cycle.

Symptoms of needing to replace the drive belt include:

• The dryer drum not spinning or rotating
• Loud squeaking or grinding noises during the drying cycle
• Excessive vibration or shaking from the dryer
• Clothes taking longer to dry or remaining damp

Causes of a faulty drive belt can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

Fix excessive vibration or loud rattling noises during cycles with this dryer motor mounting bracket. Secures motor to cabinet for stable operation.

If your dryer takes forever to dry clothes or feels overly hot, a clogged or damaged exhaust pipe may be restricting airflow. Direct replacement part.

6-20 screw secures panels, brackets, and internal components. Replace stripped, missing, or damaged screws to restore proper fit and eliminate rattling.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Complete idler pulley assembly with bracket, roller, and hardware. Replaces worn, squeaking, or damaged pulley components. Maintains belt tension.

This small retaining clip secures the door hinge in place so the door opens and closes smoothly and stays properly aligned. Replacing a worn or missing clip helps restore reliable hinge support and consistent door operation.

• Retains the hinge/hinge pin to prevent shifting or separation
• Helps maintain door alignment to avoid rubbing, sagging, or binding
• Replaces a clip that is bent, cracked, corroded, or missing
• Common signs it's needed: loose or wobbly door, difficulty closing, misaligned door, visible damaged/missing clip

• Unplug the appliance and, if applicable, remove items from the door to reduce weight
• Support the door before working on the hinge
• Remove any hinge cover/fasteners, swap the clip, and ensure it seats fully
• Reassemble and check door alignment and smooth operation

Dryer won't stop spinning when door opens or won't start at all? The door switch likely failed. DIY repair in 10-20 minutes with basic tools.

Dryer won't heat or stops working? A burnt or melted terminal block disrupts power flow. DIY repair in under an hour with video guidance included.

Includes screws and wire connectors. For the complete terminal block kit use 279320.

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

Dryer won't power on or has loose power cord connection? This terminal block screw kit secures electrical connections. Easy DIY fix in 15 minutes.

The Access Panel Spring Retainer is an OEM part for Whirlpool dryers. This part secures the access panel of the dryer, ensuring it stays in place during operation. The spring retainer provides tension and stability, making it easy to open and close the access panel when maintenance or repairs are needed.

Causes of a bad access panel spring retainer can include regular wear and tear, loss of tension, or physical damage.

Symptoms of a bad access panel spring retainer include:

• Access panel not staying securely closed
• Difficulty opening or closing the access panel
• Loose or rattling access panel during dryer operation
• Visible damage or wear on the retainer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Stationary shelf that sits inside the dryer drum for drying shoes, sweaters, and delicates without tumbling. Replace if rack is missing, cracked, or damaged.

Stationary shelf that sits inside the dryer drum for drying shoes, sweaters, and delicates without tumbling. Replace if rack is missing, cracked, or damaged.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Mounting screw for dryer installation and panel assembly. Replace this hardware if the original is stripped, missing, or damaged during disassembly.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Stationary shelf that sits inside the dryer drum for drying shoes, sweaters, and delicates without tumbling. Replace if rack is missing, cracked, or damaged.

The Door Seal is an OEM component specifically designed for Whirlpool dryers. It works to create an airtight seal between the dryer door opening and drum interior. During operation, heated air and moisture are contained within the drum thanks to this crucial seal.

Symptoms of a worn door seal include:

• Increased drying time due to air leaks
• Clothes not drying completely before end of cycle
• Excess humidity escaping into home
• Discoloration or residue buildup on door glass

Causes of failure are normal wear and compression over extended use, or damage from improper door closure. A worn seal degrades efficiency and performance of the dryer.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Replaces damaged lower front panel on your dryer. Restores cabinet seal and professional appearance. Confirm fit with your model number before ordering.

Side or bottom exhaust vent kit for dryers. Relocates dryer vent from rear to side or bottom position. Includes metal duct, hardware, and instructions.
