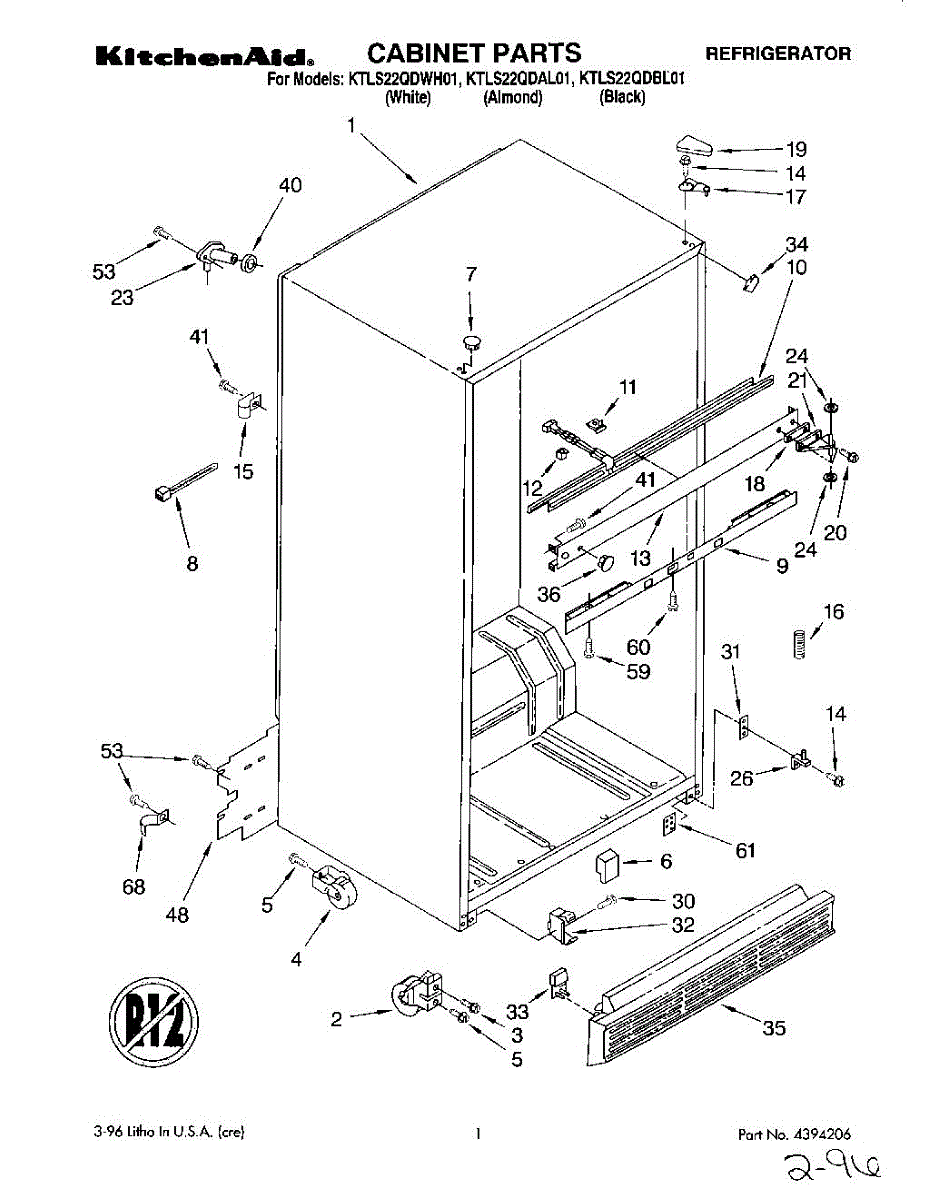

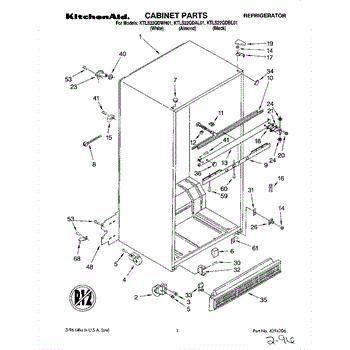

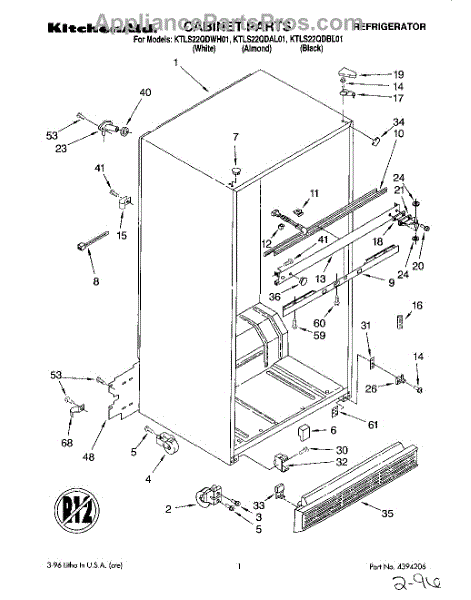

Parts for Kitchenaid KTLS22QDBL01: 01 - Cabinet Parts

The Roller Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the rollers that support and allow the refrigerator to be moved easily for cleaning or maintenance. Proper functioning rollers ensure smooth movement and stability of the appliance.

Causes of a bad roller assembly can include wear and tear from regular use, damage from moving the refrigerator improperly, or exposure to moisture leading to rust or corrosion.

Symptoms of a bad roller assembly include:

• Difficulty in moving the refrigerator
• Uneven or unstable placement of the appliance
• Unusual noises when moving the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement screw for securing components inside your refrigerator. Needed when original screws are stripped, lost, or corroded during repairs.

Supports your refrigerator at the base and lets you roll it forward for cleaning. Replace this roller assembly if cracked, broken, or seized to restore smooth movement.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Color: white.

Black plastic hole plug endcap for refrigerator interior panels. Covers mounting holes and openings for a finished look. Replaces missing or broken caps.

Secures panels, brackets, and internal components in appliances. Replace missing, stripped, or corroded screws to restore secure assembly and alignment.

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

Black hinge cover that conceals and protects the door hinge area. Replace if cracked, broken, or missing to restore a clean, finished look.

Replace a cracked, broken, or missing hinge cover on your refrigerator. Snaps over the hinge assembly to conceal hardware and restore a clean finish.

Secures panels, brackets, and internal components in appliances. Replace missing, stripped, or corroded screws to restore secure assembly and alignment.

The Icemaker Fill Tube Fitting is an OEM part for Whirlpool refrigerators. This part connects the water supply line to the icemaker, ensuring a seamless and leak-free delivery of water into the icemaker mold.

Causes of a bad Icemaker Fill Tube Fitting can include wear and tear over time, mineral buildup from hard water, which can block the water flow or damage the fitting, and improper installation that may lead to leaks or restricted water flow.

Symptoms of a bad Icemaker Fill Tube Fitting include:

• Water leakage at the connection points, leading to potential water damage or ice buildup in the freezer
• Insufficient ice production if the fitting is partially blocked or not properly connected, restricting water flow to the icemaker
• Unusual noise during the icemaker fill cycle, indicating a potential issue with the fitting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Flat washer used on refrigerator door hinge assembly. Reduces friction and distributes load for smooth door operation.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Secures the bottom grille to your refrigerator frame. Replace if the original clip is cracked, broken, or missing and the grille won't stay in place.

Black

Seals refrigerator door to prevent air leaks and temperature loss. Replace when worn, cracked, or no longer forming a tight seal. Verify fit by model.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replacement screw that secures panels, brackets, and trim to appliance cabinets. Restores reliable hold when original hardware is stripped or missing.

Loose panels or rattling components? This self-locking hex washer head screw secures refrigerator panels and brackets with vibration-resistant hold.
