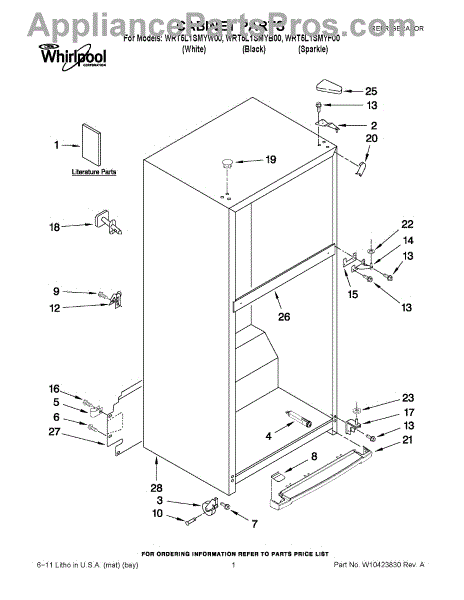

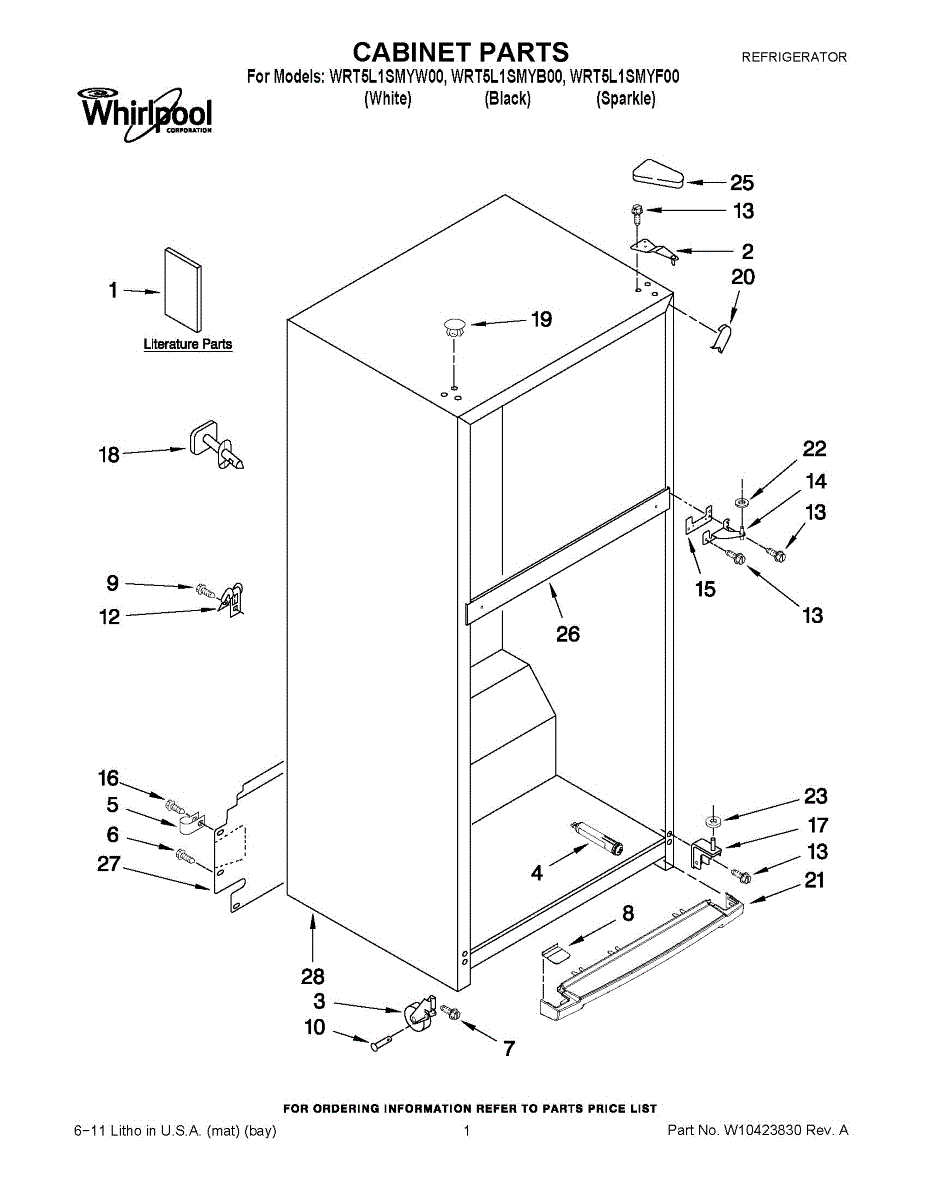

Parts for Whirlpool WRT5L1SMYF00: 01 - Cabinet Parts

Purifies circulating air in your refrigerator to reduce odors. Replace every 6 months for optimal freshness. Verify fit with your model number.

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Top door hinge assembly mounts at the upper corner of your refrigerator door to support and pivot the door. Replace if cracked, worn, or causing misalignment.

Front cabinet roller wheel for refrigerators. Mounts under the cabinet to allow smooth rolling and positioning. Replace if cracked, broken, or worn out.

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Replacement screw for securing components inside your refrigerator. Needed when original screws are stripped, lost, or corroded during repairs.

Decorative end cap that covers the edge of the refrigerator's front grille. Replace if cracked, broken, or missing for a clean, finished look.

This grille enclosure replaces a damaged lower front grille to restore the appliance's appearance and protect internal components. It provides a secure cover that helps direct airflow and prevents debris from entering the cabinet. What it does:

• Covers and protects lower front components from dirt, dust and accidental contact
• Helps direct airflow around vents and intake areas for proper operation
• Restores a finished, gap-free appearance when the original grille is cracked or broken
• Reduces rattling caused by loose or damaged grille pieces

• One lower front grille enclosure

• Disconnect power before starting any repair to avoid electrical shock
• Remove nearby panels or kickplate screws/clips as needed for access
• Align tabs and secure with the factory screws or clips; do not force or bend mounting tabs

Replace a cracked, broken, or missing grill end cap on your refrigerator. This trim piece installs at the end of the base grille for a finished look.

Size: 8-18 x 1/2 inch.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Center door hinge connects and supports refrigerator doors. Replace if bent, broken, or lost during moving. Guides smooth door operation and alignment.

Center hinge spacer maintains proper door alignment and spacing. Replace if your refrigerator door sags or seal fails. Confirm fit with your model.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Supports the refrigerator door at the bottom pivot point. Replace if your hinge is rusted, bent, cracked, or broken to restore proper door alignment.

Black plastic hole plug endcap for refrigerator interior panels. Covers mounting holes and openings for a finished look. Replaces missing or broken caps.

Grey button plug cap for refrigerators and freezers. Covers screw holes or mounting points on interior or exterior panels. Replace if cracked or missing.

Color: white.

Covers seam gaps near door hinges on refrigerator cabinets. Replace if missing, peeling, or damaged to prevent air leaks and maintain appearance.

Cabinet filler trim closes the gap between your refrigerator and surrounding cabinetry. Replace if cracked, broken, or missing to restore appearance.

Trim piece that covers and finishes the outer corner where filler panels meet on your refrigerator. Replace if cracked, broken, or missing.

Replacement grille for your refrigerator. Installs on the front lower section. Needed when original is cracked, broken, or missing cosmetic cover.

Replaces the lower front trim panel on your refrigerator. Restores a finished look when the original grille is cracked, broken, or discolored.

Covers the kickspace at the bottom of your refrigerator. Replaces a cracked, dented, or missing grille to restore appearance and protect components.

Small plastic washer that supports the refrigerator door hinge assembly. Replace if worn, cracked, or missing to restore proper door alignment.

Plastic washer that fits between the door hinge and cabinet body. Replace if cracked, worn, or missing to restore smooth door operation and alignment.

Replacement hinge cover cap for refrigerator door. Restores finished appearance after door reversal or replaces cracked, broken, or missing covers.

Replacement access panel cover for refrigerators. Installs on exterior to protect internal wiring and components. Needed when original is cracked or missing.

Replace your refrigerator's damaged or missing cover cap. This protective cover installs over internal components to restore a finished appearance.

Plastic cover cap for refrigerator installation. Replaces cracked, broken, or missing covers. Snaps into place to provide finished appearance.

Protective cover for refrigerator control console. Shields control panel from moisture, dust, and damage. Replace if cracked, broken, or missing.

Replace a cracked or missing refrigerator door hinge cover cap. This plastic cover installs on top of the hinge assembly for a finished look.
