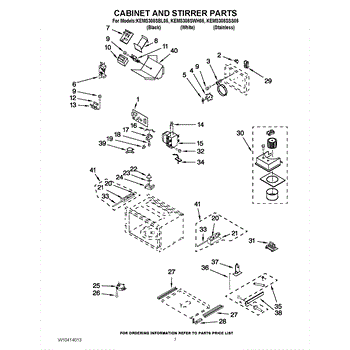

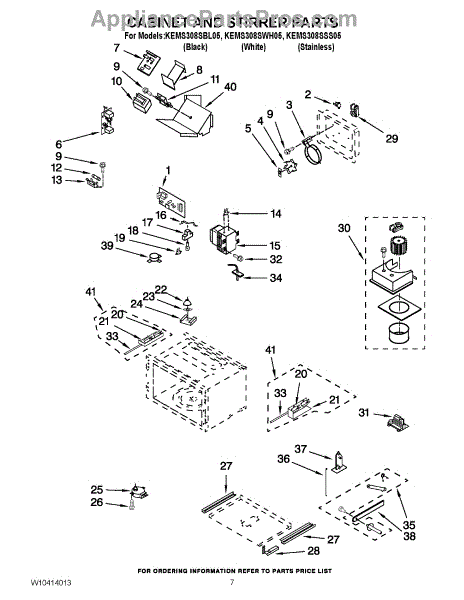

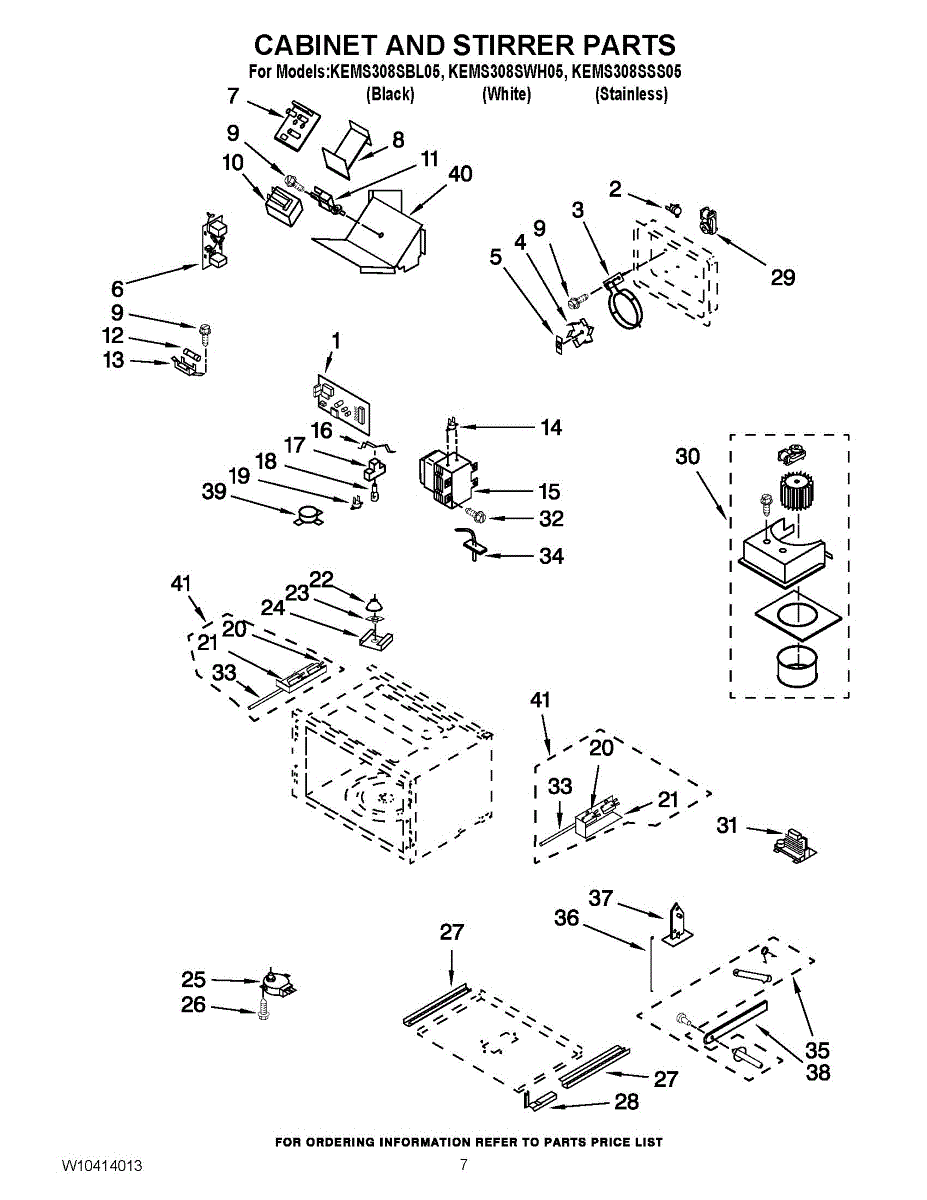

Parts for Kitchenaid KEMS308SSS05: 06 - Cabinet And Stirrer Parts

Fix a microwave that won't respond to buttons or is completely dead. This main control board restores cycle selection and electronic operation.

The Thermal Fuse is an OEM component specifically designed for Whirlpool ovens. As an important safety device, it is located near heat-producing elements inside the oven cavity.

Causes of a bad thermal fuse include overheating of elements or surrounding components over time, which can eventually blow the fuse.

Symptoms of a faulty thermal fuse include:

• The oven failing to heat or operate heating cycles fully
• Heating elements abruptly shutting off during baking
• An unusual burning smell emanating from the oven

This genuine OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models as well.

Oven not heating or not getting hot enough? This convection heating element restores proper temperature. Requires testing control board power first.

This evaporator fan moves cold air across the evaporator and through the refrigerator cabinet to keep temperatures even and food properly chilled. Replacing a failing fan restores airflow and helps the cooling system work efficiently. What it does:

• Circulates cold air from the evaporator to maintain even temperatures in the fresh-food and freezer compartments
• Promotes proper defrosting by moving air over the evaporator coils
• Reduces frost buildup and helps the compressor run less frequently when working correctly
• Common symptoms of a bad fan: loud or unusual noise from the fridge, warm compartments, or uneven cooling

• One evaporator fan assembly

• Disconnect power to the appliance before starting any repair
• Remove interior panels or shelving as needed to access the evaporator fan; follow OEM instructions for disassembly
• Handle evaporator coil area and sheet metal with care—sharp edges can cause injury
• After installation, restore power and check for improved cooling and absence of abnormal noise

The Support is an OEM part for Whirlpool microwaves, designed to secure the heating element in place. This support ensures the stability and proper functioning of the microwave's heating element, which is essential for cooking and heating food evenly.

Causes of failure can range from normal wear and tear over time, which can weaken the material of the support, to accidental damage during cleaning or use.

Symptoms of a bad Support include:

• The heating element becoming loose or misaligned, leading to uneven cooking or heating.
• Excessive vibration or noise from the microwave during operation, indicating a lack of stability.
• Visible wear or damage to the support, such as cracks or warping from heat exposure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Control panel not responding or display flickering? This transformer supplies low-voltage power to your microwave's control board, restoring reliable operation.

This line fuse protects the appliance's incoming power circuit by opening if an overload or short occurs. Replacing a blown fuse can help restore power once the underlying issue is corrected, preventing further damage to sensitive components.

• Interrupts line voltage when excessive current or a short circuit is detected
• Typical symptoms: unit completely dead, no display or interior lights, won't start or run
• Fuse tests open/no continuity with a multimeter when blown
• A blown fuse often points to another fault that must be addressed

• Disconnect power at the breaker/unplug before servicing; microwaves contain high-voltage parts that can retain a dangerous charge even when unplugged
• Replace only with the same type and rating as the original fuse
• Ensure the fuse seats firmly in its holders; do not bypass or jumper a fuse

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This temperature sensor monitors refrigerator temperature and sends readings to the control board so the appliance can regulate cooling. Replacing a failing sensor restores accurate temperature feedback for reliable cooling performance. What it does

• Measures internal temperature and reports it to the refrigerator control board
• Helps the system cycle the compressor and fans correctly for stable temperatures
• Commonly linked to symptoms like poor cooling, frequent compressor run, or temperature-related error codes
• Works as the sensing element for automatic defrost and temperature-control routines

• One temperature sensor (thermistor) with attached lead

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the sensor and wiring gently; secure the lead per factory routing to avoid contact with moving parts
• May require basic hand tools and access to the evaporator/thermostat area

Microwave not heating but runs normally? The magnetron generates microwave energy for cooking. Moderately difficult repair requiring careful handling.

Replace your microwave light socket to restore interior lighting. Install when bulbs won't stay secure or connections fail. Confirm fit with your model.

Halogen light bulb illuminates your microwave or oven cavity. Replace when light dims or burns out after extended use. Confirm fit with model number.

 The Thermostat is an OEM part for Whirlpool microwaves. It is a temperature-sensitive component that monitors heat levels inside the oven cavity during operation.

Causes may include damage from exposure to moisture or debris over time that disrupts accurate readings.

Symptoms of a faulty thermostat include:

• Incomplete or inconsistent heating with uneven hot/cold spots
• Food not reaching expected doneness after preset times
• Overheating errors or cycle interruptions

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Microwave won't start when door closes? This door interlock assembly restores the safety switch mechanism. Requires panel removal to install.

Microwave light reflector directs bulb illumination inside cooking cavity. Replace if cracked, discolored, or missing to restore proper lighting. Confirm fit with your model number.

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

Microwave turntable won't rotate or stops under load? This turntable motor restores even heating. Accessed from the bottom with basic tools.

Mounting bracket that secures internal microwave components. Replace if your original bracket is cracked, broken, or missing to restore proper alignment.

Replace a worn, cracked, or broken microwave door hinge to restore smooth door movement and proper alignment. Ensures the door opens, closes, and seals.

Fixes uneven cooking or browning in convection mode. This motor circulates heated air throughout the cavity for consistent baking results.

If your microwave overheats or ventilation has stopped working, the fan motor likely needs replacement. Circulates air to regulate temperature.

Microwave won't heat or shows F1E5 error? The inverter regulates power to the magnetron. Intermediate repair, 1-2 hours with full disassembly required.

Microwave door won't open when you press the button? This release rod connects the button to the latch mechanism, restoring smooth door operation.

Fix inaccurate oven temperatures or temperature error codes with this oven temperature sensor. Monitors cavity heat for precise baking and broiling control.

Door hinge arm that connects the microwave door to the chassis and supports smooth opening and closing. Works with hinge springs to control door movement. Replace if door sags or won't align properly.

This tension spring restores proper movement and tension for the appliance component it secures, helping the part operate smoothly and reliably. It's a simple replacement that fixes common issues caused by worn or broken springs. What it does:

• Provides tension to hold or return a moving component to its correct position
• Helps stop sagging, slipping, or loose operation of doors, latches, or levers
• Can reduce rattling or unusual noises caused by a failed spring
• Restores normal mechanical action when the original spring is stretched or broken

• Disconnect power to the appliance before starting any repair
• Springs can be under tension—use appropriate tools and wear eye/hand protection
• Compare the new spring to the old one for length, coil size, and end fittings before installation

Replacement mounting bracket that secures internal microwave components. Restores proper alignment and stability. Ideal when original is cracked or broken.

Fix inaccurate oven temperatures or won't heat issues with this oven cavity temperature sensor. Restores precise temperature control for reliable baking.

Microwave won't start or stops mid-cycle? This door interlock bracket aligns the switch mechanism for proper door sensing. Moderate DIY repair.
