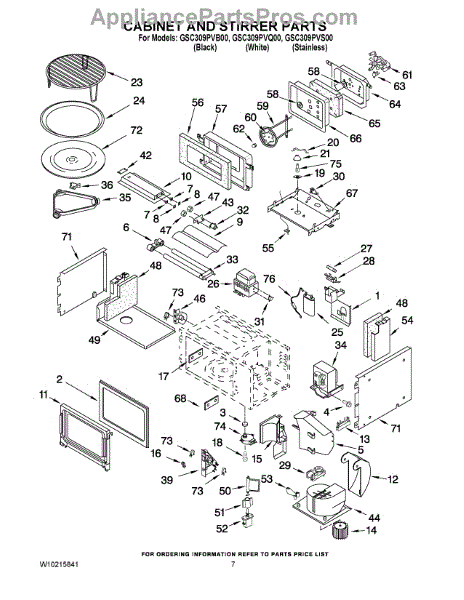

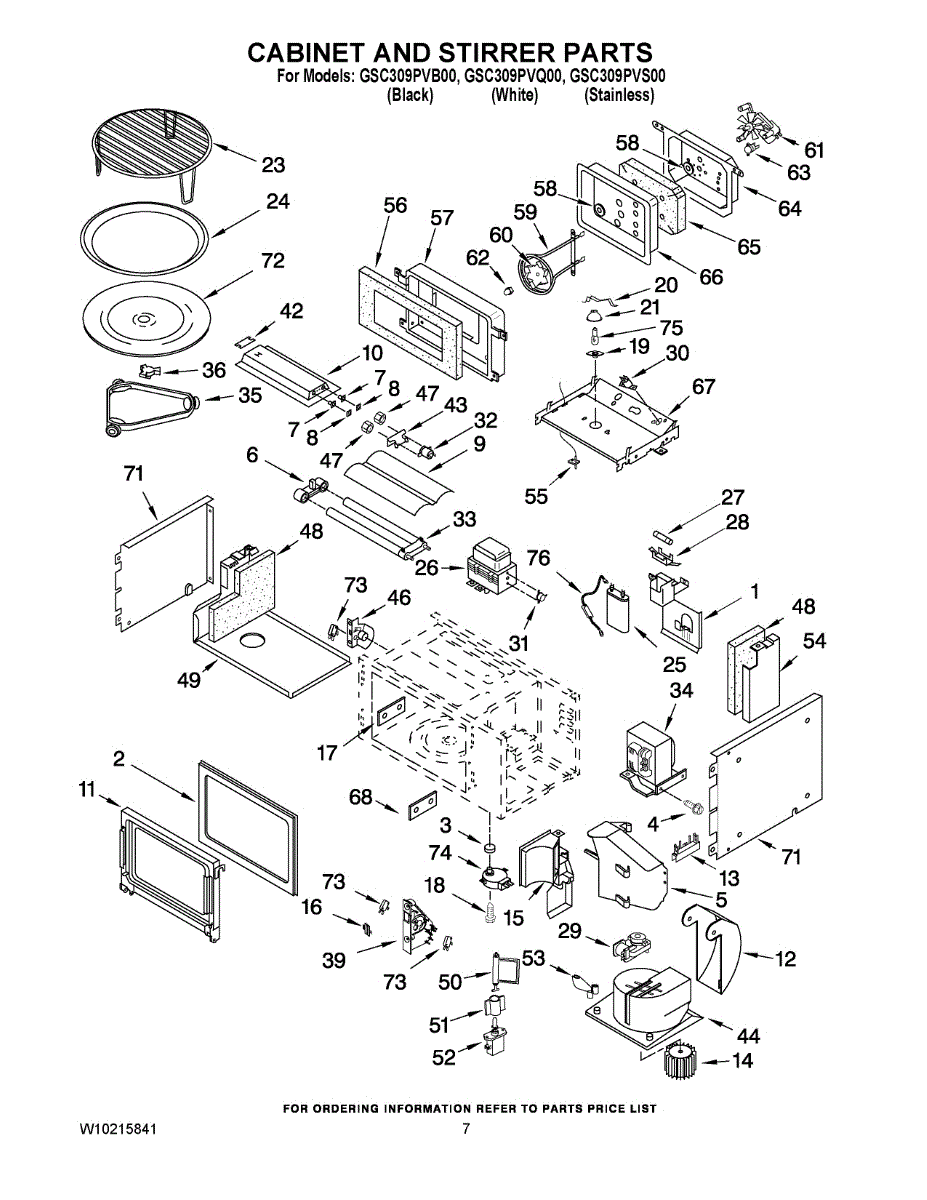

Parts for Whirlpool GSC309PVB00: 06 - Cabinet And Stirrer Parts

Color: Black.

Replacement mounting screw secures exterior panels, trim, or internal components. Needed when original fastener is missing, stripped, or damaged.

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

Microwave light reflector directs bulb illumination inside cooking cavity. Replace if cracked, discolored, or missing to restore proper lighting. Confirm fit with your model number.

Removable cooking rack for convection or combination cycles in microwaves. Elevates food for proper airflow and browning. Replace if missing or damaged.

Replacement cookware for your microwave. Restores missing or damaged cookware pieces. Essential when original cookware is cracked, broken, or lost.

Microwave not heating? This high voltage capacitor works with the magnetron and diode to generate heat. Moderate DIY repair with proper safety precautions.

Fix a microwave that runs but won't heat food with this magnetron replacement. Moderately difficult repair requiring capacitor discharge safety steps.

This line fuse protects the appliance's incoming power circuit by opening if an overload or short occurs. Replacing a blown fuse can help restore power once the underlying issue is corrected, preventing further damage to sensitive components.

• Interrupts line voltage when excessive current or a short circuit is detected
• Typical symptoms: unit completely dead, no display or interior lights, won't start or run
• Fuse tests open/no continuity with a multimeter when blown
• A blown fuse often points to another fault that must be addressed

• Disconnect power at the breaker/unplug before servicing; microwaves contain high-voltage parts that can retain a dangerous charge even when unplugged
• Replace only with the same type and rating as the original fuse
• Ensure the fuse seats firmly in its holders; do not bypass or jumper a fuse

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This Is A Blower Motor !!!! For Turntable Motor Use W10642989!!!!

This fixed thermostat protects the appliance by opening the circuit when excessive heat is detected. Replacing a failed or weak thermostat restores reliable over-temperature protection and helps prevent heat-related shutdowns.

• Opens the circuit if the protected area overheats to help prevent damage to components
• Helps with symptoms like unexpected shutdowns during operation or no power after overheating
• Can be the cause when the unit only runs again after cooling down
• Helps maintain safe operating temperatures around heat-sensitive parts

• Disconnect power before servicing; some appliances contain high-voltage components
• Access location varies by model; note wire positions before removal and transfer one lead at a time
• Reuse existing mounting hardware; ensure firm terminal connections and correct orientation
• After replacement, confirm proper airflow/venting and normal operation

Fix a microwave that won't heat or has loud vibrations during heating cycles. This low-voltage transformer powers control boards and prevents heating failures.

Per Whirlpool Kit no longer comes with the coupler. This is the Ring only. If coupler is needed order part WP8183788

Turntable stopped spinning or rotating unevenly? This microwave turntable coupler connects the motor to the glass tray to restore smooth rotation.

Fix a microwave displaying 'DOOR' error or won't start with this door switch kit. Contains 3 switches that work together to detect door closure.

Fix a microwave displaying 'DOOR' error or won't start with this door switch kit. Contains 3 switches that work together to detect door closure.

Fix a microwave displaying 'DOOR' error or won't start with this door switch kit. Contains 3 switches that work together to detect door closure.

Fix a microwave displaying 'DOOR' error or won't start with this door switch kit. Contains 3 switches that work together to detect door closure.

This is the left side insulation. For right side use 4375410.

This is the right side insulation. For left side use 4375409.

This evaporator fan moves cold air across the evaporator and through the refrigerator cabinet to keep temperatures even and food properly chilled. Replacing a failing fan restores airflow and helps the cooling system work efficiently. What it does:

• Circulates cold air from the evaporator to maintain even temperatures in the fresh-food and freezer compartments
• Promotes proper defrosting by moving air over the evaporator coils
• Reduces frost buildup and helps the compressor run less frequently when working correctly
• Common symptoms of a bad fan: loud or unusual noise from the fridge, warm compartments, or uneven cooling

• One evaporator fan assembly

• Disconnect power to the appliance before starting any repair
• Remove interior panels or shelving as needed to access the evaporator fan; follow OEM instructions for disassembly
• Handle evaporator coil area and sheet metal with care—sharp edges can cause injury
• After installation, restore power and check for improved cooling and absence of abnormal noise

The Thermal Fuse is an OEM component specifically designed for Whirlpool ovens. As an important safety device, it is located near heat-producing elements inside the oven cavity.

Causes of a bad thermal fuse include overheating of elements or surrounding components over time, which can eventually blow the fuse.

Symptoms of a faulty thermal fuse include:

• The oven failing to heat or operate heating cycles fully
• Heating elements abruptly shutting off during baking
• An unusual burning smell emanating from the oven

This genuine OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models as well.

Replace your microwave's broken or cracked glass turntable tray. This circular rotating plate sits on the cavity floor to hold food during cooking.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Microwave turntable won't rotate or makes rattling noise? This motor drives the glass tray for even heating. Easy 10-minute DIY fix with basic tools.

Illuminates the microwave interior for visibility during cooking. Replace when burnt out or dim. Confirm fit with your model number before ordering.

Microwave not heating or making loud humming noise? The diode converts AC to DC power for the magnetron. Moderate difficulty repair, 1-2 hours.
