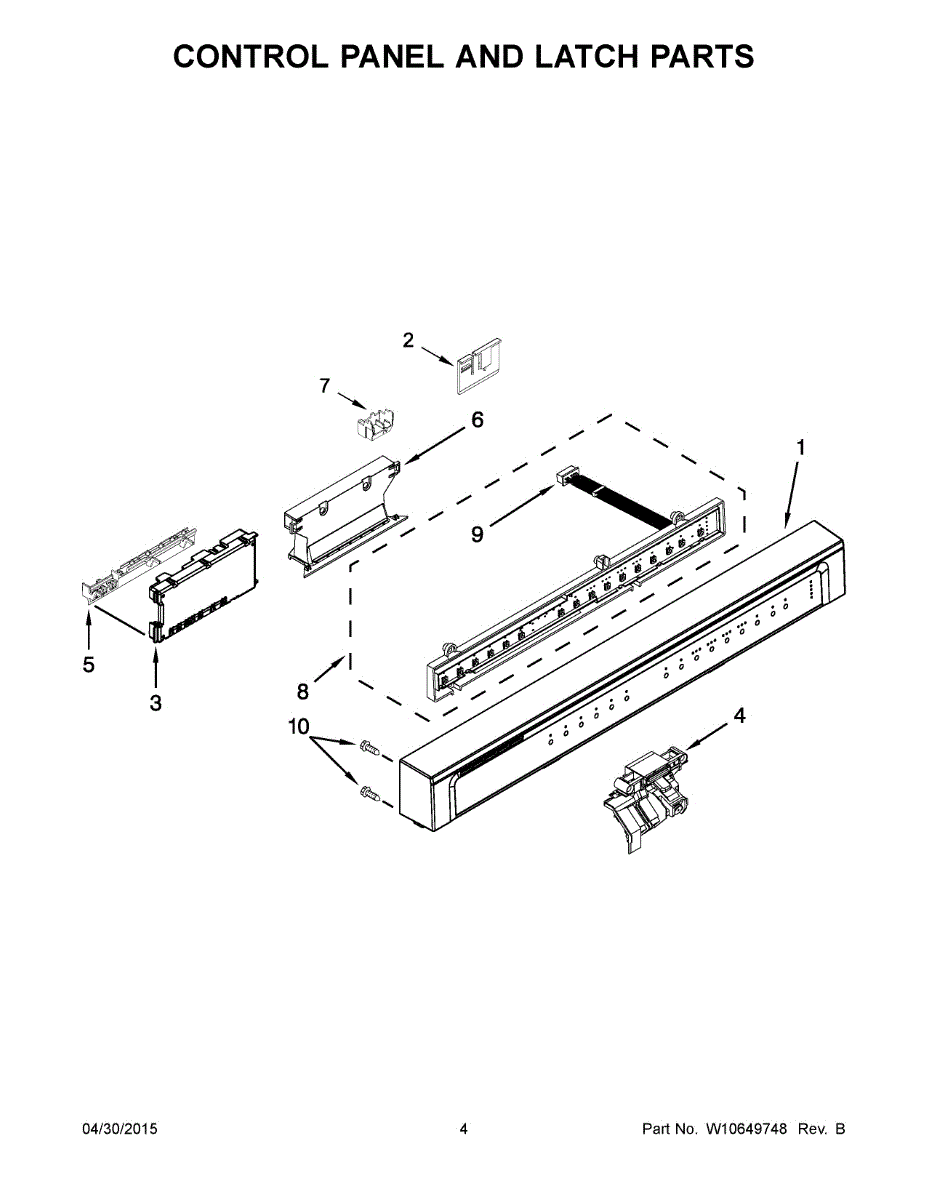

Parts for Whirlpool WDF750SAYM3: 03 - Control Panel And Latch Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Dishwasher buttons not responding or display blank? This control panel console assembly restores touchpad controls and the display. Moderate DIY repair.

Fix unresponsive buttons, blank display, or non-working start button with this dishwasher control panel. Restores cycle selection and status lights.

Secures trim and panels in dishwasher assemblies. Replace if clip is broken, missing, or worn. Prevents loose parts and rattling during operation.

This Electronic Control Board is the appliance's central control module. It interprets inputs from sensors and switches and directs power to motors, valves, heaters, and fans to run cycles reliably when the original board has failed.

• Manages overall operation by processing signals and executing programmed cycles
• Sends power/commands to components such as motors, pumps, fans, heaters, and valves
• Typical symptoms of a failed board: no power or won't start, unresponsive controls, cycles that won't advance, intermittent shutdowns, or error codes
• Useful when diagnostics point to control failure after ruling out fuses, switches, sensors, and wiring

• Disconnect power before servicing; turn off water supply if applicable
• Use ESD protection and handle the board by its edges
• Photograph/label all connectors; move harnesses one at a time and transfer any jumpers/settings from the old board if present
• Mount securely, reconnect wiring, reassemble, then run the unit's diagnostic/self-test per the service manual

If your dishwasher door won't stay closed or latch properly, this door latch assembly is the likely fix. Easy DIY repair takes about 1 hour to complete.

Secures internal support braces to keep panels and assemblies aligned inside your dishwasher. Replace if cracked, broken, or missing to restore stability.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Fix a broken or cracked dishwasher door handle that makes it hard to open or close. This recessed pocket-style handle restores grip and appearance.

Fix intermittent power issues or loose connections in your dishwasher. This wire connector restores secure electrical contact between components.

Replacement control panel housing for dishwashers. Holds and protects the user interface, touchpad, and display. Needed when housing is cracked or broken.

This replacement single-conductor wire restores an electrical connection between components, helping re-establish power or signal flow for appliances that use a discrete lead. It's a simple, direct swap when the original lead is damaged or broken. What it does:

• Carries electrical power or signals between appliance components
• Replaces frayed, cut, or corroded wiring that can cause intermittent operation
• Helps resolve symptoms like loss of power to a component, intermittent function, or visible wire damage
• Maintains the original circuit routing when used as a like-for-like replacement

• Turn power off at the breaker or unplug the appliance before starting work
• Match wire color, gauge, and terminal type to the original for a proper replacement
• Use proper connectors and secure routing to avoid pinching or heat exposure

This replacement screw secures panels, brackets, and other components inside your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and keeps parts anchored as designed.

• Fastens metal or plastic panels, brackets, and internal components
• Replaces missing, damaged, or stripped screws
• Helps resolve vibration, rattling, or loose-fitting parts
• Maintains proper alignment and secure mounting points

• Disconnect power and shut off water/gas supplies before service
• Match the screw to its original location; your model's diagram to placement
• Start threads by hand and use the correct driver to avoid stripping
• Do not overtighten, especially into plastic or thin sheet metal
