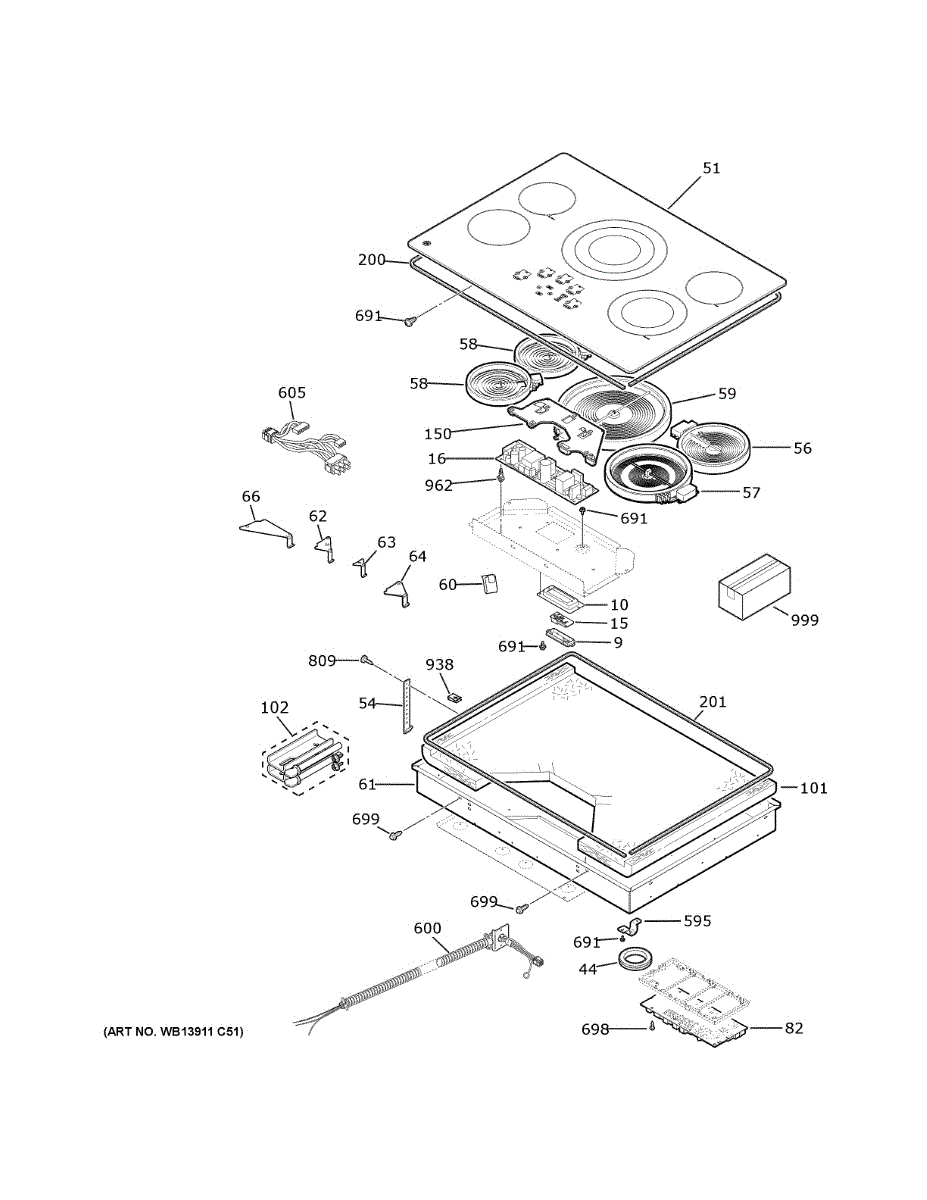

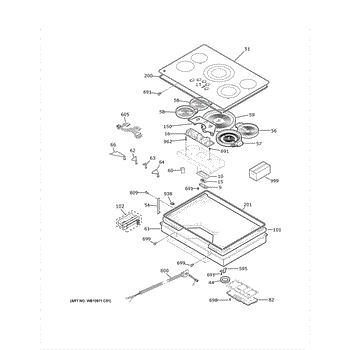

Parts for Ge PEP7036DT1BB: Control Panel & Cooktop Parts

Replace a cooktop power supply board if your unit won't turn on, burners don't heat, or controls are unresponsive. Restores electrical regulation.

Hold down bracket secures cooktop components in place. Replace if bent, broken, or missing to properly mount internal parts and maintain stability.

Burner not heating? This 5.5" radiant element fits beneath glass cooktops. Common fix for non-working burners. Moderate DIY, 20-30 minutes to replace.

Burner won't heat or heats unevenly? This 8-inch radiant surface element restores even heating to your smooth-top cooktop. Moderate DIY repair.

Burner won't heat or heats unevenly? This 6 inch radiant element restores consistent cooking performance. Typical DIY repair takes 30-45 minutes.

Burner not heating or won't turn on? This radiant heating element restores heat to your cooktop. DIY-friendly repair takes about 10 minutes to install.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket secures a radiant surface heating element to the cooktop assembly, keeping the element aligned and stable for consistent heating. It's a direct-fit mounting piece used when the element won't sit or stay properly. What it does

• Fastens the radiant surface element to the cooktop for stable positioning.
• Maintains proper alignment so the element makes reliable electrical and physical contact.
• Common symptom: element shifts, wobbles, or won't stay seated.
• Common symptom: visible looseness or misalignment under the glass or around the burner opening.

• One radiant element mounting bracket.

• Disconnect power at the breaker or unplug the range before starting work.
• Handle glass cooktops and ceramic surfaces carefully to avoid chips or cracks.
• Use basic hand tools; follow the oven/range service manual for removal and reassembly steps.

This mounting bracket secures a range's radiant cooktop element to the cooktop assembly so the heating element stays properly positioned for safe, even operation. Designed to replace a worn or damaged support bracket. What it does:

• Holds the radiant cooktop element in the correct position and alignment
• Restores stable contact between the element and cooktop for reliable heating
• Helps prevent element movement, misalignment, or intermittent contact
• Fits where the original bracket is bent, cracked, or broken

• High-level replacement only; disconnect power at the breaker before starting
• May require removal of the cooktop or element for access—follow the appliance OEM service manual
• Use proper fasteners and torque to avoid damaging the cooktop or element

This mounting bracket secures a radiant cooktop element to the range frame so the element stays properly positioned for safe, reliable heating. Replacing a damaged bracket restores stable element support and alignment. What it does:

• Holds the radiant surface element firmly in place to prevent movement during use
• Maintains correct element spacing for even heat and safe operation
• Prevents the element from sagging, vibrating, or shifting when knobs are turned or cookware is moved
• Helps avoid intermittent contact that can cause heating issues

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle the glass/ceramic cooktop and element carefully to prevent cracking or injury
• Reuse existing fasteners if undamaged; replace hardware only with OEM-specified parts

This replacement bracket secures a radiant surface heating element to the cooktop for stable operation and correct alignment. It helps restore proper element positioning so the burner sits flush and heats reliably. What it does:

• Anchors the radiant element to the cooktop frame to prevent shifting during use
• Maintains correct element spacing so heat transfers evenly across cookware
• Prevents movement that can cause arcing, uneven heating, or poor contact
• Used when the original bracket is bent, broken, or worn

• Disconnect power to the range at the breaker before servicing
• Handle ceramic/glass cooktop parts carefully to avoid damage
• Remove the element and existing bracket, then secure the new bracket and reinstall the element
• If you see damaged element terminals or mounting hardware, replace those parts as needed

This oven cavity insulation panel helps retain heat inside the oven for more even cooking and reduces heat transfer to surrounding components. It's a direct-replacement oven insulation piece designed to restore proper thermal performance. What it does:

• Provides thermal barrier around the oven cavity to help maintain cooking temperatures
• Reduces heat transfer to adjacent parts and cabinet surfaces to protect components
• Helps improve oven temperature stability and efficient operation when installed correctly
• Addresses symptoms like excessive exterior heat or uneven cooking when damaged or missing

• Disconnect power (and gas if applicable) before starting any repair and allow the appliance to fully cool
• Handle with care and wear gloves; insulation fibers may irritate skin or lungs
• Ensure panel is positioned and secured as original—do not compress or block vents

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

Seals and cushions panel joints in your cooktop. Replace when original tape becomes brittle, flattened, or missing to contain heat and reduce vibration.

Foam seal tape creates an airtight barrier between your cooktop and countertop, preventing spills from dripping into cabinets. Replace when worn or gaps appear.

This main power wire harness routes electrical power between the appliance power input and internal components to restore reliable power delivery. It replaces damaged or worn wiring that can cause intermittent power or loss of function. What it does:

• Transfers incoming mains power to the appliance's control and internal components
• Replaces frayed, broken, or melted wiring that can cause intermittent power or no power
• Restores secure plug-and-socket connections to eliminate loose or arcing contacts
• Helps eliminate symptoms such as appliance not powering on, flickering controls, or blown fuses

• One replacement main power wire harness as shown

• Disconnect power at the mains before starting any service
• Replace the harness only if the correct part matches your appliance's harness connector and routing
• Route harness away from moving parts and sharp edges; secure with original clips or ties
• If you see burning, melting, or damaged connectors, inspect associated components and replace as needed

Replacement mounting screw for securing panels, trim, and internal brackets. Needed when original fasteners are missing, stripped, or damaged.

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

Plastic standoff that secures and spaces the control board from the chassis. Replace if broken, missing, or worn to restore proper board mounting and insulation.
