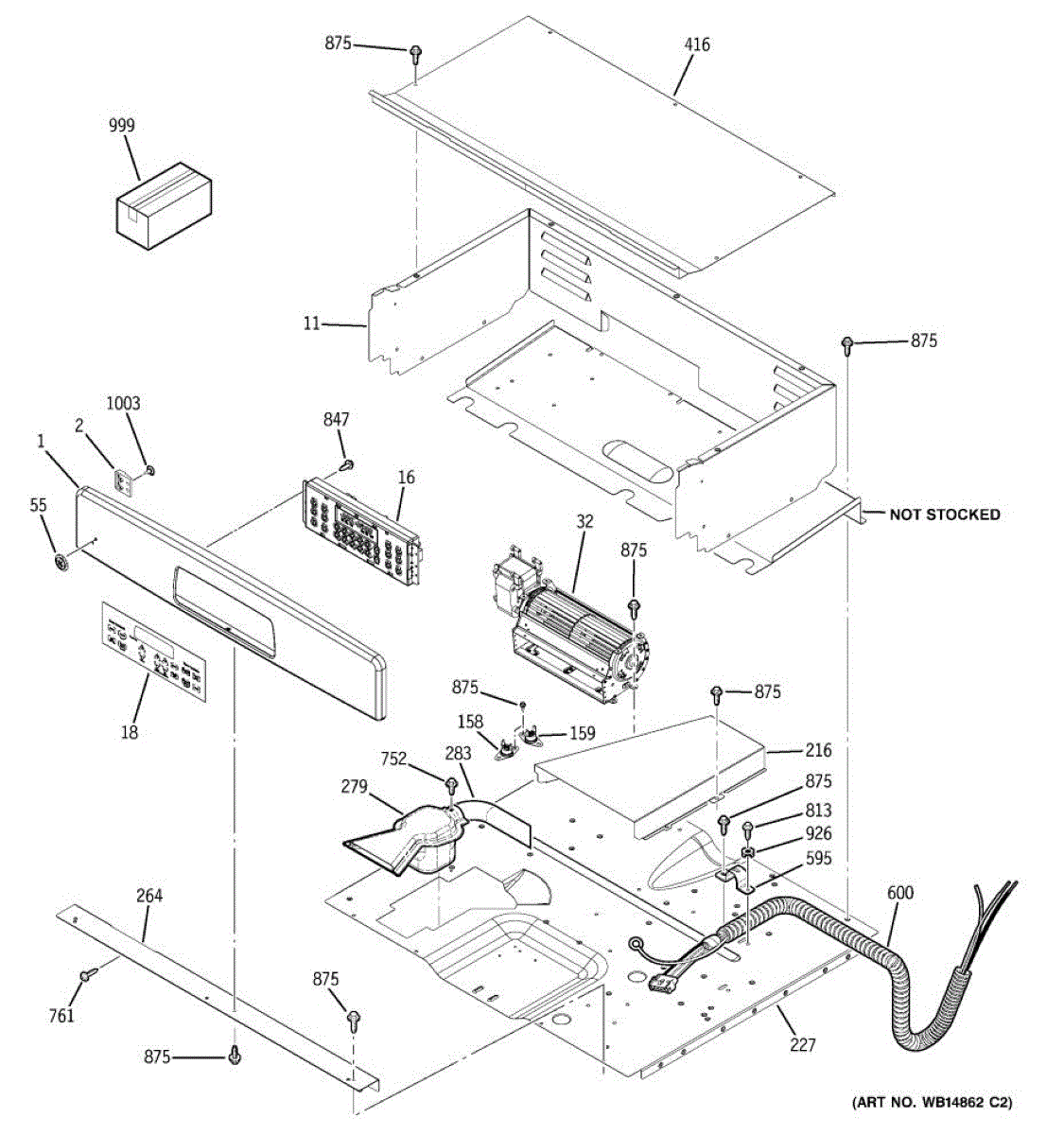

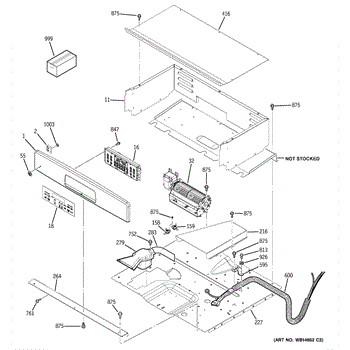

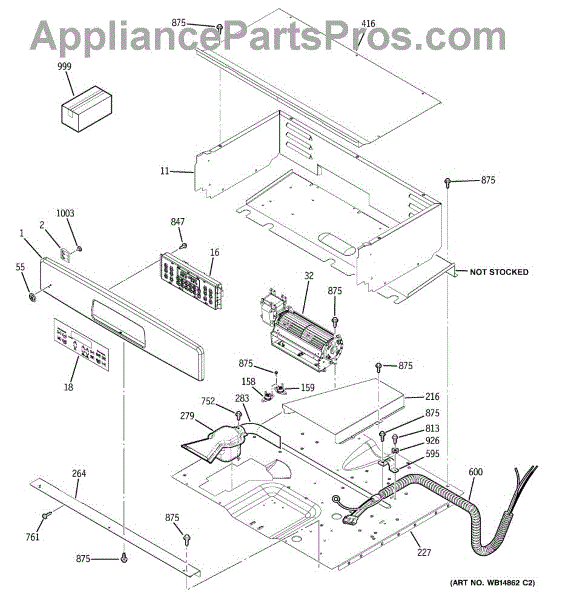

Parts for Ge JKP30DP2BB: 01 - Control Panel Parts

Mounting bracket that secures the control console and circuit board to the oven frame. Replace if cracked, broken, or causing misalignment issues.

Supports and secures the oven fan motor and blades. Replace if housing is cracked, broken, or damaged to restore proper airflow and cooling.

Replaces a cracked, warped, or cosmetically damaged oven control panel faceplate. Restores front appearance and provides mounting for buttons and display.

Replaces cracked, peeling, or worn control panel faceplate on your oven. Covers and protects control assembly while restoring a finished appearance.

Replacement control panel faceplate overlay for ovens. Adhesive-backed sticker covers worn, bubbled, cracked, or peeling touchpad surfaces. Easy install.

Decorative nameplate badge for oven and range front panels. Replaces missing, worn, or damaged emblems to restore factory appearance. Includes adhesive.

If your oven overheats or won't turn on, a faulty limit switch may be cutting power to protect against fire hazards. Direct-fit safety cutoff part.

Fixes F1 or F2 error codes and prevents overheating in ovens. This safety switch monitors temperature limits to protect components. Direct fit part.

Protective cover that shields wiring at the top of your oven. Replace if cracked, broken, or missing to protect electrical connections and components.

Vent trim for ovens. Installs around the vent opening to provide a finished look. Replace if cracked, chipped, discolored, or missing.

Oven vent box assembly that routes hot air and steam from the cooking cavity. Replace if cracked, damaged, or missing to restore proper ventilation.

This electrical top cover protects the range's wiring and terminal connections at the rear top area, helping keep wiring secure and shielded from dust and contact hazards. It restores the factory appearance and basic wiring protection. What it does:

• Covers and protects the range's rear-top electrical terminals and wiring harness
• Helps prevent accidental contact with live terminals and reduces debris buildup
• Keeps wiring routed and secured to reduce strain on connections
• Restores the appliance's finished appearance where the cover was missing or damaged

• Disconnect power to the appliance at the breaker or unplug before servicing
• Access may require removal of a back panel or lifting the cooktop depending on model
• Secure with the original screws or fasteners; do not overtighten plastic mounting points
• If terminals or wiring show damage or corrosion, replace or repair those components before reassembly

This conduit wire assembly routes and protects electrical wiring for the appliance, restoring secure connections and safe signal/power routing. It's a direct-fit wiring harness used where factory conduit is required. What it does

• Replaces damaged or frayed conduit wiring to restore safe electrical routing
• Protects internal wires from chafing, heat, and vibration
• Ensures stable power/signal connections between components
• Helps eliminate intermittent electrical faults caused by broken wiring

• One conduit wire assembly as shown

• Recommended for installers or experienced DIYers; disconnect power before servicing
• Verify wire routing and connector orientation match factory harness before finalizing
• Inspect connectors and surrounding components for damage; replace other damaged pieces as needed
• Secure conduit with existing clips or fasteners; do not over-tighten

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8
