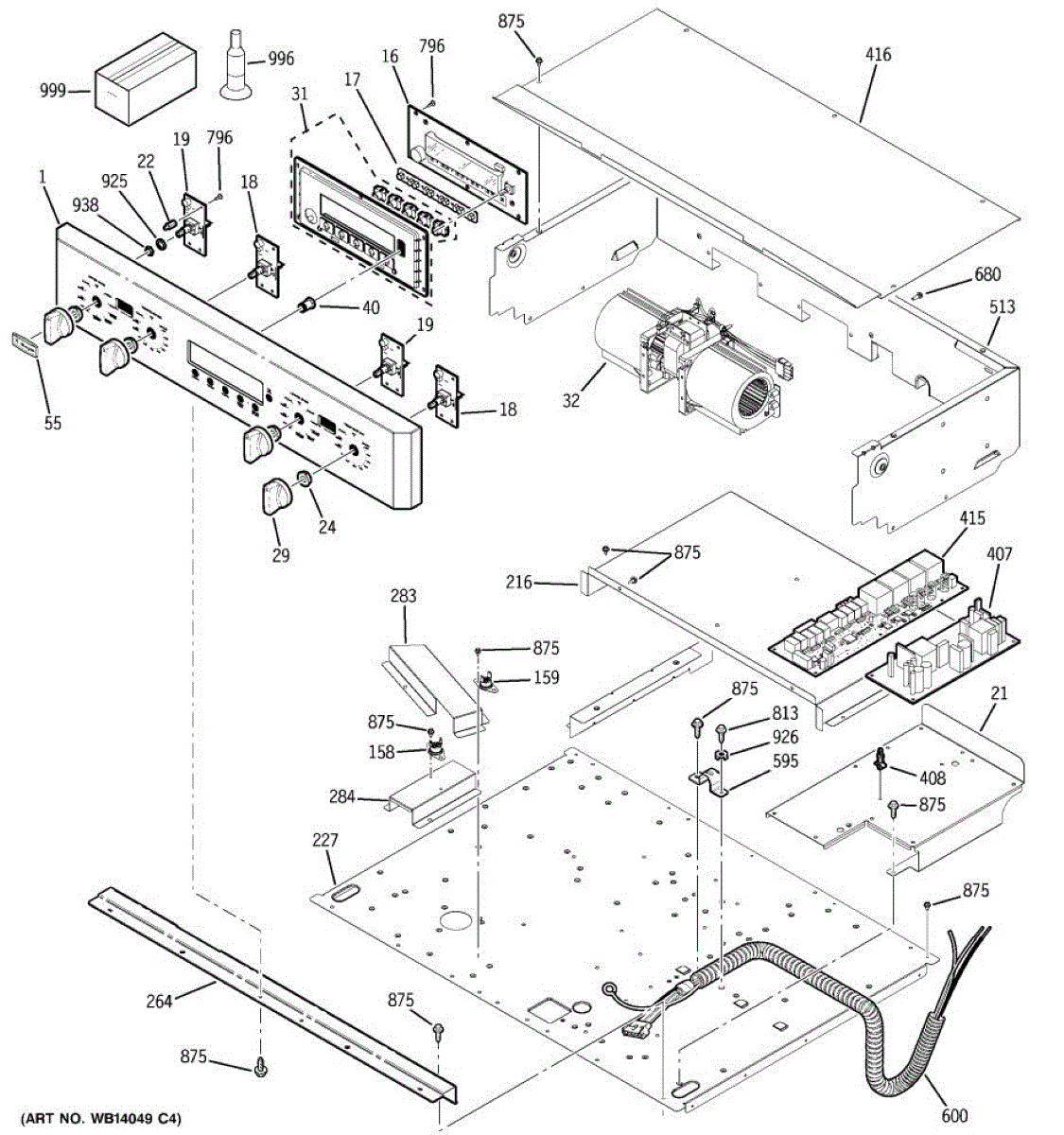

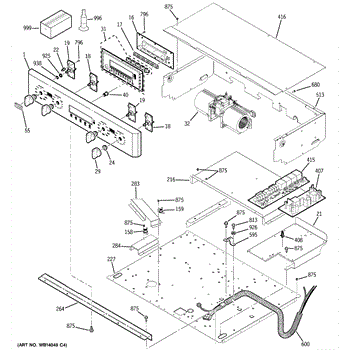

Parts for Ge ZET2SM3SS: 01 - Control Panel Parts

This control panel assembly restores the front console and user controls on a 30" range so you can select oven and cooktop settings easily and reliably. It replaces a damaged or non-responsive control panel to return normal operation. What it does:

• Houses the oven and cooktop control buttons/knobs and display for user input
• Routes signals from user controls to the range's control electronics
• Commonly used when buttons, touch controls, or the display are cracked, worn, or unresponsive
• Helps stop intermittent control failures caused by damaged front-panel components

• One control panel assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Some models require removing trim or bezels; retain screws and hardware for reassembly
• Handle the assembly carefully to avoid damaging the display or ribbon connectors

Control panel bushing cushions and supports your oven's control panel, preventing wear where it contacts the cabinet. Replace if cracked, broken, or missing.

Fix F9 error codes and overheating control panels with this cooling fan motor. Restores airflow to protect internal components. Moderate DIY repair.

The Fan Kit is an OEM part for GE ovens and ranges. This part regulates the internal temperatures and preventing overheating.

Causes of a bad Fan Kit can stem from motor failure due to wear and tear, obstructions or debris blocking proper airflow, or damage to the fan blades or housing.

Symptoms of a bad Fan Kit include:

• Excessive heat buildup inside the oven cavity
• Failure of the oven to maintain consistent temperatures
• Strange noises or lack of airflow from the fan

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Stainless steel timer knob for your oven control panel. Replaces cracked, broken, or missing knobs to restore function and appearance of your appliance.

Small adhesive MG logo emblem for appliance exterior. Restores original appearance when factory badge is worn, faded, missing, or damaged. Easy peel-and-stick.

Fix oven overheating or F9 error codes with a thermal limit switch replacement. This safety shutoff prevents damage when temperature exceeds safe limits.

This bimetal limit switch monitors a radiant surface element's temperature and opens the circuit if it overheats, helping your cooktop maintain safe, consistent heating while protecting wiring and controls from damage. What it does:

• Senses surface element temperature via a bimetal sensor
• Opens/closes the circuit to limit element temperature and prevent overheating
• Helps the burner cycle properly for more consistent heat
• Common symptoms: no heat, low heat/cycles off too soon, overheating, or erratic cycling

• One bimetal limit switch

• Disconnect power at the breaker before servicing
• Access the element, note wire positions, and transfer leads to the new switch one at a time
• Mount firmly to the element/bracket so the sensor has correct contact
• Do not bend or adjust the sensor; replace if damaged

Inner vent trim piece for wall ovens. Installs around the interior ventilation area to provide a finished look. Replace if cracked, discolored, or missing.

This oven exhaust duct channels hot air and cooking fumes out of the oven cavity to the range venting system, helping maintain proper oven temperature and reduce smoke or odors. Replace a damaged or corroded duct to restore correct venting. What it does:

• Directs hot air and combustion/steam fumes from the oven cavity into the vent ductwork
• Helps maintain consistent oven temperature by providing a clear exhaust path
• Can reduce smoke, burning smells, or poor broil performance when functioning properly
• Prevents loose metal or debris from obstructing the vent path

• One oven exhaust duct

• Disconnect power to the range (and gas supply if applicable) before beginning work
• Access typically requires removing the oven back panel or range back; keep fasteners for reinstallation
• Watch for sharp sheet-metal edges and wear gloves and eye protection
• Reinstall panels and secure all fasteners; test oven operation and venting after replacement

Standoff bumper for ranges, ovens, and cooktops. Installs to provide spacing and support between components. Replace if cracked, broken, or missing.

Fix an oven that won't turn off or won't maintain temperature. This relay board controls power to bake and broil elements. Moderate DIY repair.

Replacement mounting screw for refrigerators. Secures brackets, panels, handles, and covers. Replace lost, stripped, or damaged screws to restore stability.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

This encoder is the motor speed sensor used on many front-load and top-load washing machines to monitor drum/motor rotation and help control cycle speed and direction. Replacing a faulty encoder restores accurate speed feedback for reliable operation. What it does

• Detects motor/drum rotation and sends speed signals to the washer control board
• Helps the control board regulate spin and agitation speeds
• Commonly associated with symptoms like no spin, no agitation, erratic cycle behavior, or drive-related error codes
• Works as part of the drive/motor control system; proper alignment and secure connection are required for correct readings

• Disconnect power before accessing the washer motor or control wiring to avoid shock or injury
• Handle the encoder and wiring harness carefully; avoid pulling on wires or bending terminals
• Verify connector seating and secure mounting to ensure accurate sensor readings
• After installation, run a diagnostic or test cycle to confirm normal spin/agitation operation

This nut secures the control panel encoder shaft so the selector knob stays firmly in place and maintains reliable signal contact. A small but essential fastener for stable user control and consistent cycle selection. What it does:

• Secures the encoder/shaft to the control panel assembly to prevent wobble or loosening
• Helps keep the encoder's electrical contact aligned for accurate signal input
• Can resolve symptoms like a loose or spinning selector knob or intermittent control responses
• Designed for direct replacement of the original mounting nut for the encoder

• One nut encoder (quantity: 1)

• High-level task: remove control panel or console to access the encoder shaft; reassemble panels after replacement
• Use proper tools to avoid stripping the nut or damaging the encoder shaft
• Power off and unplug the appliance before beginning any work to avoid shock or damage

Lubricant cleaner for range and oven control shafts, burner valves, and rack paddles. Dissolves residue and restores smooth operation when parts feel stiff.
