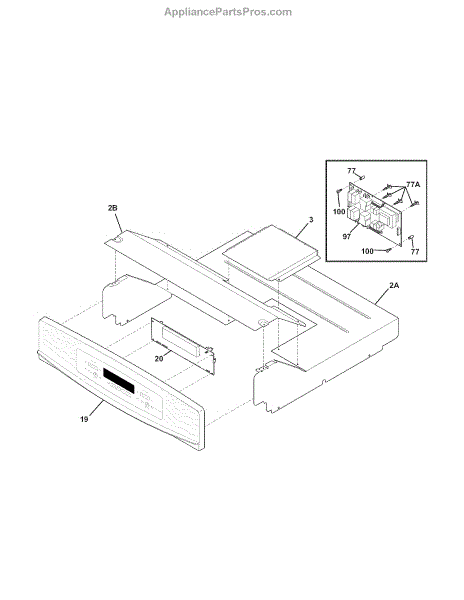

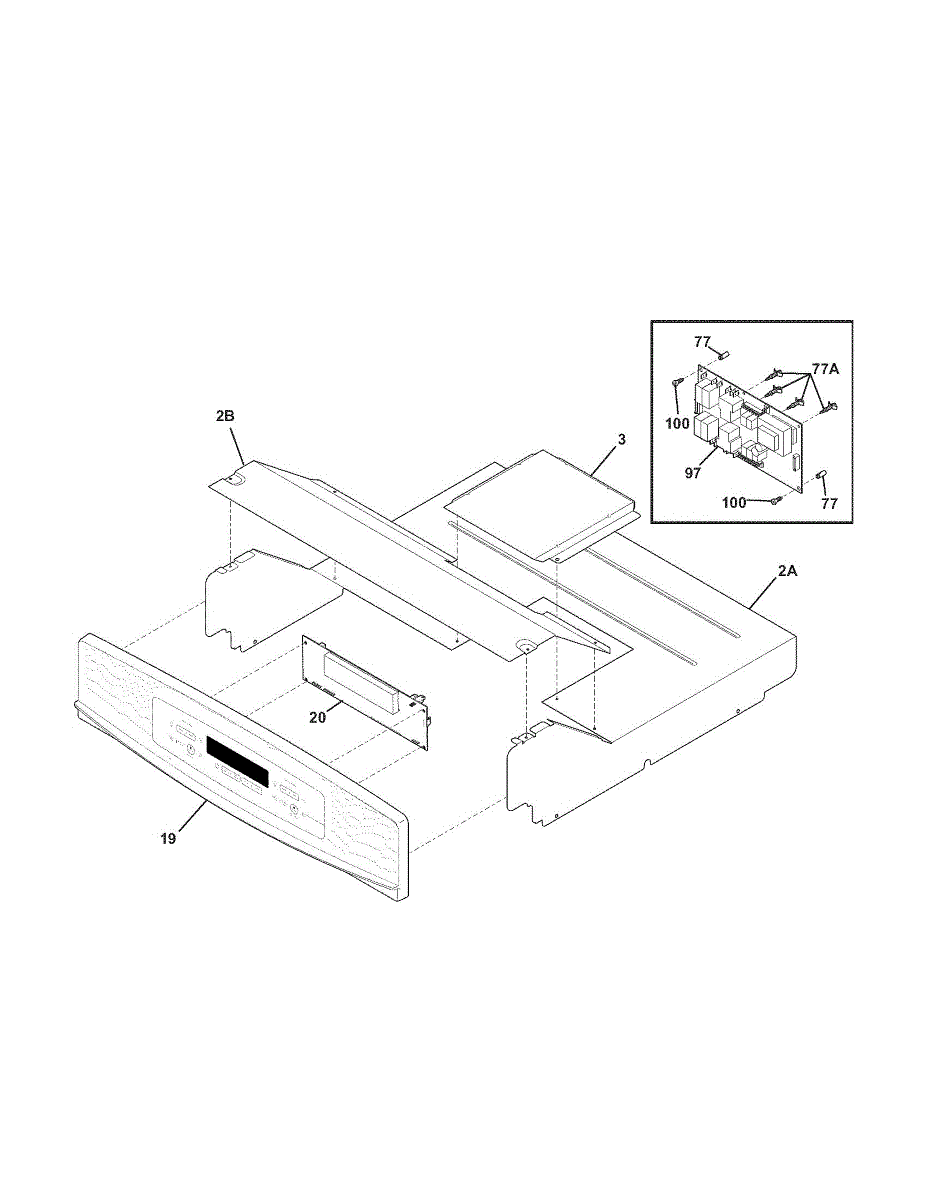

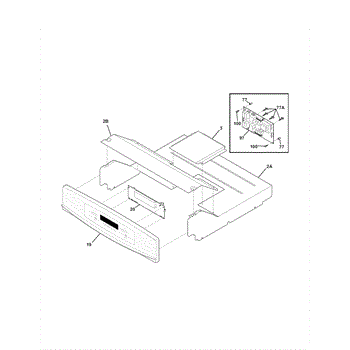

Parts for Kenmore 790.48763901 (79048763901, 790 48763901): Control Panel Parts

Replace your oven's housing cover if it's cracked, broken, or missing. This protective cover installs over internal components to maintain proper enclosure.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Fix an oven that won't heat, respond to settings, or display properly with a main electronic control board replacement. Manages all oven functions.

This repair parts list is the manufacturer's service sheet that identifies factory part names and numbers so technicians and DIYers can simplify ordering. Keep it with your service documentation for quick reference. What it does:

• Lists factory part names and reference numbers used for servicing the appliance
• Useful when diagnosing service issues or preparing for repairs
• Provides a concise, at-a-glance parts reference for technicians and owners

• No installation required; this is a reference document only
• Use alongside your model number and service manual when ordering parts
• Keep the sheet dry and with other appliance documentation for future service

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
