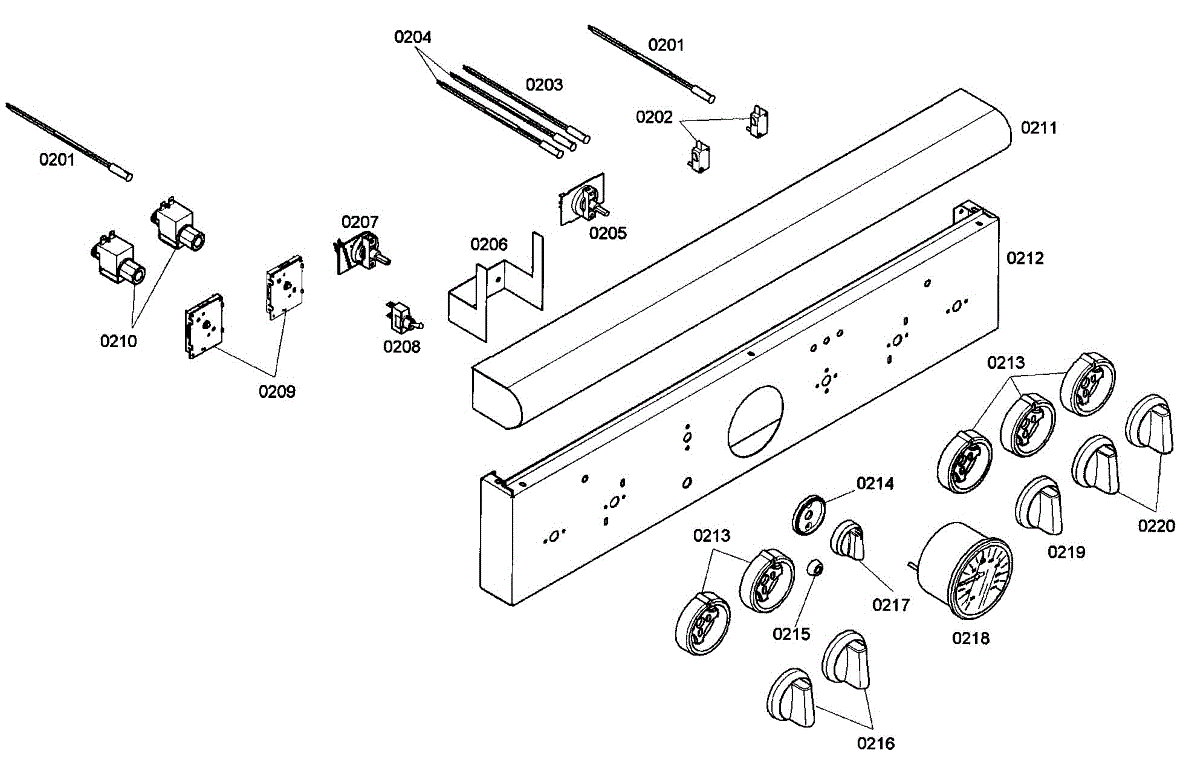

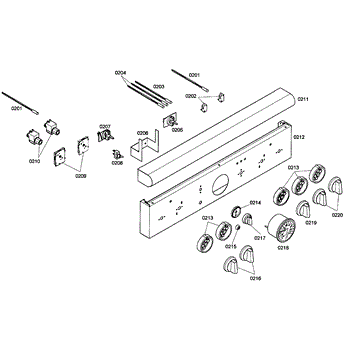

Parts for Thermador PRD304EG/02: Control Panel Parts

Fix blank screens, unresponsive controls, or error codes with this display control interface. Restores visible feedback and menu settings for your cooktop.

The Spark Ignition Switch is an OEM part for Bosch ranges and cooktops. It controls the ignition of surface burner flames by emitting an electrical spark when activated.

Causes of a bad switch can be general wear and fatigue over thousands of start cycles. Exposure to moisture, dust or metal debris could also damage electrical components internally.

Symptoms of a bad spark ignition switch include:

• Burners failing to light even when valves are turned on
• Intermittent or irregular lighting of some burners
• No electrical sparks emitted from the ignition electrode

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Gas range fixing kit secures components and prevents rattling or loosening. Replace when parts become loose or unstable. Verify fit with your model number.

Indicator light for gas ranges and cooktops. Replace when light burns out or fails to illuminate. Verify fit with your model number before ordering.

This rotary potentiometer converts shaft rotation into an electrical signal the control board can read, providing precise position feedback for user selections. Replace it if inputs become erratic, jump between settings, or the control stops responding.

• Provides rotary position feedback to the electronic control
• Enables accurate selection and adjustment of functions or setpoints
• Wear or damage can cause drifting, dead spots, or incorrect readings
• Intermittent or no response to input is a common failure symptom

• Disconnect power before servicing
• Access the control/console area to reach the component
• Note shaft orientation and any connector positions; transfer exactly to the new part
• Handle electronics with ESD care and verify smooth, full-range operation after reassembly

If your range knob won't switch between settings or heat levels are stuck, this selector switch restores control. Straightforward repair for most DIYers.

Fix unresponsive range controls with this push-button switch. Restores button function when controls stop working. Simple replacement for worn switches.

The Potentiometer is an OEM replacement part for Bosch gas range or cooktops. It functions as a three-terminal resistor that adjusts the flow of electric current, which in turn, controls the ignition and temperature of the cooktop. This component is essential for the precise operation and control of the gas burners, ensuring they light up and maintain the desired flame intensity.

Causes of a malfunctioning Potentiometer can be attributed to wear and tear, electrical issues, or damage due to spills and cleaning products. A compromised potentiometer affects the flow of electric current, leading to issues with the ignition and temperature control of the gas burners.

Symptoms of a bad Potentiometer include:

• The cooktop not lighting or staying lit
• The ignitor continuously clicking without igniting the burner
• Inability to adjust the flame intensity or temperature accurately

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Fixes burner not getting gas or won't ignite. Solenoid valve controls gas flow to individual burners. Moderate DIY repair for gas ranges and cooktops.

Burner ring that sits on top of the range cooktop around the burner element. Replace if yours is cracked, warped, discolored, or missing for a complete look.

Replace a cracked or missing spacer for your gas range. This small structural component helps maintain proper spacing between parts during installation.

Can't see your oven temperature? This range temperature display restores visible temperature readings and settings on your control panel for proper monitoring.

Round control knob for gas range burner and oven settings. Replaces cracked, stripped, or missing knobs. Restores secure grip and smooth turning on control shafts.
