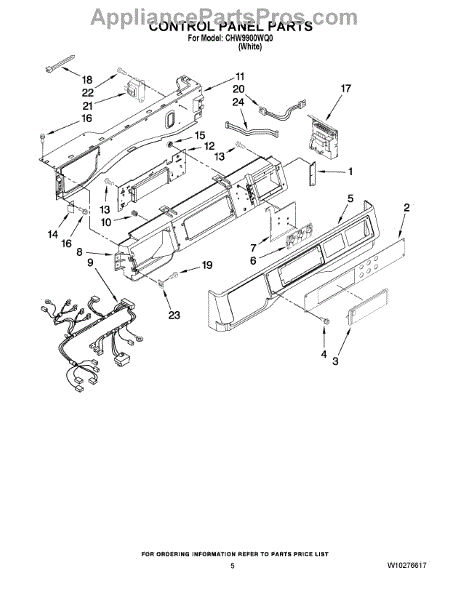

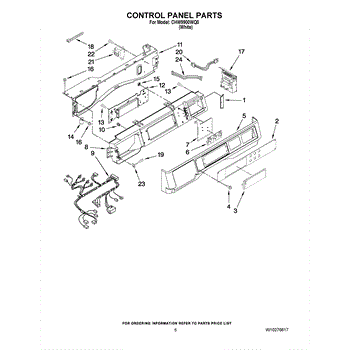

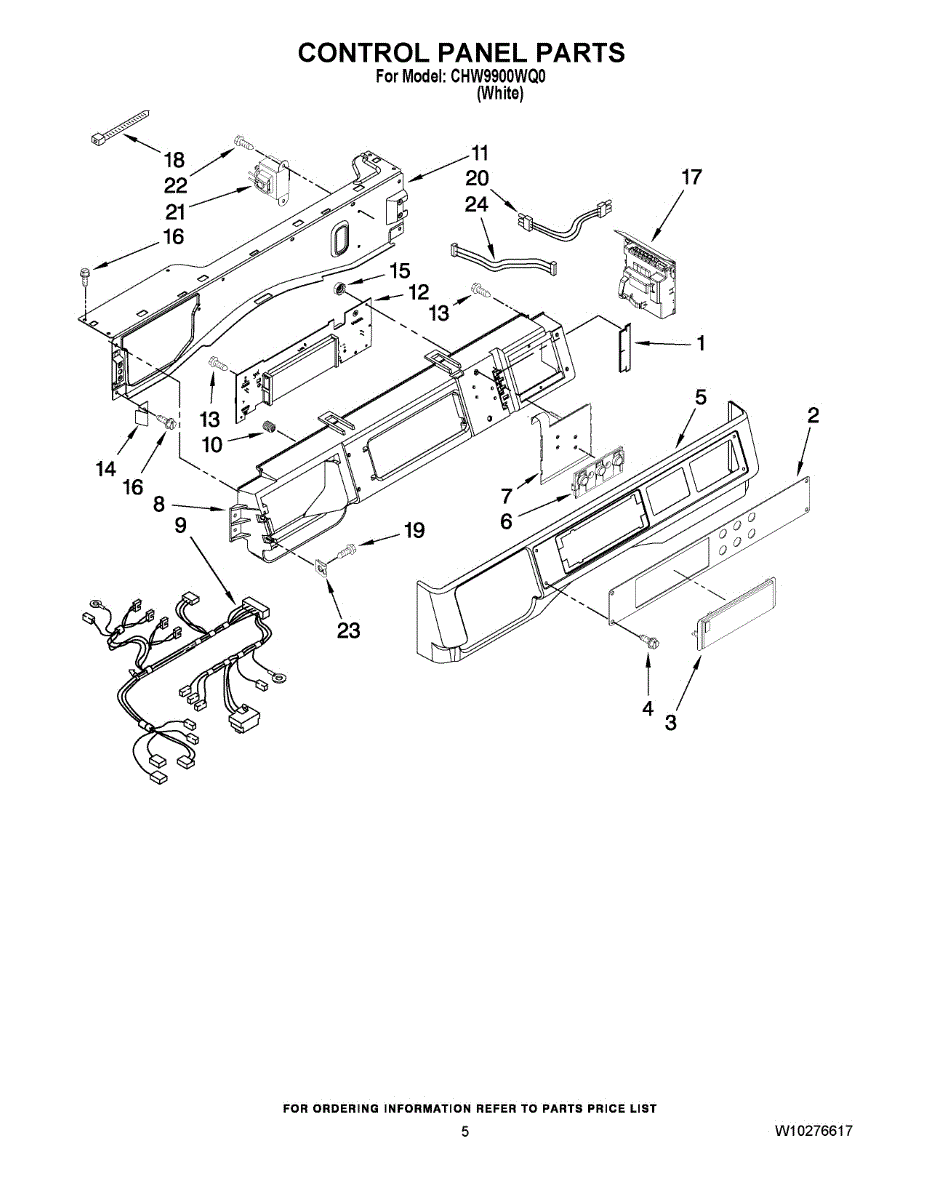

Parts for Whirlpool CHW9900WQ0: 03 - Control Panel Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Control panel overlay for laundry center and washer models. Replace this cosmetic part if faded, cracked, or worn to restore clear labeling and appearance.

This commercial-grade screw secures appliance panels and components to restore proper fit and reduce vibration. Use it to replace a missing, stripped, or damaged fastener and keep parts aligned for safe, stable operation. What it does:

• Fastens panels, brackets, or trim to the appliance chassis
• Prevents rattling or movement caused by loose or missing screws
• Restores secure attachment of control housings and access panels
• Helps maintain proper alignment of parts to avoid wear or interference

• Use the matching driver and do not overtighten to avoid stripping threads
• Replace only with the same screw type and size for secure fit
• Disconnect power and follow appliance safety precautions before servicing
• If threads are damaged, replace the mating nut or insert as needed

Fix unresponsive wash or start buttons with this replacement control panel button. Restores clean, reliable presses when buttons are cracked or worn. Easy DIY fix.

This replacement switch restores dependable on/off control for the specific function it serves in your appliance. It helps resolve unresponsive, stuck-on, or intermittent operation of the associated light, fan, motor, or heating element.

• Opens and closes the circuit to start or stop the designated component in your model
• Failure can cause the function to not turn on, stay on, or work only intermittently
• Address issues like a loose/broken actuator or burnt internal contacts
• Direct-fit replacement designed to accept the original wiring and mounting

• Disconnect power at the breaker or unplug the appliance before servicing
• Note wire positions or take a photo; move wires to the new switch one at a time
• Ensure terminals are fully seated and the switch is securely mounted
• Restore power and test operation before final reassembly

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Size: 8-18 x 1/2 inch.

Fixes washers that won't power on, show dim displays, or lose programmed cycles. This central control unit restores electronic functions. Moderate DIY.

Wire tie secures and organizes internal wiring harnesses in your appliance. Replace if the original tie is broken, cracked, or missing during repairs.

Wire harness for washers. Connects electrical components and control systems. Replace if wires are frayed, damaged, corroded, or connections are loose.

Control transformer that provides stable low-voltage power to the washer's control and user interface, ensuring reliable electrical signaling so cycles start and the machine operates correctly. What it does:

• Supplies the control board and user controls with the required control voltage.
• Restores power to displays, timers, and electronic controls when the transformer has failed.
• Common symptom: machine is dead, display is blank, or cycles won't start.
• Can cause intermittent power or control glitches before full failure.

• Disconnect power before servicing to avoid shock—follow lockout/tagout if required.
• Compare part number and mounting style to the original before installation.
• Handle terminals and wiring carefully; secure all connections and mounting hardware.

This wire harness connects the dryer's control panel and internal components, restoring reliable signal and power routing for normal operation. It replaces a damaged or worn harness to help resolve control failures and intermittent function. What it does:

• Transfers power and control signals between the control/console and internal components
• Commonly used when buttons, lights, or display do not respond or operate intermittently
• Replaces harnesses with broken wires, frayed insulation, or melted connectors
• Helps stop shorting or erratic behavior caused by damaged wiring

• One replacement wire harness as shown

• Disconnect all power (unplug appliance or switch off circuit breaker) before starting
• Label or photograph connector locations before removal to ensure correct reconnection
• Route harness carefully to avoid sharp edges and pinch points; secure with existing clips
• If connectors are damaged, replace them rather than reusing to avoid poor electrical contact

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
