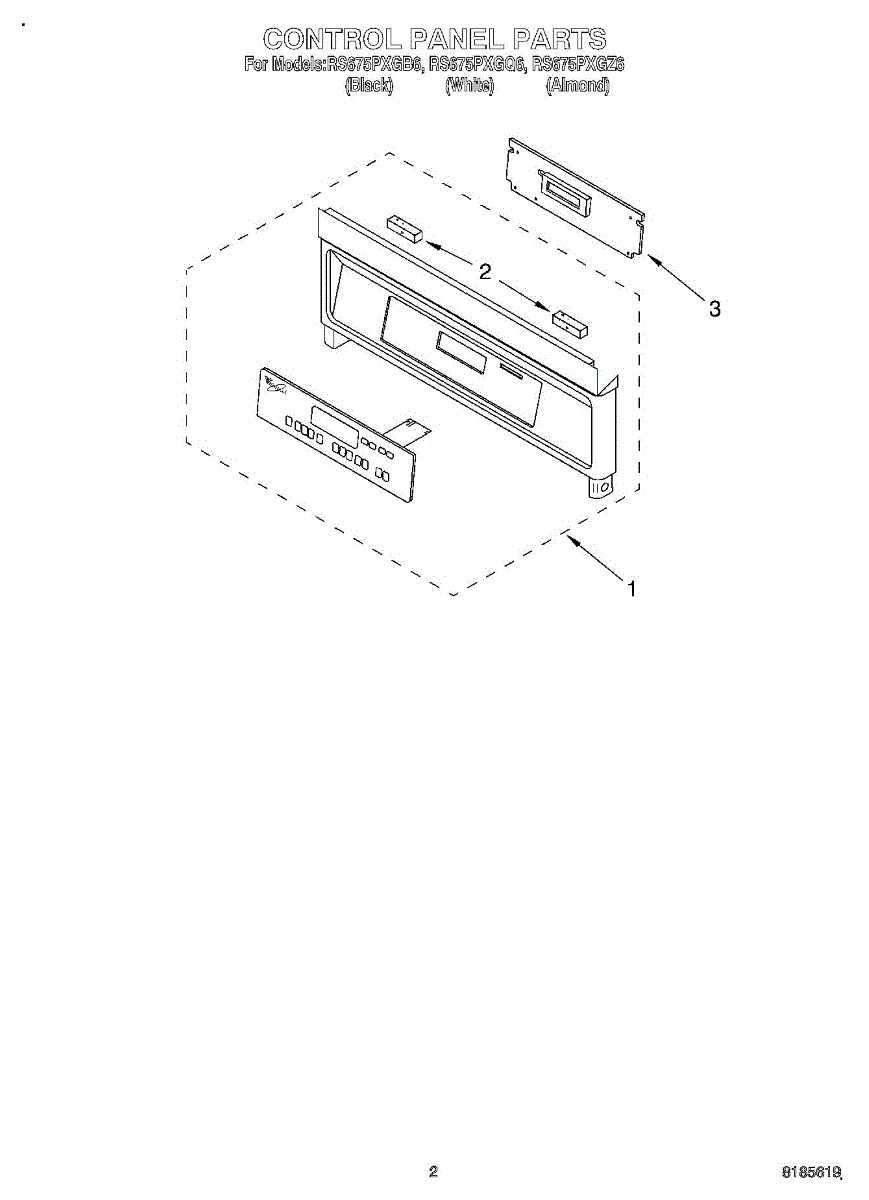

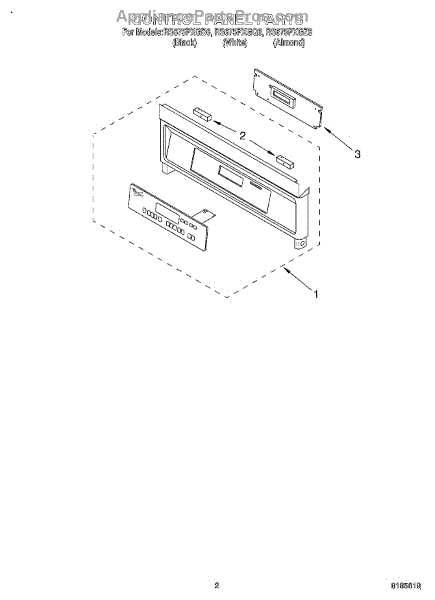

Parts for Whirlpool RS675PXGQ6: 02 - Control Panel Parts

This control panel is the user interface for your appliance, replacing a worn or faulty keypad and display assembly so you can restore reliable control of oven/cooktop functions. It provides the buttons and display that let you set temperatures, timers and modes. What it does:

• Replaces the front user interface that registers button presses and shows settings/status
• Fixes symptoms like unresponsive buttons, missing or flickering display segments, or loss of control functions
• Restores the ability to select cook/heat modes, timers and clock settings through the original front controls
• Works as the electronic interface between the user and the appliance control system

• One control panel user interface assembly

• Disconnect power to the appliance before attempting any service to avoid shock hazard
• Handle display lens and keypad gently to avoid scratches or damage during installation
• Require removal of adjacent trim, screws or the cooktop to access mounting points—refer to the service manual

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Screw for control panel.
