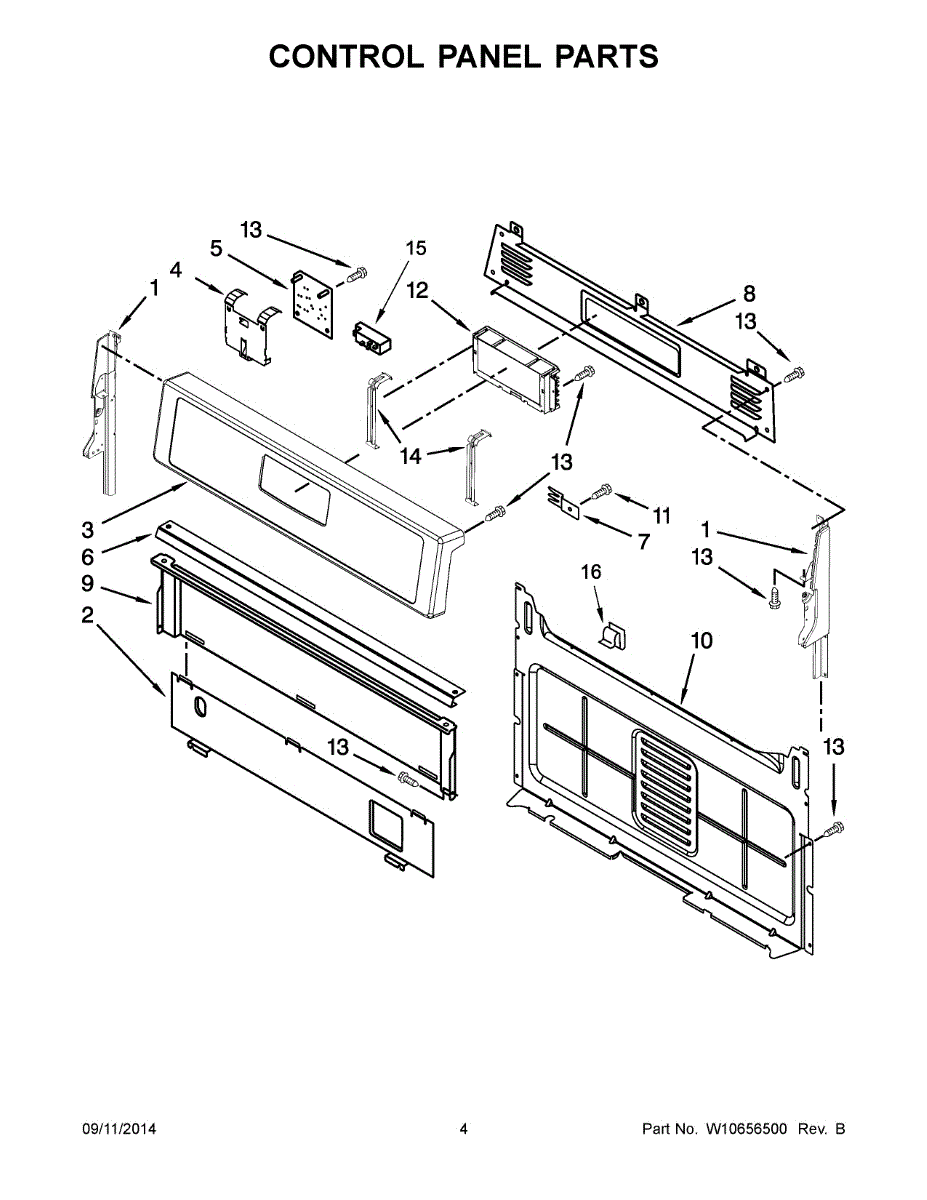

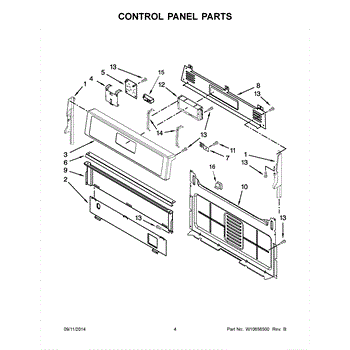

Parts for Whirlpool WFG510S0AB2: 03 - Control Panel Parts

Endcap panel that covers and finishes exposed edges of range control or cabinet panels. Replace if cracked, broken, or missing to restore appearance.

Black left side end cap panel for electric and gas ranges. Replaces cracked, broken, or damaged side trim pieces. Installs on left exterior edge.

Right side end cap panel for ranges in black. Replaces cracked, broken, or missing end panel. Covers and protects the exterior side of your range.

Color: White  Note: Left side endcap

White plastic end cap that covers the right side panel edge of your range. Replaces cracked, broken, or missing endcaps to restore a finished appearance.

Lower heat shield for gas ranges. Protects internal components from heat damage. Replace if cracked, warped, or missing to maintain proper heat distribution.

If your range buttons aren't responding or the display is blank, the control panel may need replacement. This part restores proper operation.

Range won't respond to buttons or display is blank? This control panel houses the interface buttons and display. Moderate difficulty repair in 30-45 minutes.

Fix unresponsive buttons or blank display on your range. This control panel console assembly restores touchpad function and readable controls.

Control panel won't light up or display flashes? This electronic user interface restores cycle selection and settings access. Moderate DIY repair.

This control panel is the front fascia that houses the cycle buttons and indicators on your appliance. Replacing a damaged or unresponsive panel restores reliable selections and a clean, factory appearance.

• Provides the user interface for selecting cycles and options
• Communicates button presses to the control system to start and customize operation
• Covers and protects components while finishing the appliance's front
• Common symptoms: cracked/broken console, worn or sticky buttons, selections not registering, intermittent response

What's included: 1 control panel assembly Installation notes:

• Disconnect power at the breaker before servicing
• Remove mounting screws/clips to release the existing console; support it to avoid straining wiring
• Transfer the user interface module and any brackets from the old panel as needed; avoid pinching ribbon cables
• Reinstall hardware and verify button response before completing reassembly

Fix burners that won't ignite, slow clicking, or repeated sparking. This spark module controls ignition for gas range surface burners and oven.

Support bracket for gas ranges. Secures and stabilizes internal components. Replace if bent, cracked, or broken to restore proper structural support.

Rear cover panel for gas ranges. Replaces cracked, damaged, or missing covers on the back of your range. Restores appearance and protects components.

Metal heat shield that protects range components from direct heat damage. Installs near oven cavity. Replace when original is warped, cracked, or missing.

Rear cover panel for gas ranges. Replaces cracked, broken, or missing rear housing. Restores the finished appearance of your range's back panel.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Fixes unresponsive oven controls, incorrect temperatures, or blank display. This electronic control board manages user interface and bake/broil functions.

Fixes oven that won't start, won't heat, or has blank display. This control board restores temperature control, timer, and all oven functions. DIY repair.

This electronic control board coordinates the oven's heating modes and display. Replacing a failed board restores accurate temperature control and responsive controls so your wall oven or range operates reliably again.

• Regulates bake, broil, and convection outputs based on sensor feedback; failures can cause no heat, temperature swings, or cycles that won't start.
• Manages the display, clock, and keypad interface; faults may leave the controls unresponsive or the display blank or dim.
• Controls self-clean and door lock functions; issues here can prevent locking/unlocking or abort a clean cycle.
• Monitors inputs and relays and can trigger error codes when problems are detected.

• Disconnect power at the breaker before servicing.
• Use anti-static protection and handle the board by the edges.
• Access is typically behind the control panel; label/photograph wiring and move connectors one at a time to the new board.
• After installation, restore power, set the clock, and run a test bake to verify operation.

Fix a flickering display, constant beeping, or unresponsive oven controls by replacing the failed electronic control board. Restores reliable operation.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Secures range components and panels to maintain proper alignment. Replace if your original bracket is cracked, broken, or missing to restore stability.

Burners won't light or spark intermittently? This spark module controls ignition for gas burners. Moderate DIY repair, typically behind control panel.
