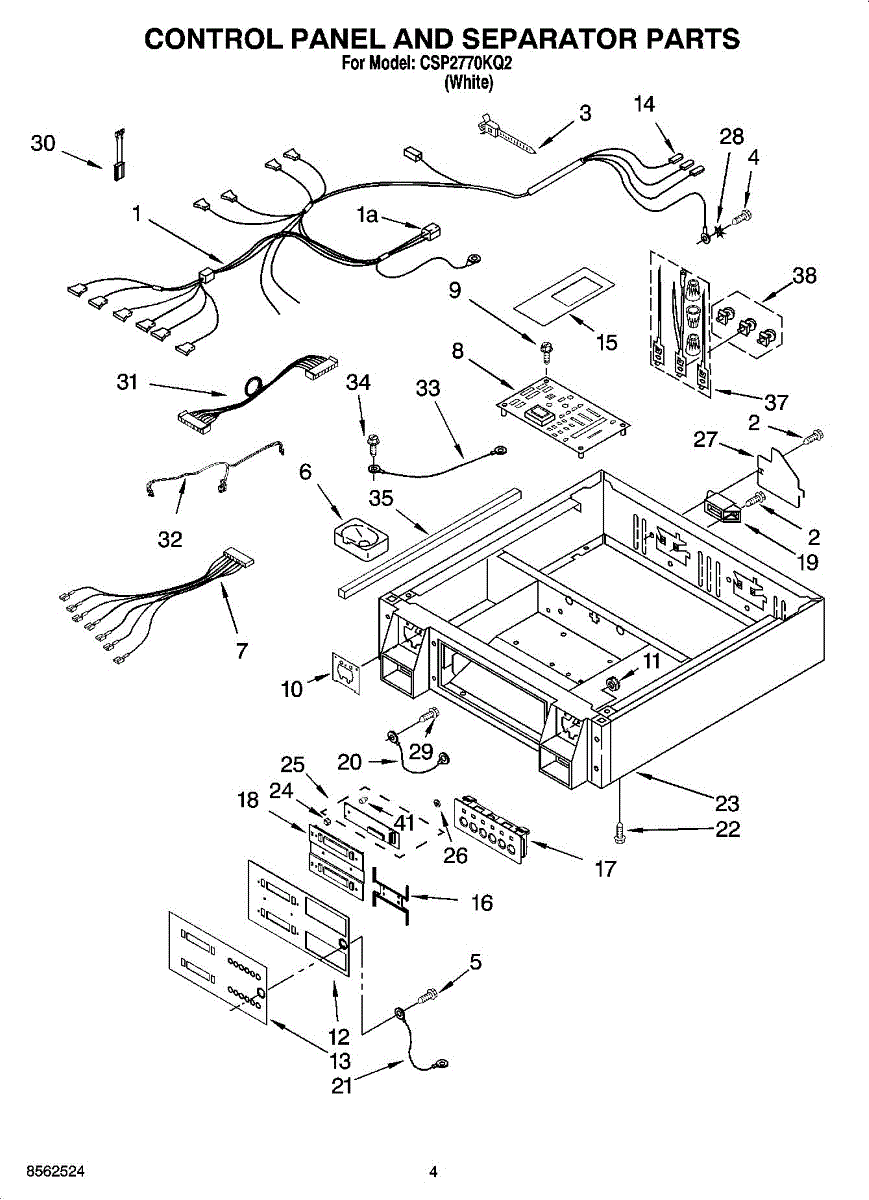

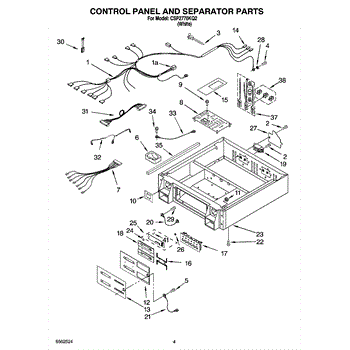

Parts for Whirlpool CSP2770KQ2: 02 - Control Panel And Separator Parts

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

Replacement screw secures panels, brackets, and internal assemblies. Needed when original hardware is stripped, corroded, or missing to keep parts tight.

Screw: 8-16 x 3/8 inch.

Channels coins from the coin slide into the collection box on coin-operated laundry equipment. Replace if cracked, damaged, or missing to restore flow.

Replacement mounting screw for securing panels, brackets, and interior assemblies. Needed when original screw is stripped, missing, or damaged.

Guides dryer airflow from drum to lint screen housing. Replace if cracked, broken, or missing to restore proper air path and contain lint in ductwork.

Size: 10-32

For mating terminal use [AP31136300].

A protective shield designed to cover and protect appliance components from debris, moisture, and incidental contact to help maintain reliable operation and reduce premature wear. Fits specific Whirlpool appliance assemblies. What it does:

• Protects internal components by blocking debris, moisture, and foreign objects.
• Helps reduce wear and prevent shorting or damage to nearby parts.
• Commonly replaced when cracked, broken, or missing after service or impact.
• Restores the original barrier for safe, reliable operation of the affected assembly.

• Disconnect power and water to the appliance before beginning any repair.
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the shield.

Dryer won't heat or stops working? A burnt or melted terminal block disrupts power flow. DIY repair in under an hour with video guidance included.

Replacement machine bolt for securing panels, brackets, and components in dishwashers, dryers, washers, and laundry centers. Restores fit if missing.

This flat washer provides a secure bearing surface for a fastener, helping distribute load and protect mounting surfaces. It helps maintain tight connections so assemblies stay aligned and operate quietly. What it does:

• Distributes bolt or nut pressure to prevent surface damage
• Helps keep fasteners from loosening under normal vibration
• Reduces wear between mating parts for longer life
• Can improve fit and alignment at mounting points
• Reduces noise or rattling caused by loose hardware

• Disconnect power before servicing the appliance and follow all safety instructions
• Replace only with the same style and size washer for proper fit
• Inspect mating surfaces and fasteners; replace any damaged hardware
• Tighten fasteners to the manufacturer's recommended torque; avoid overtightening

This replacement cover restores the appliance's finished appearance and protects internal components from dust and debris. It's a direct-fit exterior trim piece designed to replace a cracked, broken, or missing cover. What it does:

• Protects internal components and wiring from debris and accidental contact
• Restores the appliance's cosmetic appearance and helps maintain sealing
• Helps reduce dust buildup in the covered area
• Replaces damaged or missing trim that can expose sharp edges or hardware

• Disconnect power (unplug or switch off circuit breaker) before beginning work
• Basic hand tools may be required; follow for panel removal/replacement
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Replace with manufacturer-recommended fasteners

Size: 8-32 x .312 inch.

Includes screws and wire connectors. For the complete terminal block kit use 279320.

Dryer won't power on or has loose power cord connection? This terminal block screw kit secures electrical connections. Easy DIY fix in 15 minutes.
