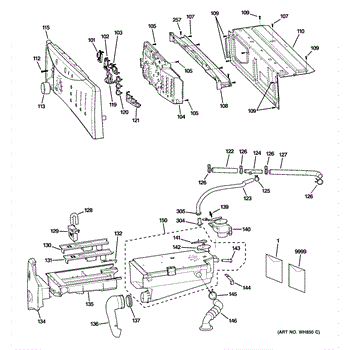

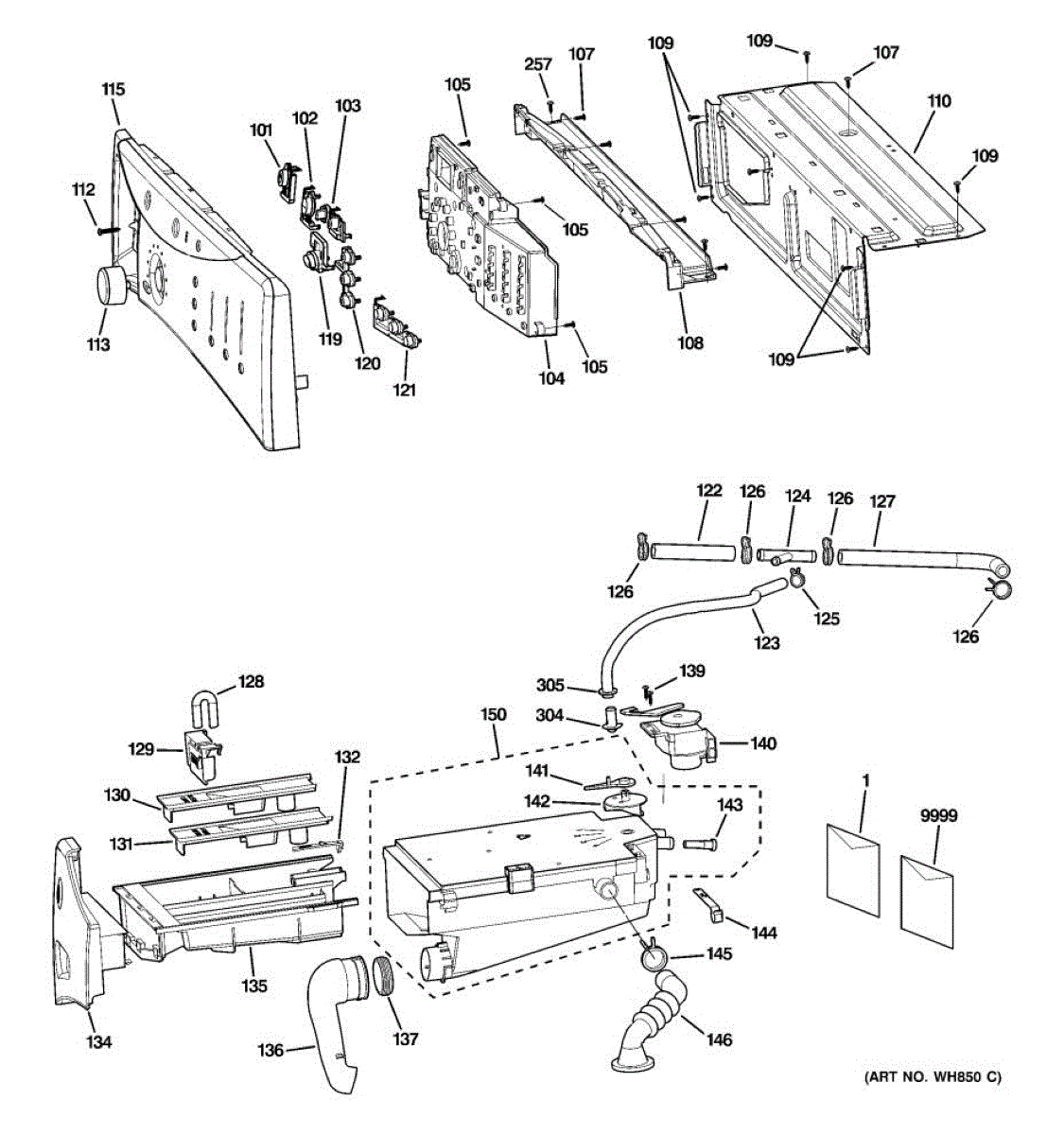

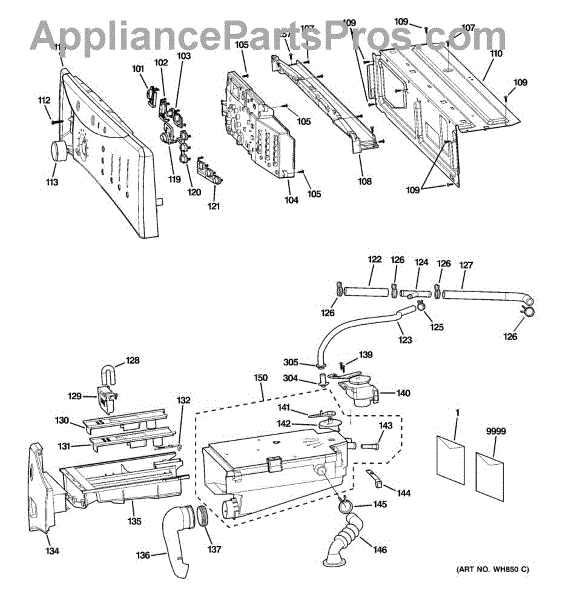

Parts for Ge WCVH6260F0WW: 01 - Controls & Dispenser Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Replacement child lock button for washers. Installs on the control panel. Needed when the button is cracked, broken, missing, or no longer clicks properly.

This part is intended to replace the control board assembly on GE and other various brands of washers. The control board and washer assembly consist of the circuit board that controls the main functions and the dials that toggle those functions. The washer's control board acts as the central mainframe to the appliance. All main functions originate from the control board and allow the user to toggle between all the main settings. If a washer begins to lose some or all of the main functions, it's typically a sign of a control board issue. When the control board fails completely, the washer will cease all operations, and the board will need to be replaced. Beginning at the central control area, remove the faceplate or label area of the controls. It may be necessary to remove the trim before this is possible. Using a screwdriver, remove any anchor screws from the perimeter area of the control assembly. The circuit board will be directly on the rear face of the control assembly and is connected to a wiring harness. Remove the wiring harness and connect the new component. Place the assembly back into its intended housing but do not anchor it with screws until it's been tested to work properly.This part is compatible with GE and Kenmore appliances. It is a genuine OEM part sourced directly from General Electric.

Replacement mounting screw for washers. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

Replacement mounting screw for washer pedestals. Secures pedestal to washer base. Order if original screw is stripped, missing, or damaged.

Front top mounting bracket for your washer. Secures the top panel to the cabinet frame. Replace if cracked, bent, or missing to restore stability.

Replacement self-tapping screw for securing panels, brackets, and small components on washers. Needed when original fasteners are missing or damaged.

Replace your washer's rinse button control. Installs on the control panel. Needed when the original button is cracked, broken, or missing.

Secures multiple small pipes to reduce vibration and prevent chafing. Replace if cracked, loose, or causing rattling. Confirm fit with your model.

Siphon pipe for washer drain air-break assembly. Prevents backflow and unintended siphoning. Replace if cracked, broken, or missing from detergent dispenser.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Replacement lid for washer bleach dispenser compartment. Keeps bleach contained during fill cycle and prevents spills. Order if cracked, missing, or broken.

This diverter valve directs wash water inside the machine, switching flow between internal paths during wash and drain/recirculation steps. Replacing a failed diverter restores proper water routing so cycles advance and complete as designed.

• Redirects water between the drain and recirculation/spray paths as commanded by the control
• Ensures correct water flow for wash, rinse, and drain steps
• A sticking or failed diverter can cause slow/no drain or no recirculation/spray
• May lead to cycle pauses/errors, unusual clicking/buzzing from the valve area, or leaks at the valve body/ports

• Unplug the washer and turn off water supply; expect residual water in hoses
• Access location varies by model; typically mounted along the pump/hoses under the cabinet
• Move hoses/clamps and the electrical connector one at a time; match port orientation
• After installation, run a rinse/drain test and check all connections for leaks

Diverter indicator for washers. Indicates water flow direction during wash cycles. Replace if cracked, broken, or no longer functioning properly.

Replacement diverter lever plate for your washer. This mounting plate secures the diverter mechanism. Order a new plate if yours is cracked or broken.

Dispenser inlet nozzle for washers. Connects to the detergent dispenser housing. Replace if cracked, clogged, or leaking during wash cycles.

Secures the detergent dispenser in your washer. Replace if the dispenser is loose, leaking, or not staying in place. Verify fit with your model number.

This Main box is the control housing that holds and protects the range/stove electronic components and wiring, keeping controls secure and organized for reliable operation. What it does

• Houses the main control electronics and wiring harness connections to protect them from heat and debris
• Provides secure mounting for the control board and user interface components
• Faulty or cracked housing can cause loose connections, intermittent controls, or visible damage to electronics
• Replace if the housing is cracked, melted, or no longer secures the control board properly

• One main box / control housing

• Disconnect power to the appliance before starting any repair
• Handle electronic components carefully and avoid static discharge; transfer any control board or harnesses exactly as removed
• Secure all fasteners; do not force parts into position
• After installation, restore power and test all functions; stop and re-check wiring if controls remain unresponsive

Self-tapping screw for securing washer components and panels. Replace worn, stripped, or missing screws during repairs or reassembly of your machine.

This gasket nozzle washer is a small rubber seal that fits at a spray/nozzle connection to help prevent leaks and ensure proper water flow. Replacing a worn gasket restores a secure seal and reduces dripping or pooling. What it does:

• Seals the connection at a spray nozzle or outlet to help stop leaks
• Maintains correct water flow through the nozzle for effective spraying
• Commonly replaces hardened, cracked, or flattened gaskets that allow dripping
• Helps eliminate minor water pooling or visible leaks near the nozzle area

• Turn off power and water supply to the appliance before servicing
• Remove the nozzle or fitting per the manufacturer's instructions; replace the old gasket with the new washer, ensuring it seats evenly
• Inspect mating surfaces for debris or damage before reinstalling

Stacking kit mounts your dryer securely on top of your washer to save floor space. Includes brackets and hardware. Replace if missing or damaged.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
