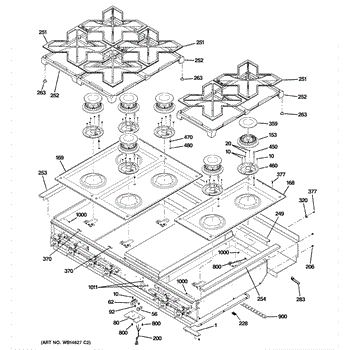

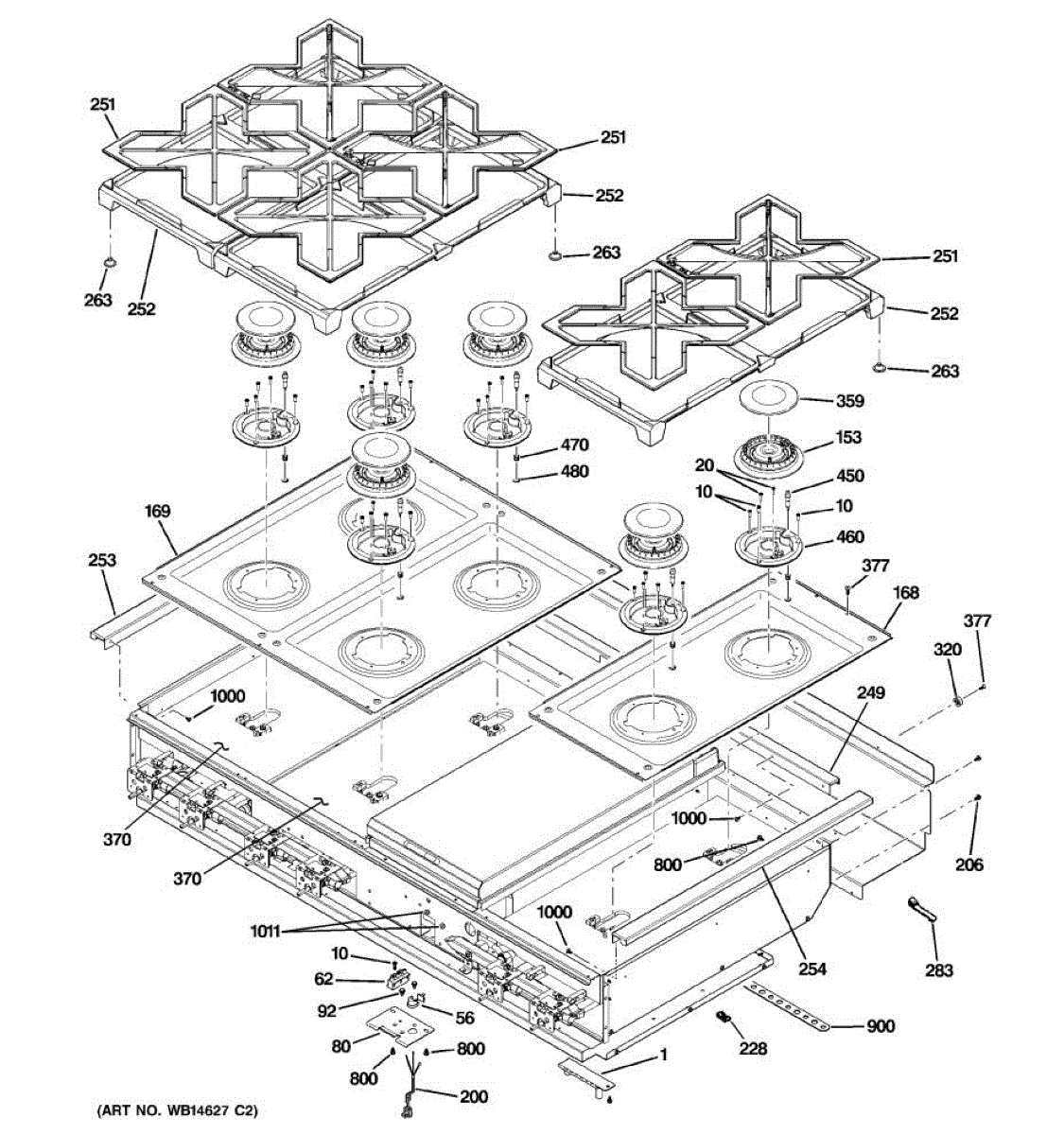

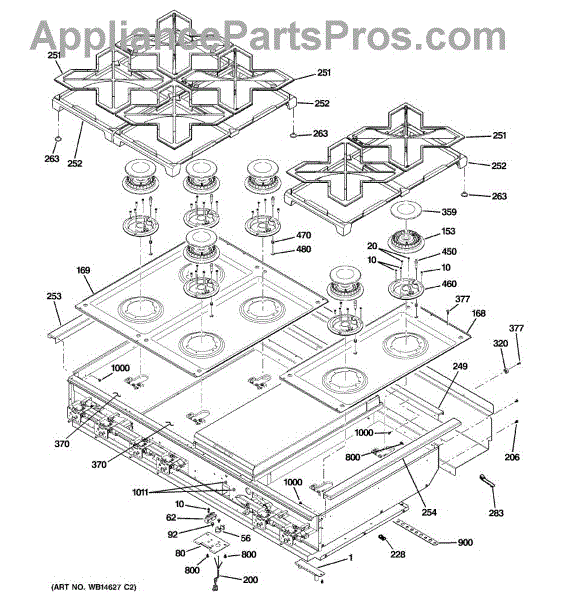

Parts for Ge ZGU486NDP2SS: 03 - Cooktop Parts

Burner orifice carrier assembly for gas cooktops and ranges. Holds and positions the gas orifice. Replace if cracked, damaged, or improperly seating.

Specs: 8-32 MCH PNT15

Replacement mounting screw for gas cooktops and ranges. Secures cooktop components in place. Order a new screw if yours is stripped, missing, or damaged.

Range display lights flickering or completely dark? This LED power supply module converts voltage to power your control panel lighting. Moderate DIY repair.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Burner head for gas ranges and cooktops. Sits on top of the burner base to distribute flame. Replace if cracked, corroded, or clogged with debris.

Replacement drip pan that installs under your cooktop burner to catch spills and crumbs. Needed when original pan is cracked, warped, or missing.

Metal main top panel for gas ranges and cooktops. Replaces cracked, dented, or worn surface panels. Essential structural component for restoring appearance.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Cast iron burner grate for gas cooktops and ranges. Supports pots and pans over the flame. Replace if cracked, warped, broken, or missing for safe cooking.

Cast iron support frame that sits beneath range grates to support pots and pans during cooking. Replace if cracked, broken, or damaged from heavy cookware.

Side trim panel assembly for cooktops. Replaces cracked, broken, or missing exterior trim pieces. Installs along the side edge for a finished look.

Side trim panel for cooktops. Installs along the outer edge to provide a finished appearance. Replace if cracked, chipped, discolored, or missing.

Cushions and stabilizes burner grates on your gas range or cooktop. Replace worn or missing feet to stop wobbling, reduce rattling, and protect surfaces from scratches. Confirm fit by model number.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Cushions and secures your range or oven door handle to the door surface. Replace if cracked, worn, or missing to eliminate handle rattling and restore snug fit.

Replacement burner cap for 18K high-output burners. Sits atop the burner head to shape and distribute the flame. Replace if cracked, chipped, or worn.

Single fastening screw for range components. Replaces missing, stripped, or damaged screws that secure panels, brackets, and trim pieces in place.

Fix a gas burner that won't light or keeps clicking constantly. This spark electrode ignites your burner. Easy 15-minute DIY repair for most ranges.

Burner base mounts beneath the burner cap on gas range cooktops. Replace if cracked, corroded, or damaged to restore proper burner alignment and appearance.

Secures the igniter in its mounting bracket on gas ranges and cooktops. Replace if spring is missing, broken, or worn to restore proper igniter positioning.

Secures the spark igniter to the burner base for reliable ignition. Replace if burner won't light or spark is weak. Verify fit with your model.

Mounting screw hardware for ranges and cooktops. Replace missing, stripped, or corroded screws used to secure panels, brackets, or components.

Hold down bracket secures gas cooktop components in place during operation. Replace if bracket is bent, cracked, or missing to restore proper mounting.

Stainless steel #8-18 x 3/8" screw secures panels, brackets, and components in ranges, cooktops, and ovens. Replace if stripped, missing, or corroded.

A single 6-32 keps nut that secures panels and components by combining a hex nut with a captive lock washer for vibration-resistant fastening. Fits standard 6-32 machine screws to restore proper fastener function and fit. What it does:

• Provides a secure threaded connection for 6-32 screws where a built-in lock washer prevents loosening.
• Commonly used to fasten panels, brackets, and small components prone to vibration.
• Replaces missing, stripped, or damaged nuts causing loose panels, rattling, or misaligned parts.
• Works with standard 6-32 threaded hardware in appliance assemblies.

• One keps nut (6-32).

• Unplug or disconnect power before working on the appliance.
• Hand-start the nut on the screw to avoid cross-threading, then tighten with the appropriate wrench or socket.
• Do not overtighten; stop when snug and the captive washer seats against the surface.
• If threads are damaged, replace the mating screw or repair the threads before installing.
