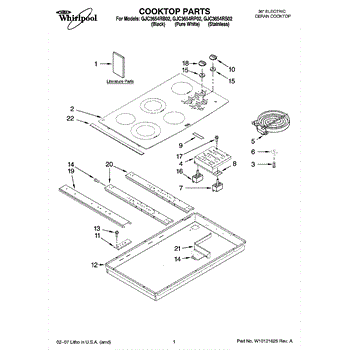

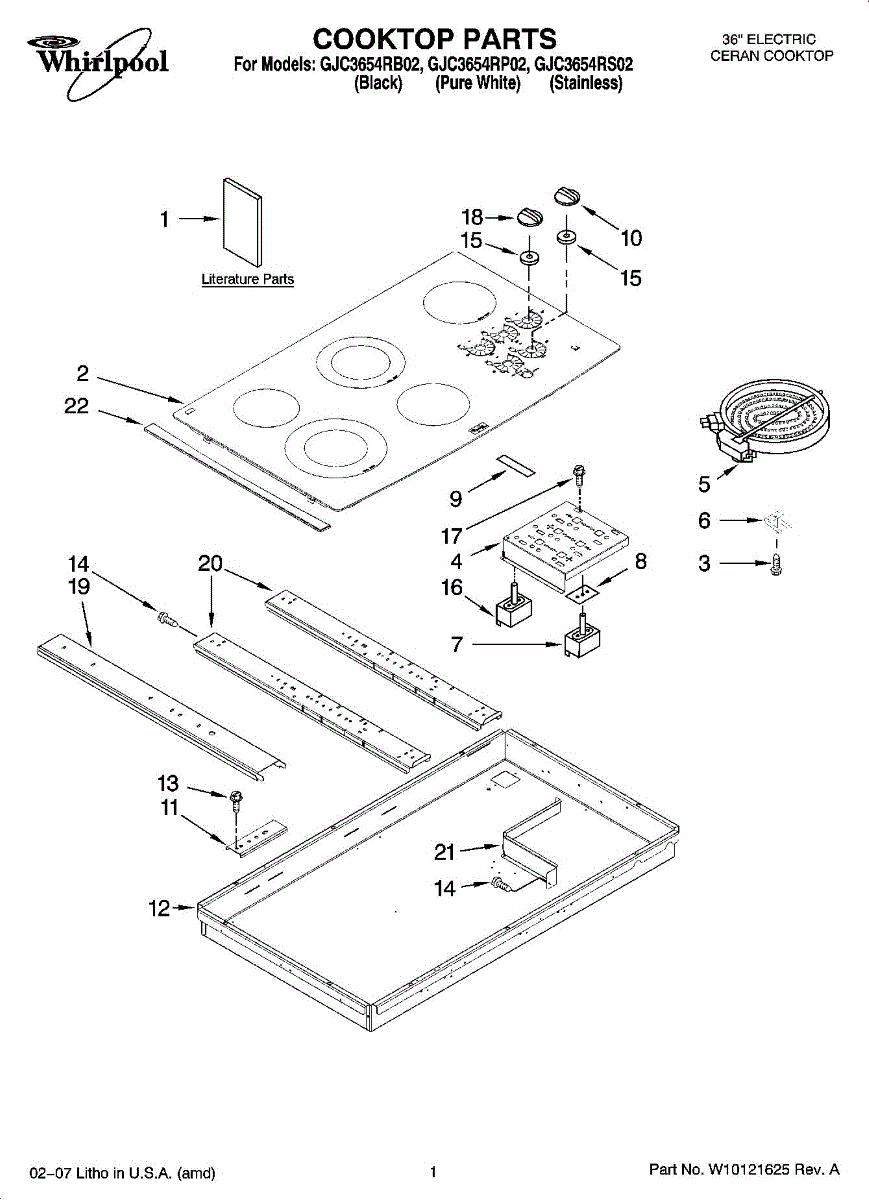

Parts for Whirlpool GJC3654RS02: 01 - Cooktop Parts, Optional Parts

Size: 6-32 x 3/8 inch.

Replace a weak or failed warming zone that won't keep food at serving temperature. This surface element restores low, steady heat to your cooktop's warming zone.

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Burner not heating or 'Hot Surface' light stays on? This electric cooktop surface element is likely the fix. DIY-friendly, most installs take 15 minutes.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

Replacement tension spring for cooktop assemblies. Restores proper tension for moving components. Order when original is stretched, broken, or missing.

Fix a burner that won't heat or has no temperature control by replacing this 6-inch element switch. Restores smooth low-to-high heat adjustment in 30 minutes.

Burner stuck on high heat or won't regulate temperature? This infinite switch controls heat levels on your cooktop. DIY repair in 20-30 minutes.

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

Protects cooktop switches from moisture and debris that cause shorting and corrosion. Replace if damaged, missing, or when installing new switches.

White control knob for cooktop. Replaces worn, cracked, or missing knobs. Fits onto splined control shaft for reliable temperature adjustment.

Black control knob for electric cooktop burner switches. Replaces cracked, stripped, or missing knobs. Attaches to infinite switch shaft for heat control.

Hardware kit with screws and brackets to secure cooktop components. Replaces worn, missing, or damaged mounting fasteners for proper fit and stability.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Centers and cushions control knobs while sealing against spills that can damage switches. Replace if knobs wobble or spills leak underneath. Verify fit.

Fix burners stuck on high or won't adjust temperature with this selector switch. Restores reliable control of cooktop functions. Moderate DIY repair.

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Black control knob for AccuSimmer burners on select cooktops and ranges. Replace when original knob is cracked, stripped, loose, or missing to restore control.

Black control knob for AccuSimmer burners on select cooktops and ranges. Replace when original knob is cracked, stripped, loose, or missing to restore control.

Support bracket for electric cooktops. Secures and stabilizes cooktop components. Replace if bracket is bent, cracked, or broken to restore proper support.

Hardware kit for securing cooktop to countertop. Includes mounting brackets and fasteners. Replace if brackets are bent, screws stripped, or missing.

Replace your cracked or worn right-side trim wing on glass cooktops. Restores the finished edge, improves appearance, and protects against spills.

Seals cooktop to countertop, preventing gaps and noise. Replace when installing or reinstalling your cooktop. Verify fit with your model number.

This wire harness assembly routes power and control signals between appliance components to restore electrical connections and enable normal operation. It replaces a damaged or burned harness to help eliminate intermittent power, control, or start issues. What it does:

• Carries power and signal connections between control board, switches, sensors, and motors
• Replaces frayed, burned, or broken wiring that can cause intermittent operation or complete failure
• Resolves symptoms such as appliance not starting, control panel unresponsive, or components failing to power
• Restores factory wiring routing and connector fit for a secure electrical connection

• Disconnect power before beginning any repair to avoid shock or injury
• Verify connector orientation and routing match original harness before securing
• Inspect mating connectors and components for damage; replace any that are corroded or burnt

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Size: 25ft, 12 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft,14 Ga., 200 c Brown

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
