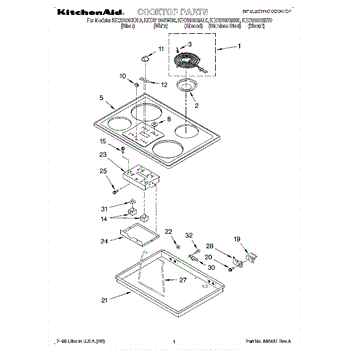

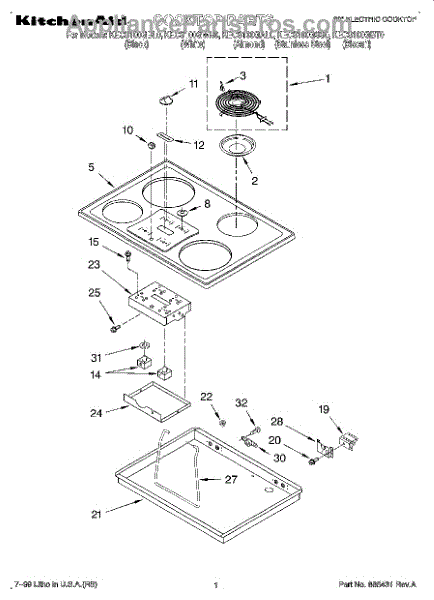

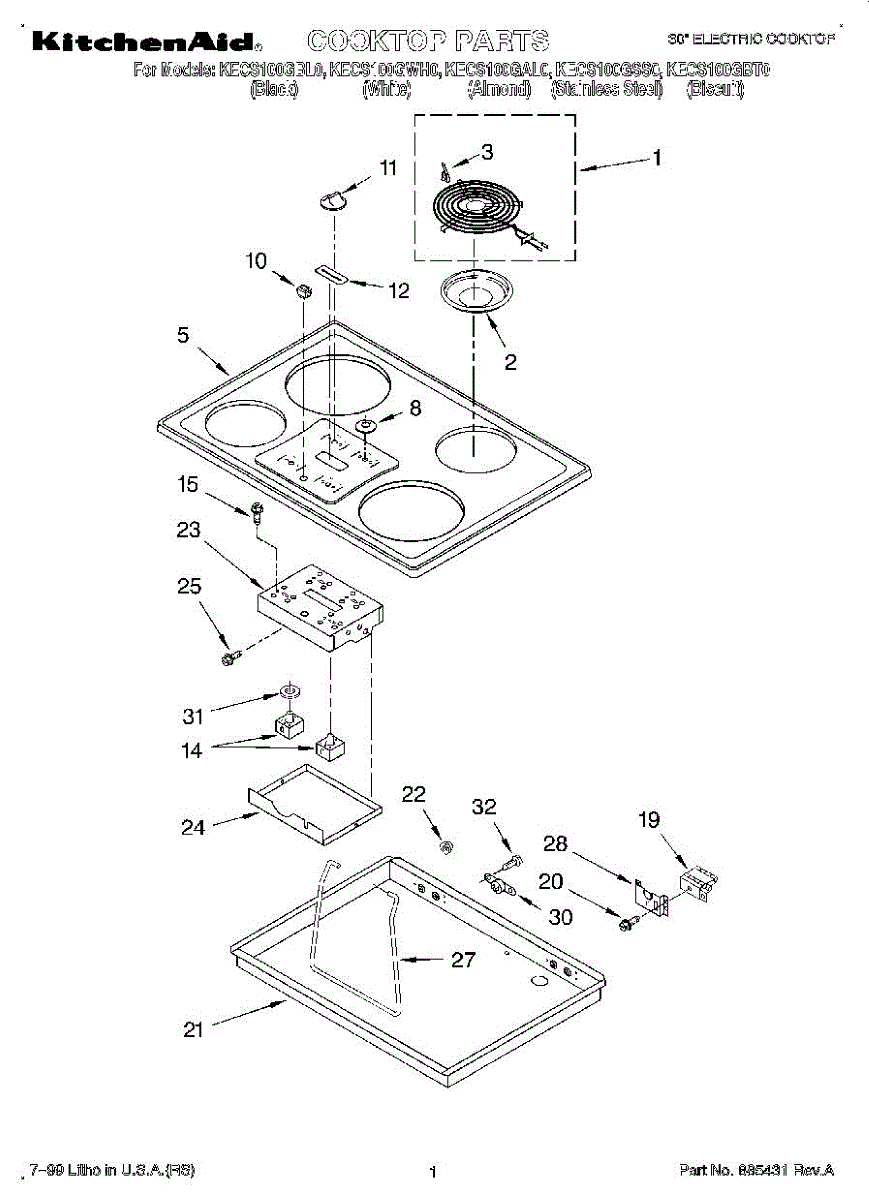

Parts for Kitchenaid KECS100GAL0: 01 - Section Parts

2600w. Size: 8 inch. Location: Right front.

Replace a burner that won't heat or heats unevenly with this 6-inch surface element. Compatible with electric ranges and cooktops. DIY-friendly install.

Burner not heating or heating intermittently? This 8-inch surface element restores your cooktop. Easy DIY repair—just unplug the old, plug in the new.

Drip pan installs under range burners to catch spills and grease. Replace if cracked, warped, corroded, or heavily stained for a clean cooktop.

The Drip Pan (LG) is an OEM replacement part for Whirlpool ranges and ovens. It is a durable metal tray designed to catch any spills, drips, or boil-overs that may occur during the cooking process, helping to keep the oven cavity clean and preventing potential messes or smoke from burnt-on spills.

Symptoms of needing to replace the drip pan include:

• Warping or discoloration from excessive heat exposure
• Cracks or breaks in the pan material
• Difficulty sliding the pan in and out of its designated position

Causes of a drip pan failure can include general wear and tear from repeated use and high temperatures, physical damage from impact or abrasion, or corrosion or deterioration due to exposure to acidic food spills or cleaning agents.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For 6-inch drip bowl order W10196406RW

Replace missing or worn element clips if your range burner shifts, sags, or won't stay positioned. This spring clip secures the heating element to its bracket.

Size: 10-24 x 2.5 inch.

Color: Black.

Color: Biscuit.

Color: Almond.

A 240V indicator light that signals when a high-voltage heating circuit is active, helping you confirm element or oven status at a glance. Fits the original control assemblies that use a panel-mounted signal lamp. What it does

• Illuminates to show the related 240V heating circuit or element is powered.
• Helps diagnose heating issues by indicating whether power is reaching the control or element.
• Visible on the front control panel for quick status checks during operation.
• Designed for direct replacement of the panel-mounted indicator lamp.

• Disconnect power at the breaker before accessing the control panel or wiring.
• Handle the lamp and lens carefully to avoid damage; use proper replacement tools.
• Verify correct function after installation by restoring power and observing the indicator during a heat cycle.

Color: Almond.

Replace a cracked, broken, or missing control knob on your electric range or cooktop. This biscuit-colored knob installs on the control panel.

White control knob for electric cooktop burners. Replaces cracked, broken, or missing knobs. Installs on the front control panel for burner operation.

Color: Black. Measures about 2 inches in diameter. Other colors: For white use WP9750372FW, for biscuit use WP9750372FC.

Color: White.

Color: Almond.

Color: Biscuit.

Color: Black.

Burner only works on high or won't heat properly? This infinite switch controls temperature settings for electric cooktop elements. DIY-friendly repair.

Burner won't turn off or heats incorrectly? This 8-inch infinite switch controls power to your cooktop burner. Moderate DIY repair, 30 minutes.

Fix a burner that won't turn off, stays on high, or won't heat. This infinite switch controls your cooktop element's power. Moderate DIY repair.

Size: 8-32 x 1/4 inch.

Appliance won't start or trips breaker? This ground screw secures the grounding conductor to the chassis for safe electrical connection. Simple fix.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification

Size: 6-32 x 3/8 inch.
